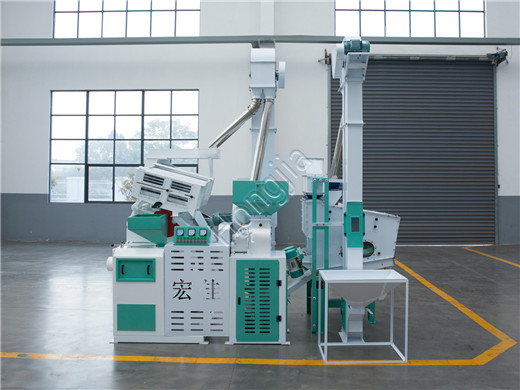

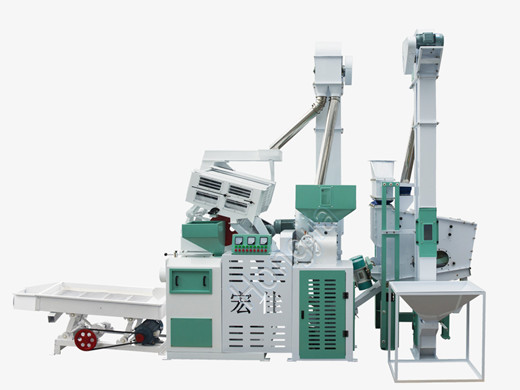

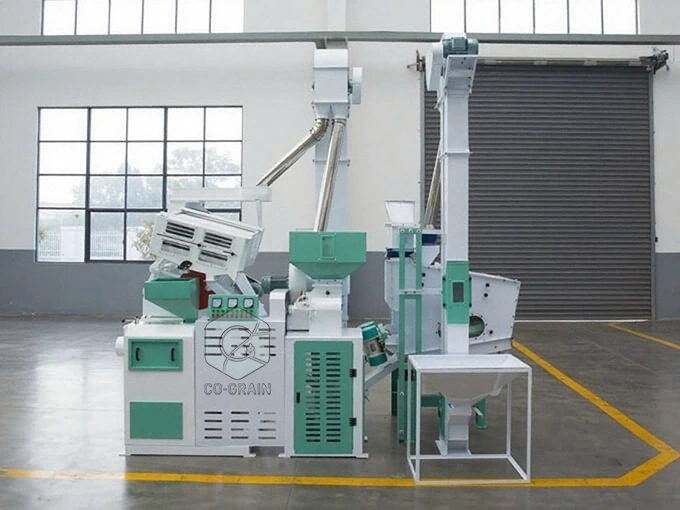

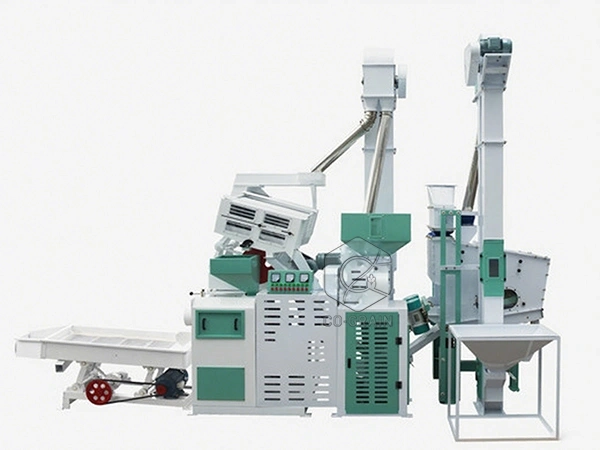

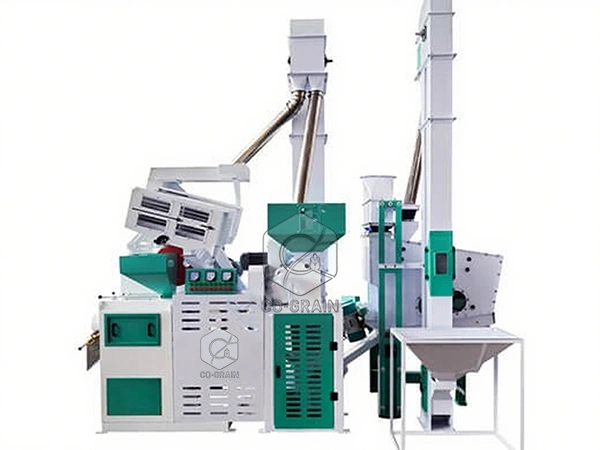

New 30T/D Standard Rice Mill

  • Capacity: 30 T/D
  • Power: 31.9 Kw
  • Service: Customization, installation, guidance, and training
  • Cooperation: Factory Directly

Our newly design 30T/D complete modern rice mill is an auto modern rice milling plant that consists of a whole set of rice milling machines. It can process paddy rice into national standard white rice just in one process.

New Type 30T/D Modern Rice Mills Introduction

Our newly design 30T/D complete modern rice mill is an auto-modern rice milling plant that consists of a whole set of rice milling machines. It can process paddy rice into national standard white rice in one process. This 30T/D modern rice milling machine is suitable for the middle-scale rice milling process, which can process about 40-42ton paddy per day and get about 1200-1500kg of white rice per hour. And the capacity and the machines in the rice mill equipment can be customized to your special requirement. So it’s the most ideal rice processing equipment for urban, rural, small, and medium-sized rice processing plants.


This modern rice milling machine contains the rice cleaning machine, rice de-stoner machine, rice hulling machine, paddy rice separator machine, rice mill machine, rice grading machine, etc. It is automatic working, convenient to operate and use, and widely used in small or medium-sized rice mill factories.

Make a Quick Inquiry Now !

New Type 30T/D Standard Rice Mill Plant Working Process

The 30T/D standard rice mill plant can process paddy into national standard rice just in one process at the following flow chart: Raw material feeding-Vibrated cleaner & Destoner → Rice Husker→Paddy Rice Separator → Rice Mill → Standard White Rice, Then the rice can be on market for sale.

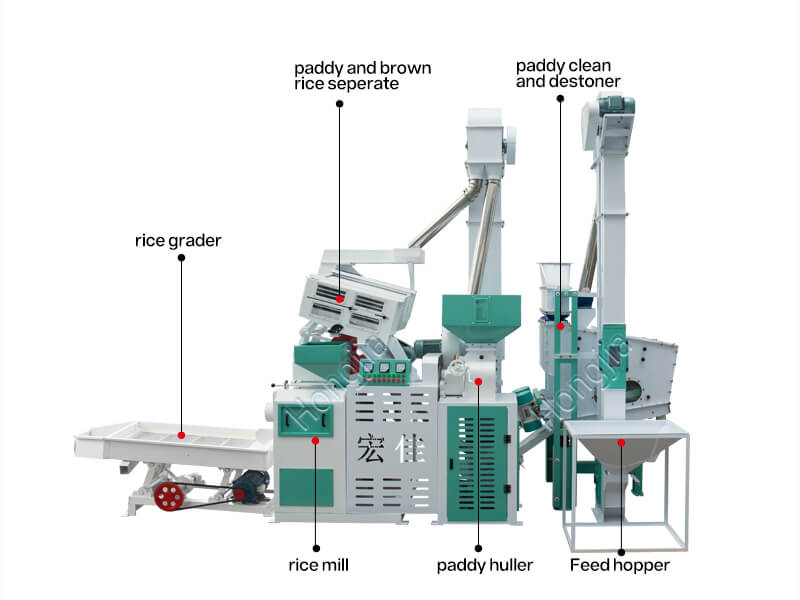

New Type 30T/D Standard Rice Mill Plant Structure

This 30T/D modern rice milling machine is a standard automatic rice production line, which includes the main process of paddy cleaning, stone removal, rice separating, rice hulling, rice milling, etc. With one set of rice mill machines, you can get standard rice. Therefore, this type of rice milling equipment is very popular. Welcome, contact us for the details.

Make a Quick Inquiry Now !

Modern Rice Milling System Consists Of:

Combined Paddy Cleaner: removing all impurities and unfilled grains from the paddy;

Rice Hulling Machine: a rice huller or paddy husker is an agricultural machine used to automate the process of removing the chaff (the outer husks) of grains of rice.

Paddy Separator: it is mainly used for separating brown rice from paddy making use of their differences in specific gravity and friction coefficient in three parts: paddy, brown rice, and a mix of both.

Rice Milling Machine: the rice whitening machine is developed for rice whitening, which is an advanced technology of the world rice mill whitener at present to make rice temperature down, bran content less, and broken increment lower.

Broken Rice Sieve: to separate the good rice and the broken rice.

1Single elevatorTDTG20/111.1
2Combined cleaner destonerZQS700.5
3Centrifugal fan4-723
4Double hoist elevatorTDTG18/08*21.1
58 inches rubber roller hullerLG-205.5
6Paddy rice separatorMGCZ80*71.1
7Sand roller rice millMNMS15B18.5
8broken rice screen 0.37

Optional Equipment:

Rice Polishing Machine: rice polishing machine, polishes the rice surface by spraying water, which facilities the formation of a smooth gelatinous layer that prolongs the preservation time. Extended polishing chamber to produce high-quality rice

Rice Color Sorter: the rice color sorting machine is used to sort bad, milky, Chalky, Paddy, and foreign materials out. The CCD signal while blanking is been tested. If it is found that there are unqualified rice or impurities in the materials, the ejector will blow the defective goods in the hopper.

Rice Grading Machine: the rice grader can sieve milled rice efficiently and accurately into several classes: head rice, large broken, medium broken, small broken, etc.

Rice Packing Machine: rice weighing and bagging: preparing milled rice for transport to the customer.

If you need a complete rice mill production line, including a rice polisher, rice grader, rice color sorter, rice packing machine, etc, we also can supply you with the machine and design it for you according to your needs.

Make a Quick Inquiry Now !

New Type 30T/D Standard Rice Processing Mill Details

1. Unique Combination of Paddy Cleaning Machine

With the combination of clean, and de-stone design, the use effect is much better than the traditional one-piece design. Large air volume design, excellent stone removal effect, combined with high-strength vibration-absorbing bearing configuration, the body movement is stable, firm, and reliable, low vibration, low noise, less dust;

The stone removal part adopts the design of large air volume and suction, with large air volume and good stone removal effect;

The cleaning part adopts a multi-layer drum screen mechanism, which has high cleaning efficiency and clean-up, so it can remove fine impurities and stones;

A square rotation screen for the destoner machine will make the paddy cleaner;


2. Strong Pull Wind Emery Roller Rice Mill

Equipped with a separate strong wind blower to clean the rice bran more thoroughly, make the rice cleaner, and effectively improve the gloss of the rice;

Lower the temperature of the rice, thereby effectively reducing the rate of broken rice;

The operation height is reduced, the operation is more convenient, and the daily maintenance is convenient.


3. Stable Gravity Paddy Separator

Our gravity paddy separator has a large screen surface design, which has the excellent advantages of fast separation speed and uniform distribution;

The horizontal and vertical angles of the screen surface can be adjusted, so it is suitable for different types of rice;

Low broken rice rate;


4. Efficient Shell-Breaking, Low-noise Rice Hulling Machine

One-time shell breaking rate> 90%;

Long life of rubber roller;

Convenient operation and adjustment, high transmission efficiency, low noise, and good stability.


5. Independent Rice Bucket Elevator Design

The bucket elevator of each set of rice milling machines is separate and every rice bucket elevator has a separator motor base so that the power is more sufficient, the output is larger, and the maintenance is convenient.


6. Broken Rice Sieve

To separate the good rice and the broken rice effectively.


7. Multi-function Control Cabinet

Integrate a variety of control buttons, easy to operate;

Current overload protection device to protect your electrical rice mill machine safe and stable;

Make a Quick Inquiry Now !

30T/D Modern Rice Mill Machine Features

1. Fully automatic rice production line, less power consumption

2. Compact structure, nice performance, small volume

3. Modern design and high-efficiency output

4. Low noise and less consumption

5. Easy to operate and maintain

6. Output rice with high quality, low broken rate

7. Reasonable price

30T/D Modern Rice Mill Machine Features

This hot sale 30T/D modern rice milling machine is professional in paddy rice processing, it can process different shapes of paddy rice such as long shapes, and round shapes, and it also can process the parboiling paddy rice and paddy rice directly, with a low broken rate and high rice yielding.
