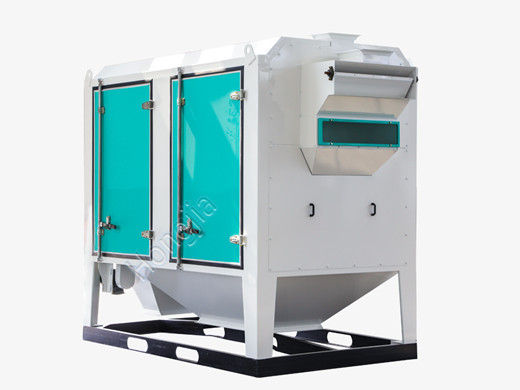

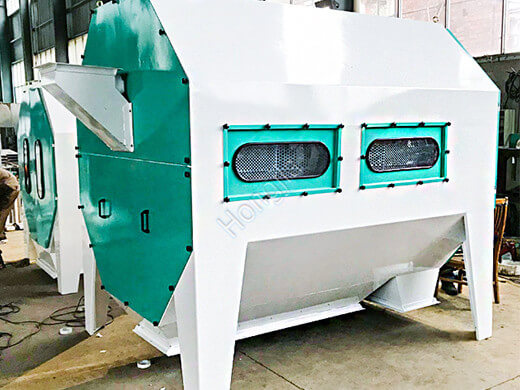

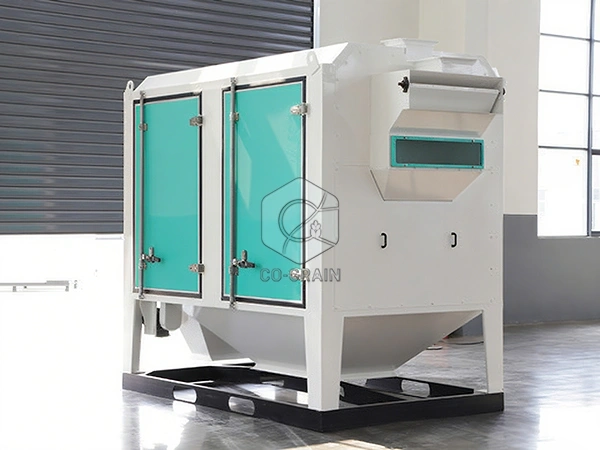

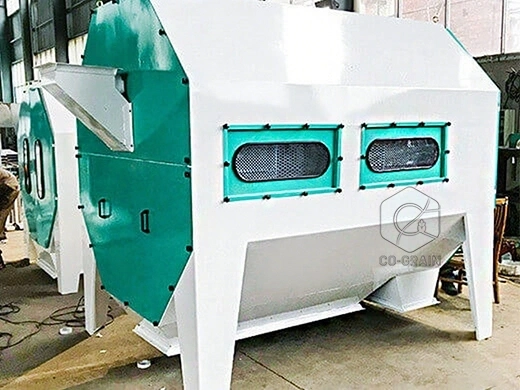

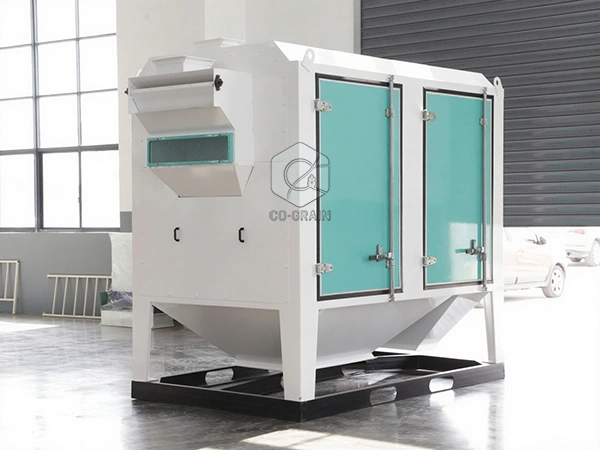

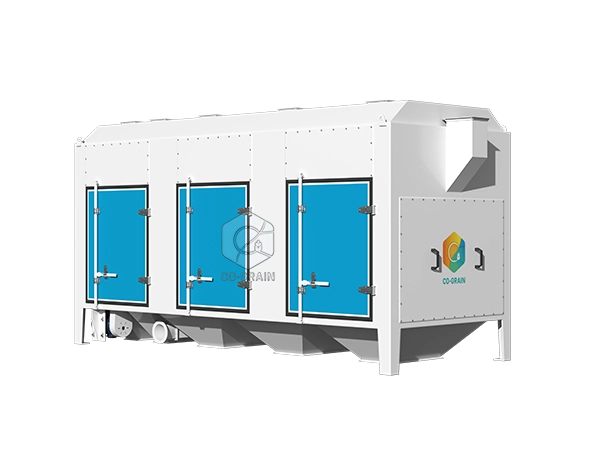

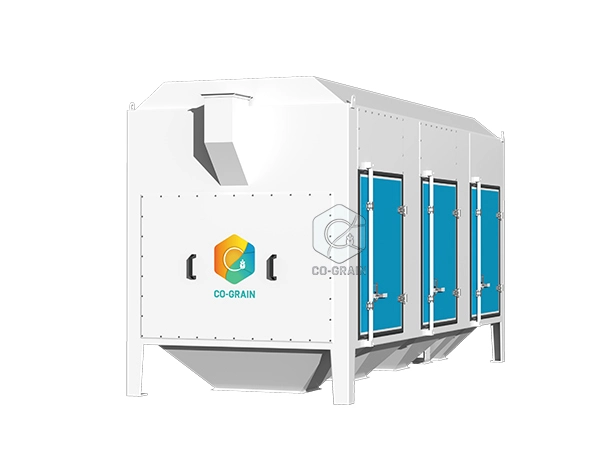

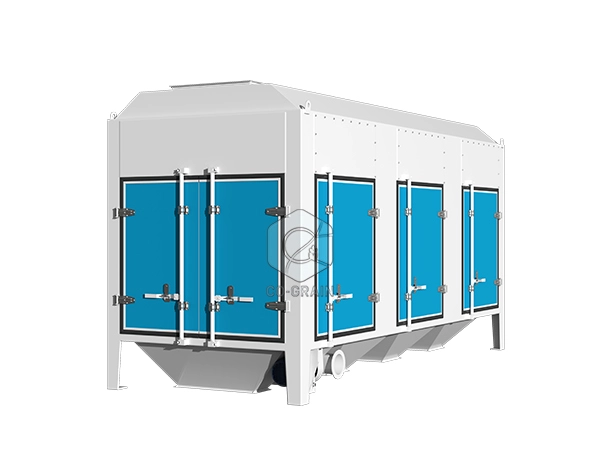

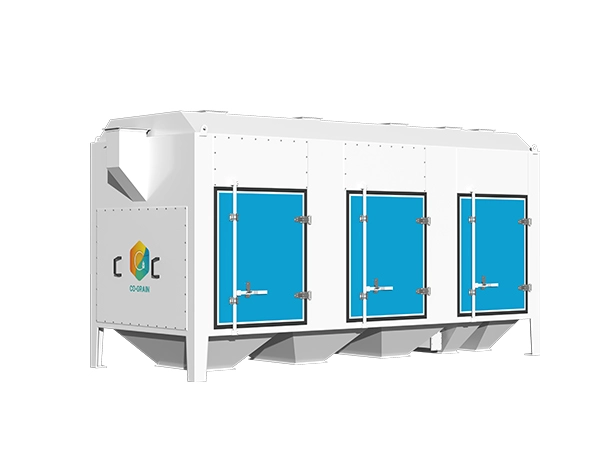

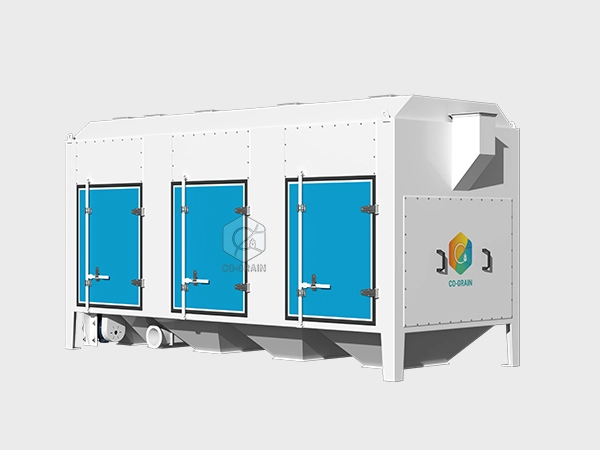

This model paddy pre-cleaner machine is one of the grain cleaning machines, it is designed to remove the large impurities such as stalk, clods, and fragments of brick or stone, to ensure the quality of material and prevent the next equipment from damage.
This model paddy pre-cleaner machine is one of the grain cleaning machines used in the first step for all rice mill plants, with good working efficiency. It is designed to clean raw material in rice milling plants and feedstuff plants, mainly removing the large impurities such as stalks, clods, and fragments of brick or stone, to ensure the quality of material and prevent the next equipment from damage, which has high efficiency in pre-cleaning paddy, corn, soybean, wheat, sorghum, and other grains.
This rice cleaning machine's preliminary cleaning screen is that the material falls from the feeding mechanism into the chute, passes through the running circular screen, and the coarse impurities screened by the garden screen flow out from the special outlet.
The sieved material passes through the magnetic fence to remove the ferromagnetic debris mixed in the material. The magnetically-selected material sucks away dust and impurities through the air suction system and is taken out by the auger and the wind shut off.
1. Adjustable screen cylinder angle to regulate output and cleaning performance.
2. Reserved air suction port at the top for a more hygienic and cleaner operation.

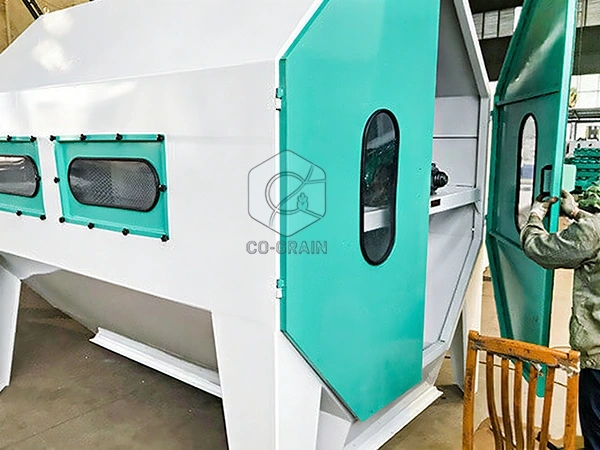

3. Unique sealed door design to effectively prevent dust leakage, ensuring both aesthetics and convenience.
4. Reinforced and optimized structure for strength, durability, and stability, with optional explosion-proof configuration.
5. Available in fixed type, mobile type, and air-suction combination type for flexible user selection.

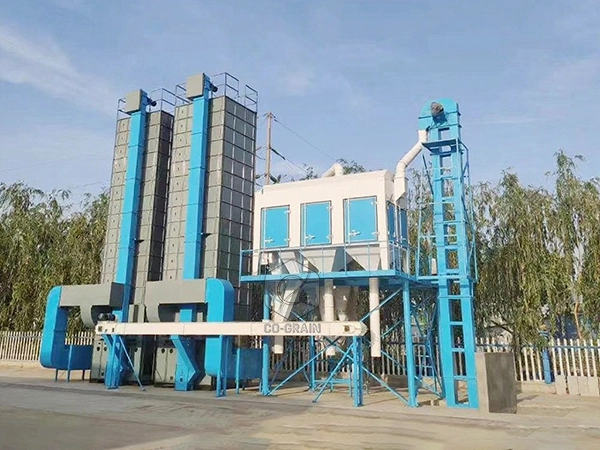

This cleaning machine is primarily used in the rice mill production line, flour mill production line, and oil press production line as the first step to clean materials. It can be integrated into these lines, providing good working efficiency.
For the cleaner machine, details can be customized to meet the client's specific needs.
| Model | Capacity（t/h） | Power(kw) | Weight(kg) | Dimension(mm) |
| SCY63 | 3-5 | 0.75 | 330 | 1450*840*1320 |
| SCY80 | 5-8 | 1.1 | 420 | 1690*1000*1560 |
| SCY100 | 8-15 | 1.5 | 530 | 1920*1200*1840 |
| SCY125 | 15-25 | 1.5 | 660 | 2255*1450*2060 |
| SCY150 | 30-40 | 2.2 | 790 | 2310*1760*2560 |
| SCY180 | 45-55 | 3-4 | 1000 | 3450*2150*2730 |
