TQSX Suction Rice Destoner

  • Capacity: 5-10 T/H
  • Power: 0.75-1.1 Kw
  • Service: Customization, installation, guidance, and training
  • Cooperation: Factory Directly

This gravity rice de-stoner machine is mainly used in rice mill plants to remove the heavier impurities materials mixed stones that are the same as the grain. This machine has an air-pressure meter to monitor the air pressure in the air-suction chamber.

Gravity Rice Destoner in Rice Mill Plant Introduction

TQSX series gravity de-stoner machine is one of the rice processing machines and is mainly used in the rice mill plants to remove the heavier impurities materials mixed stones that are the same as the grain size in the wheat, paddy rice, soybean, peanut, rapeseed, and other materials.

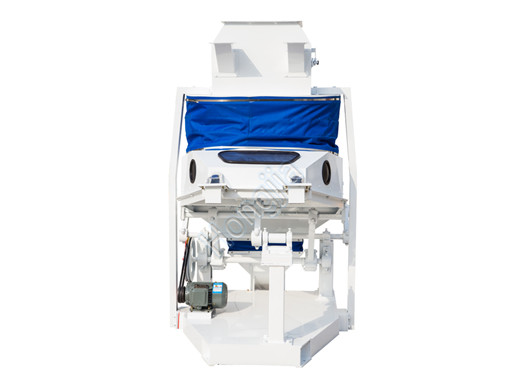

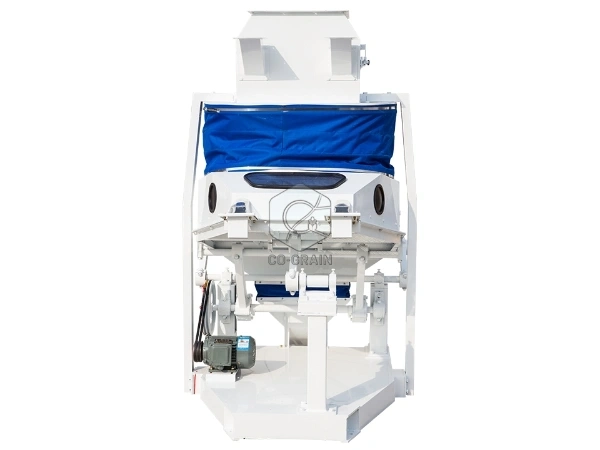

TQSX_Suction_Type_Gravity_Rice_Destoner_supplier

This machine has an air-pressure meter to monitor the air pressure in the air-suction chamber, it has a light that can help check the movements of the inside material.

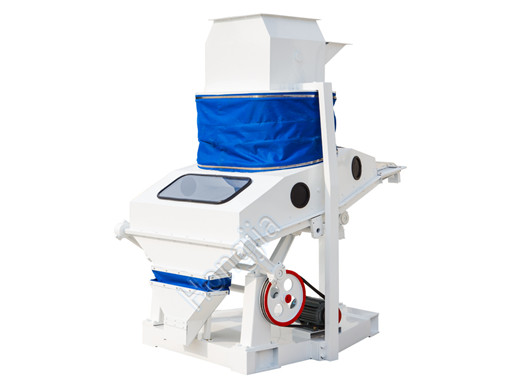

TQSX_Suction_Type_Gravity_Rice_Destoner_manufacturer
Make a Quick Inquiry Now !

TQSX Suction Vibration Destoner Working Principle

TQSX Suction Vibration Destoner utilizes the property that the grains and the mixed stone are of different specific weights and suspension speeds as well as the airflow that is blown upward through the grains, the machine keeps heavy impurity at the lower layer and uses a screen to force the material and impurity to move in different directions, thus separating the two of them.

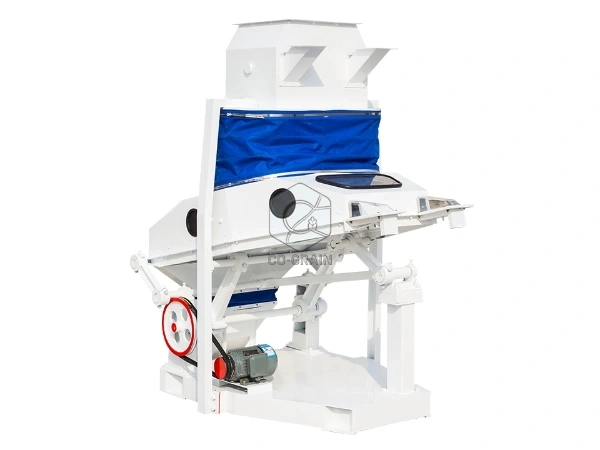

TQSX_Suction_Type_Gravity_Rice_Destoner

TQSX Suction Vibration Destoner Features

1. This machine adopts a vibration motor drive, compact structure, stable mechanical properties, and stable operation.

2. Double-layer sieve structure, good stone effect, large yield, the stone contains less grain.

3. Fully enclosed structure, no dust outside, the wind pressure can be adjusted, and there is a negative pressure display device.

4. Equipped with a throttle valve to adjust the air volume and wind pressure, the pressure gauge is used to indicate the wind pressure.

5. With a long-life fluorescent lighting system, easy to observe.

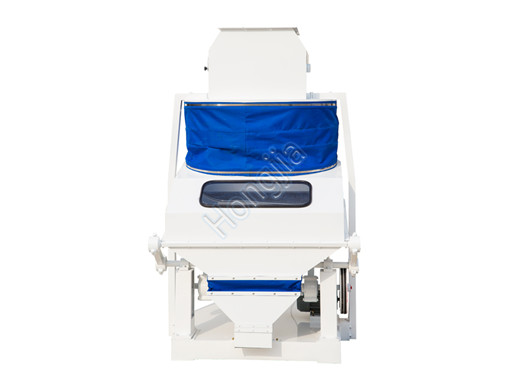

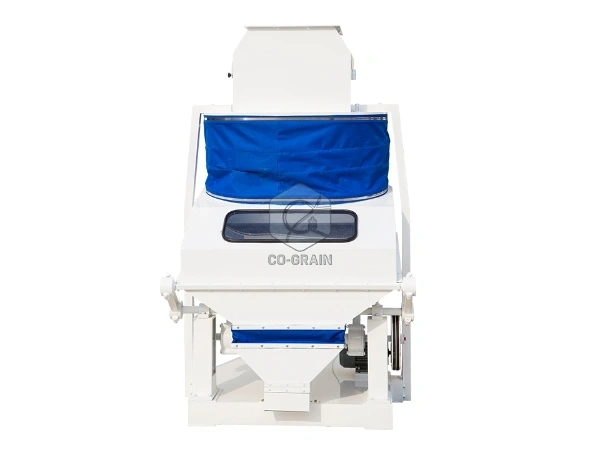

TQSX_Suction_Type_Gravity_Rice_Destoner_machine

TQSX Gravity De-stoner Machine Technical Parameter

ModelTQSX85TQSX100TQSX125TQSX120*2
Capacity(t/h)5-66-78-98-10
Power(kw)0.750.751.10.37*2
Air blow(m3/h)3200-34003800-42006000-75007500-9500
Dimension(mm)1515*975*18001515*1125*18001515*1375*18001720*1520*1875
Weight(kg)350380480600
