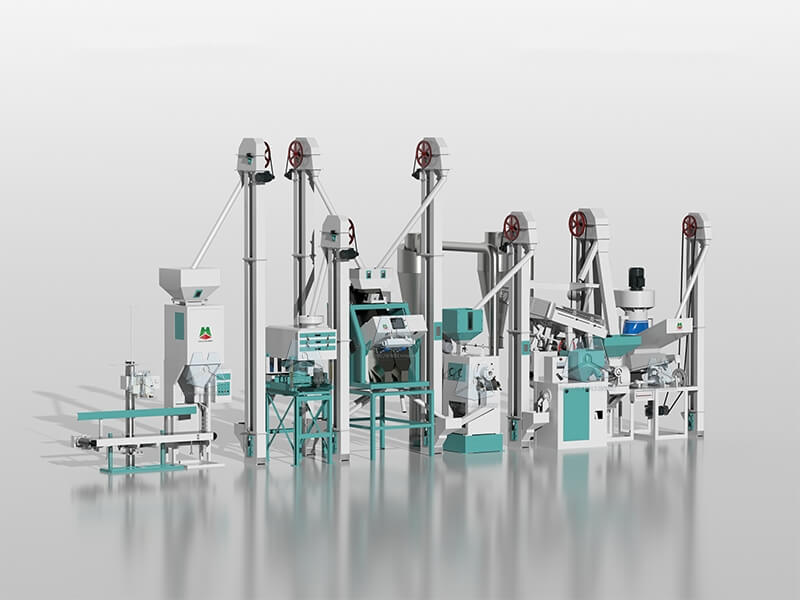

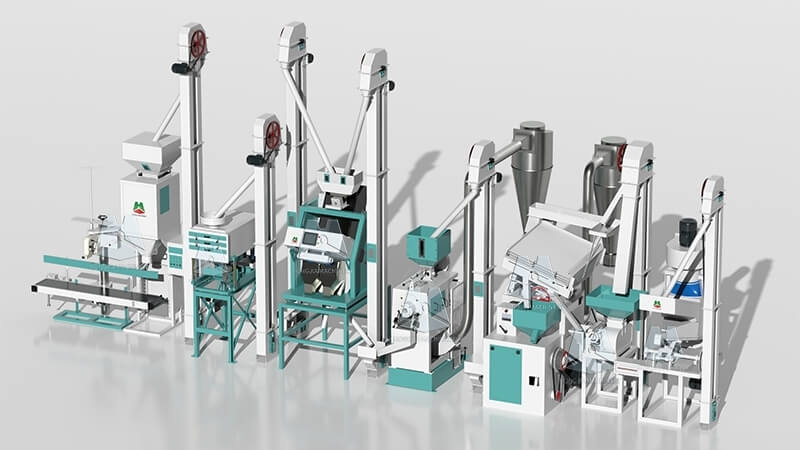

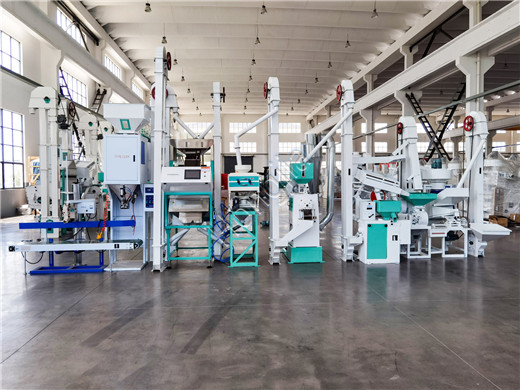

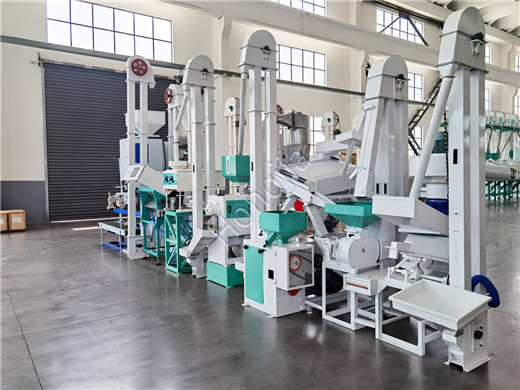

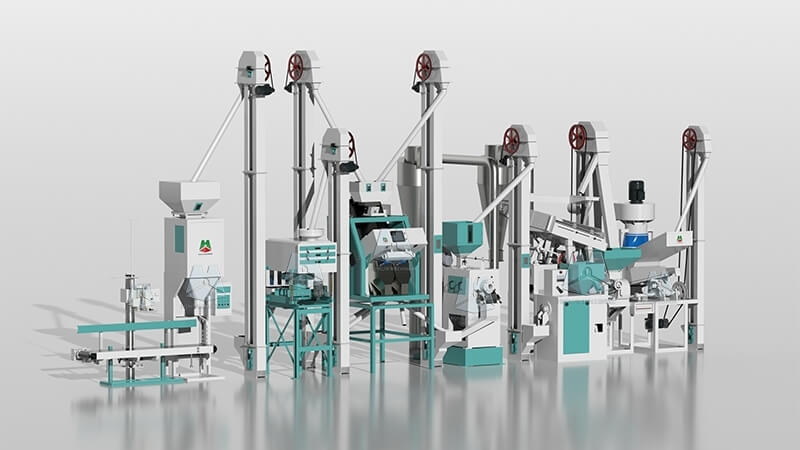

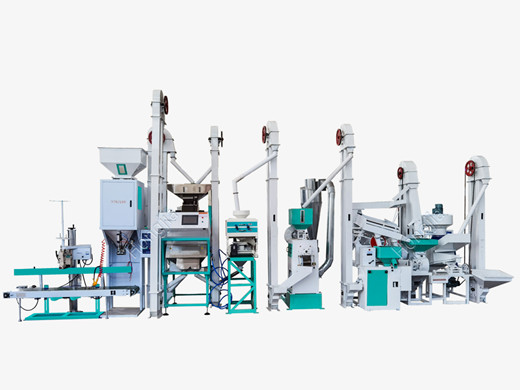

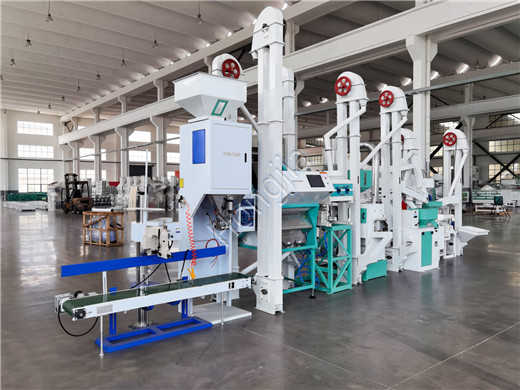

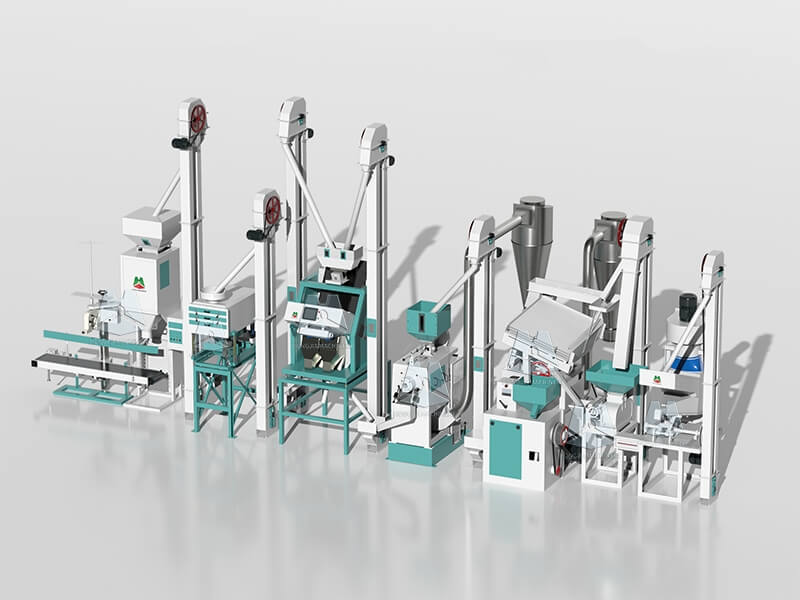

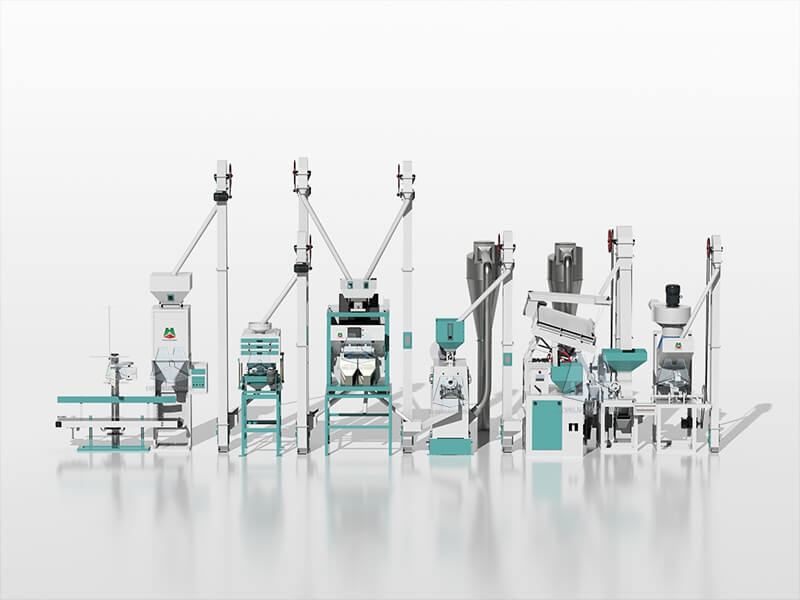

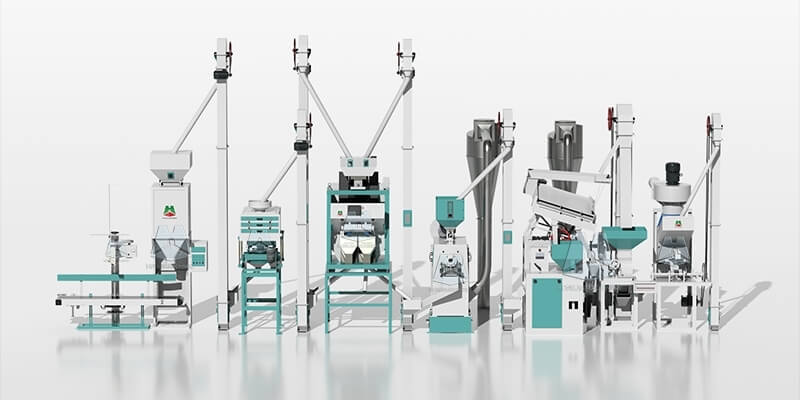

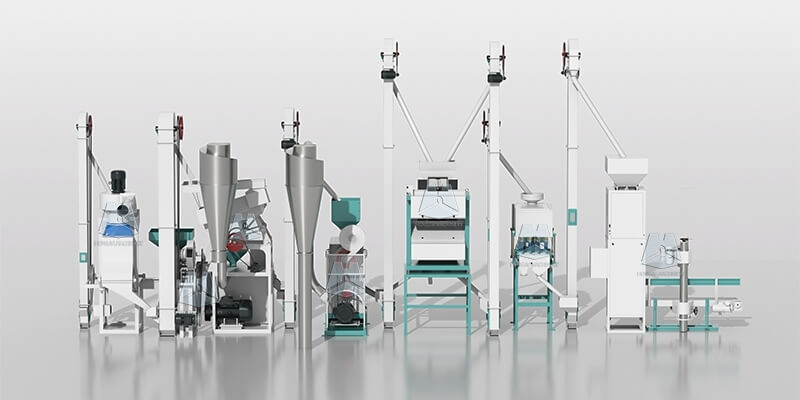

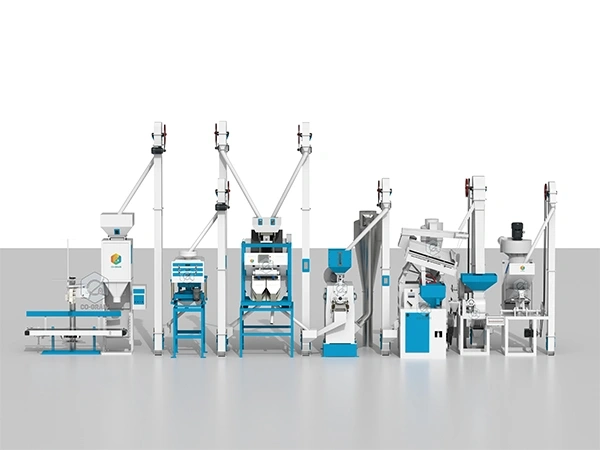

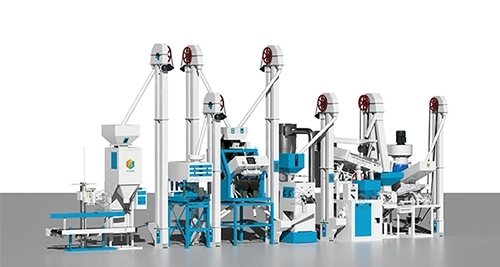

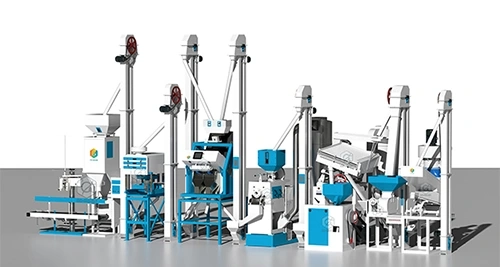

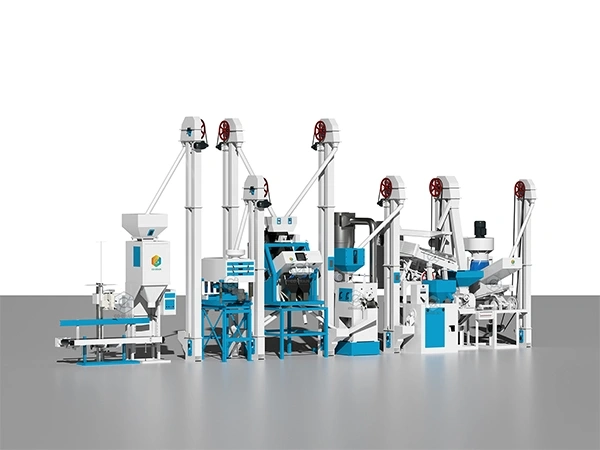

This 15T/D Complete Rice Mill Plant is a small rice processing machine that can produce 600-900kg of white rice per hour. This rice mill machine is applicable for processing raw paddy into milled white rice with economical design and high technical skills.
This 15T/D Auto Rice Mill Plant is a small rice processing machine producing 600-900kg of white rice per hour. This rice mill machine is applicable for processing raw paddy into milled white rice with economical design and high technical skills.

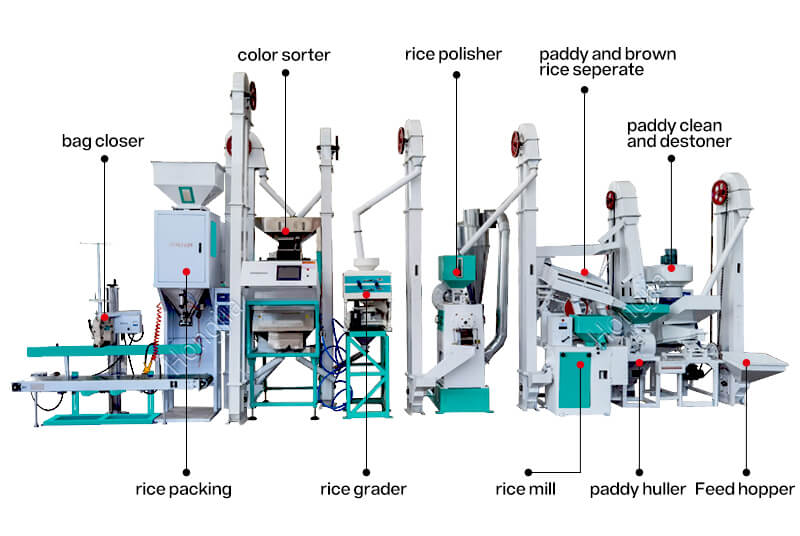

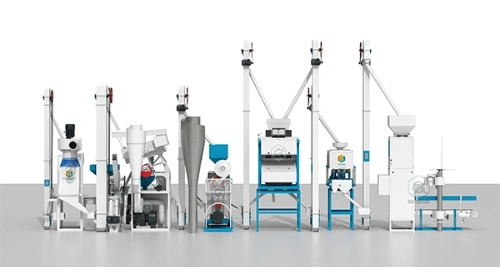

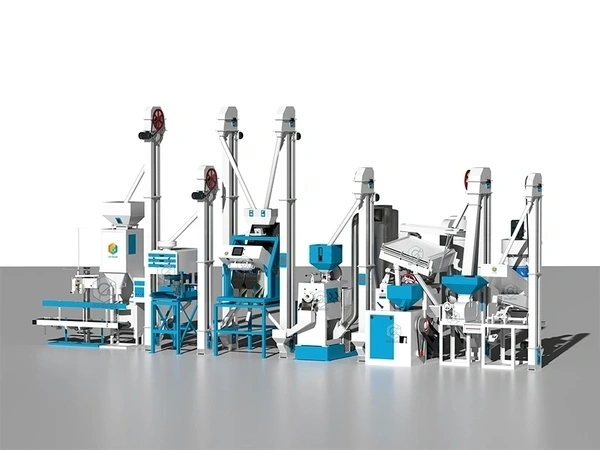

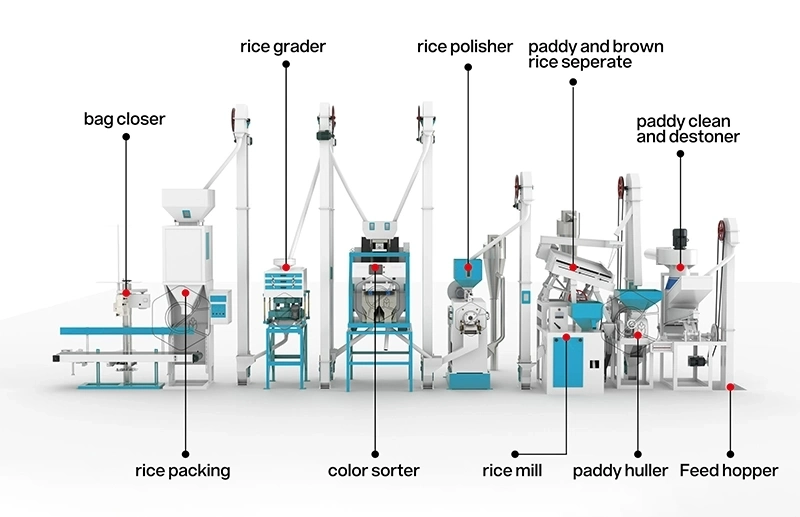

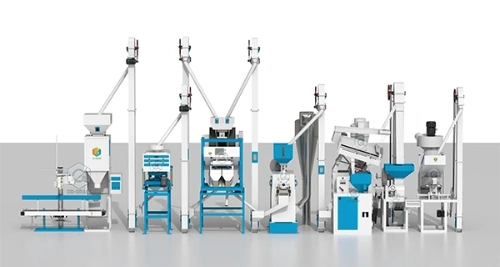

It is a complete rice processing plant containing a rice de-stoner machine, rice huller machine, paddy rice separator machine, rice mill machine, broken rice grader machine, rice polisher, rice color sorter, rice packing machine, etc. It uses the elevator to connect them and to make the whole line complete and automatically work.
For this 15ton per day auto rice mill machine, it can make continue work. The users feed the paddy into the hopper and then operate the machine with the control box for different machine work is ok. High working efficiency automatic working compact structure easy to operate and maintain.

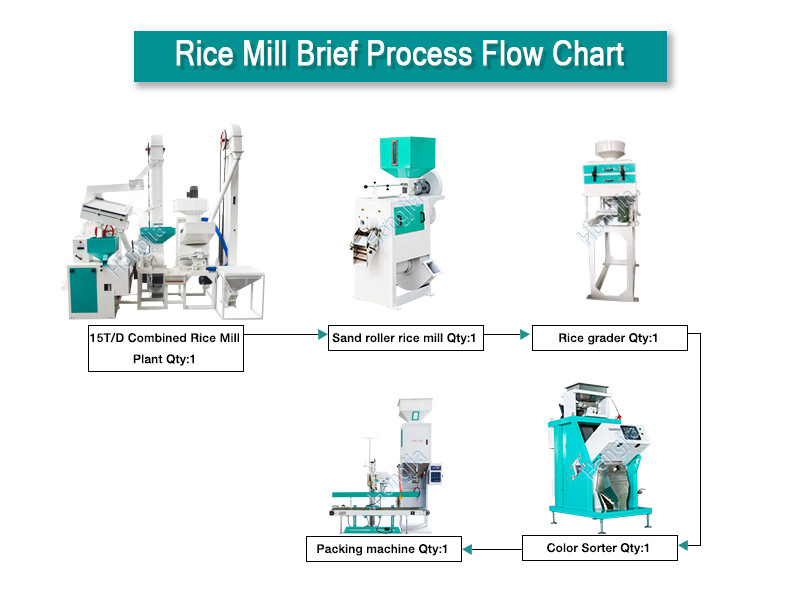

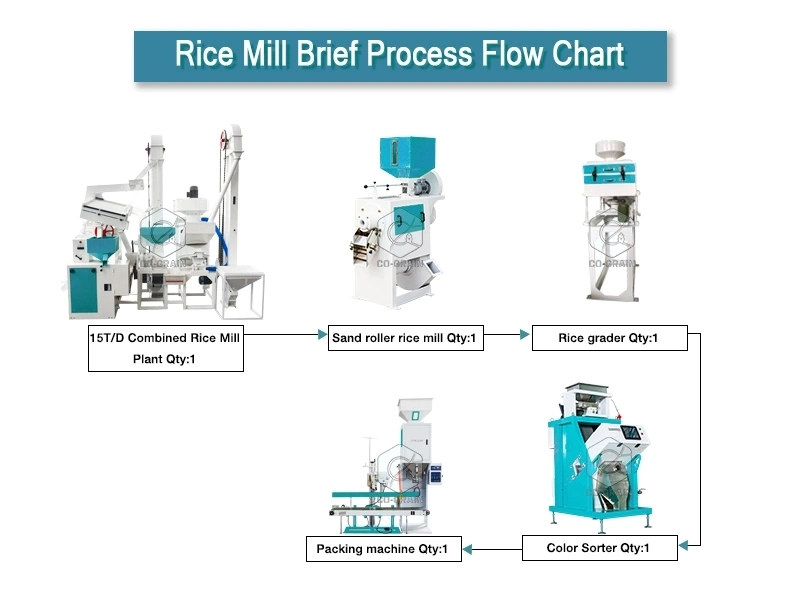

The 15T/D complete rice mill plant can process paddy into national standard rice just in one process at the following flow chart: Raw material feeding-Vibrated cleaner & Destoner → Rice Husker→Paddy Rice Separator → Rice Mill →Rice Polisher → Rice Grader→ Rice Color Sorter → Packing, Then the rice can be on market for sale.
Our rice milling machine is a fully automatic rice production line, which includes the entire process from paddy cleaning, stone removal, rice milling, rice hulling, grain separation, rice polishing, rice color sorting, and final rice packaging. You no longer need any other machines, you can realize the entire processing from paddy rice to the final finished white rice. Therefore, this complete set of rice milling equipment is trendy. Welcome, contact us for the details.
Combined Paddy Cleaner: removing all impurities and unfilled grains from the paddy;
Rice Hulling Machine: a rice huller or paddy husker is an agricultural machine used to automate the process of removing the chaff (the outer husks) of grains of rice.
Paddy Separator: it is mainly used for separating brown rice from paddy making use of their differences in specific gravity and friction coefficient in three parts: paddy, brown rice, and a mix of both.
Rice Milling Machine: the rice whitening machine is developed for rice whitening, which is an advanced technology of the world rice mill whitener at present to make rice temperature down, bran content less, and broken increment lower.
White Rice Grader: The broken rice in the finished rice is separated to improve the quality of the finished rice
Rice Polisher: improving the appearance of milled rice by removing remaining bran particles and by polishing the exterior of the milled kernel, making the white rice smoother and brighter
Rice Color Sorter: Selecting the other colors of rice or mildew rice from white rice, to remove the bad rice, black rice, yellow rice, half-husked rice, etc
Rice Packing Machine: Set the weight of each bag of maters for packing according to your needs and pack the white rice in the bag, preparing milled rice for transport to the customer.
Magnetic Separating: Remove the magnetic material in the rice, so as not to damage the subsequent rice milling equipment
Grain silos: Cache the produced white rice
| No. | Name | Quantity |
| 1 | Combined Cleaner and Destoner Machine | 1 |
| 2 | Rice Huller | 1 |
| 3 | Paddy Rice Separator | 1 |
| 4 | Strong pull wind emery roller rice mill | 1 |
| 5 | Rice polisher | 1 |
| 6 | Rice Grader | 1 |
| 7 | Rice color sorter | 1 |
| 8 | Packing machine | 1 |
| 9 | Rice Bucket Elevator | 8 |
| 10 | Control Cabinet | 1 |

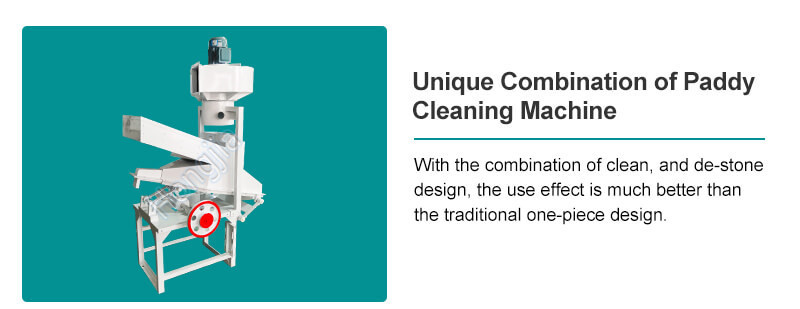

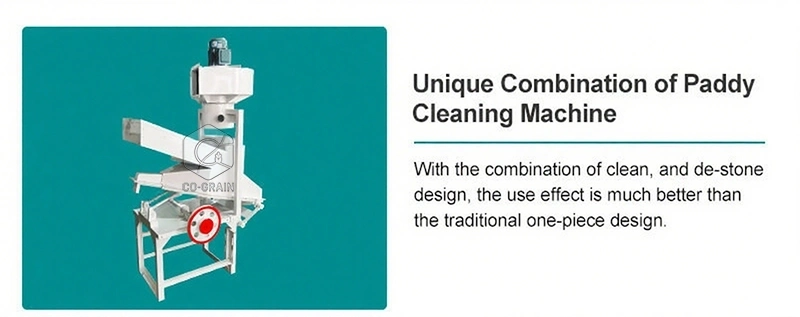

Unique Combination of Paddy Cleaning Machine
With the combination of clean, and de-stone design, the use effect is much better than the traditional one-piece design. Large air volume design, excellent stone removal effect, combined with high-strength vibration-absorbing bearing configuration, the body movement is stable, firm, and reliable, low vibration, low noise, less dust;
The stone removal part adopts the design of large air volume and suction, with large air volume and good stone removal effect;
The cleaning part adopts a multi-layer drum screen mechanism, which has high cleaning efficiency and clean-up, so it can remove fine impurities and stones;

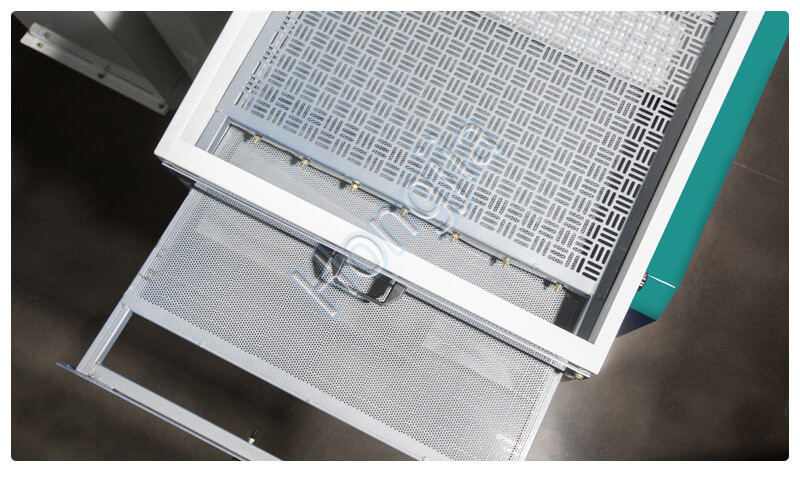

A square rotation screen for the destoner machine will make the paddy cleaner;

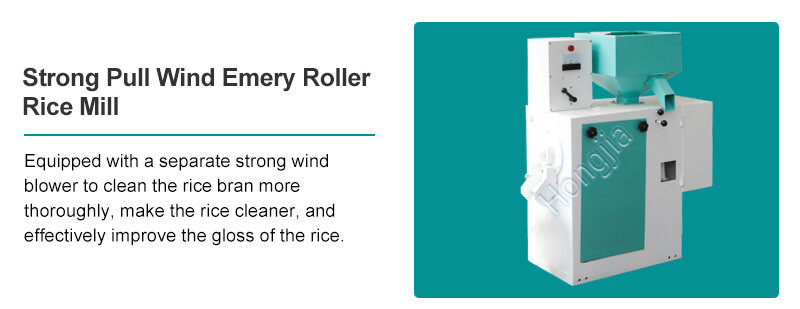

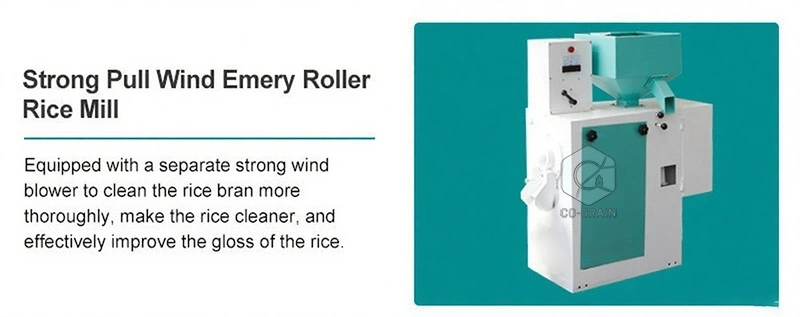

Strong Pull Wind Emery Roller Rice Mill
Equipped with a separate strong wind blower to clean the rice bran more thoroughly, make the rice cleaner, and effectively improve the gloss of the rice;
Lower the temperature of the rice, thereby effectively reducing the rate of broken rice;
The operation height is reduced, the operation is more convenient, and the daily maintenance is convenient;

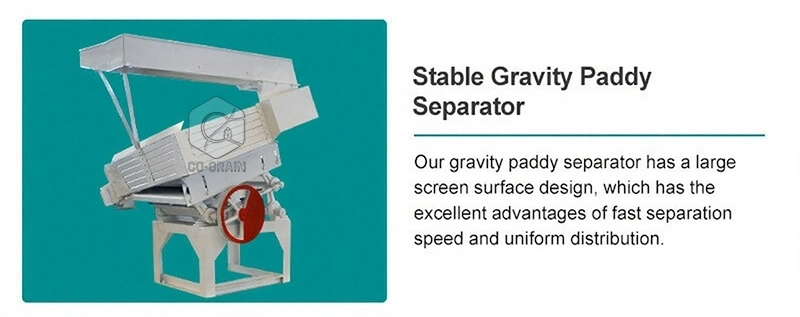

Stable Gravity Paddy Separator
Our gravity paddy separator has a large screen surface design, which has the excellent advantages of fast separation speed and uniform distribution;
The horizontal and vertical angles of the screen surface can be adjusted, so it is suitable for different types of rice;
Low broken rice rate;

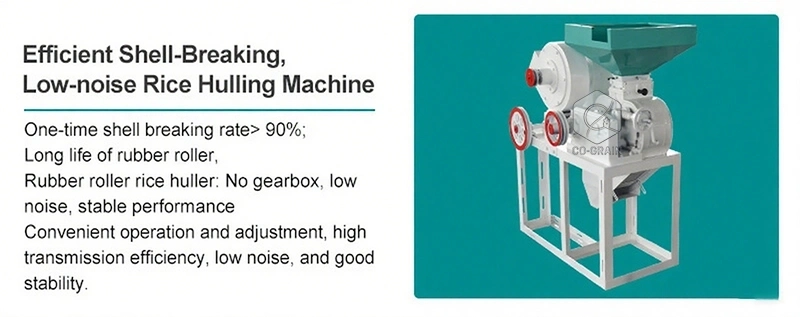

Efficient Shell-Breaking, Low-noise Rice Hulling Machine
One-time shell breaking rate> 90%;
Long life of rubber roller, 8-inch rubber roller rice huller: No gearbox, low noise, stable performance;
Convenient operation and adjustment, high transmission efficiency, low noise, and good stability;

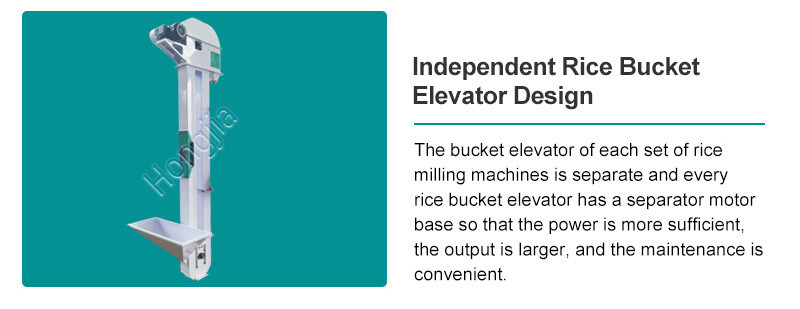

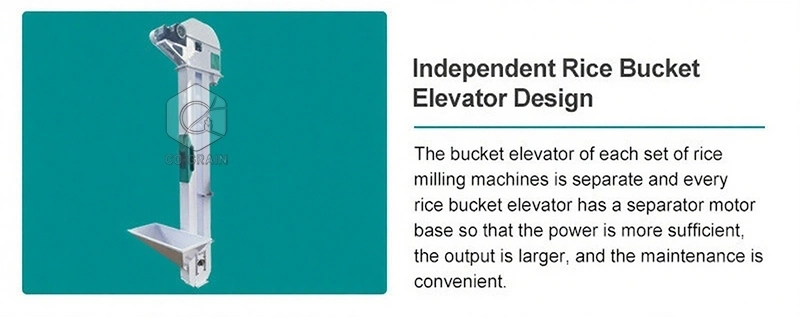

Independent Rice Bucket Elevator Design
The bucket elevator of each set of rice milling machines is separate and every rice bucket elevator has a separator motor base so that the power is more sufficient, the output is larger, and the maintenance is convenient.
1. Fully automatic rice production line, less power consumption
2. Compact structure, nice performance, small volume
3. Modern design and high-efficiency output
4. Low noise and less consumption
5. Easy to operate and maintain
6. Output rice with high quality, low broken rate
7. Reasonable price
Our rice mill can process steamed rice, white rice, long rice, short rice, glutinous rice, etc. It is very suitable for farmer use, rice process workshop, rice factory, or reselling. Welcome contact us for the details, thanks.
