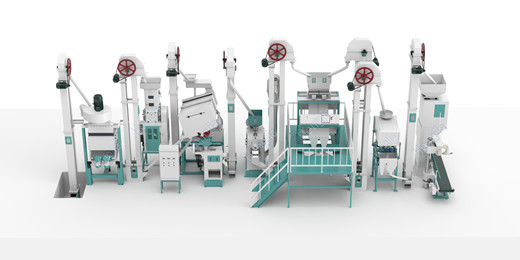

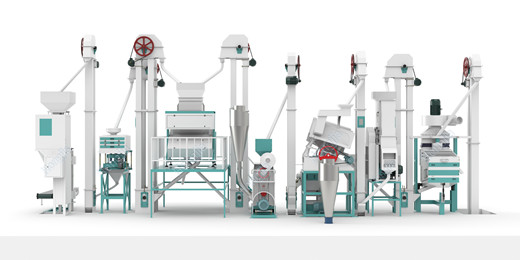

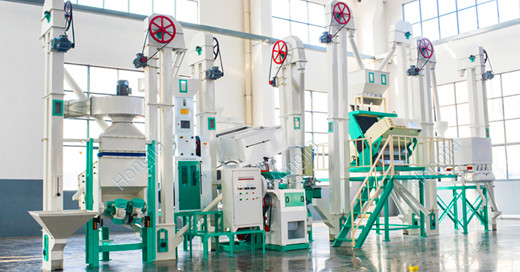

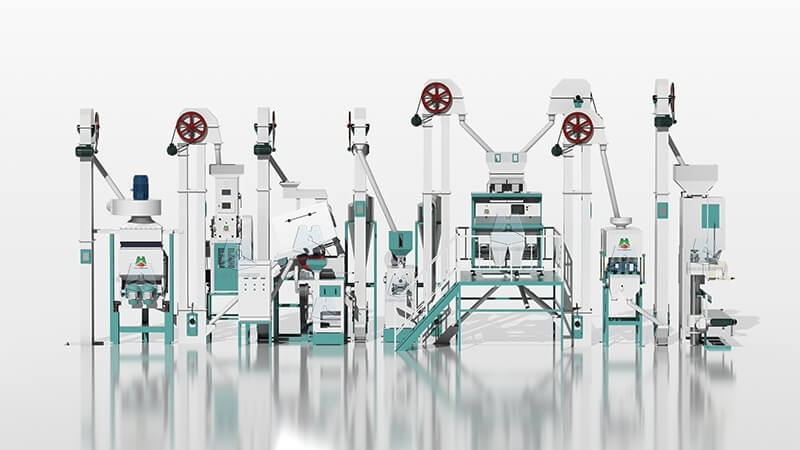

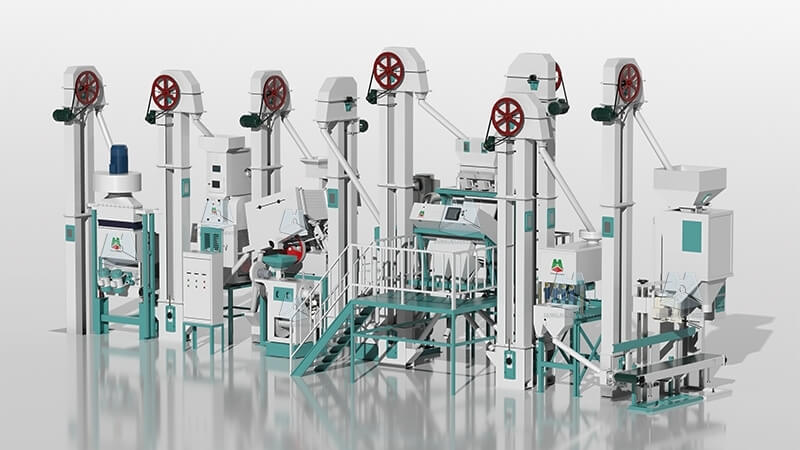

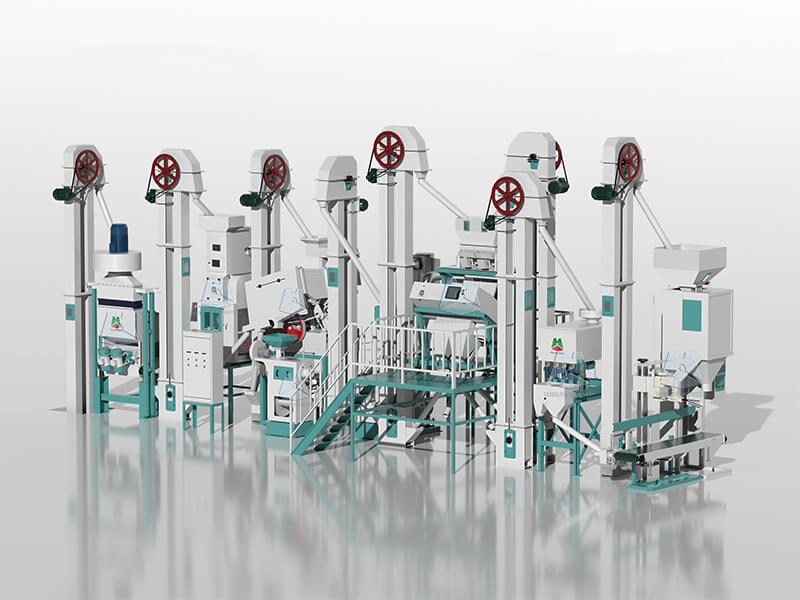

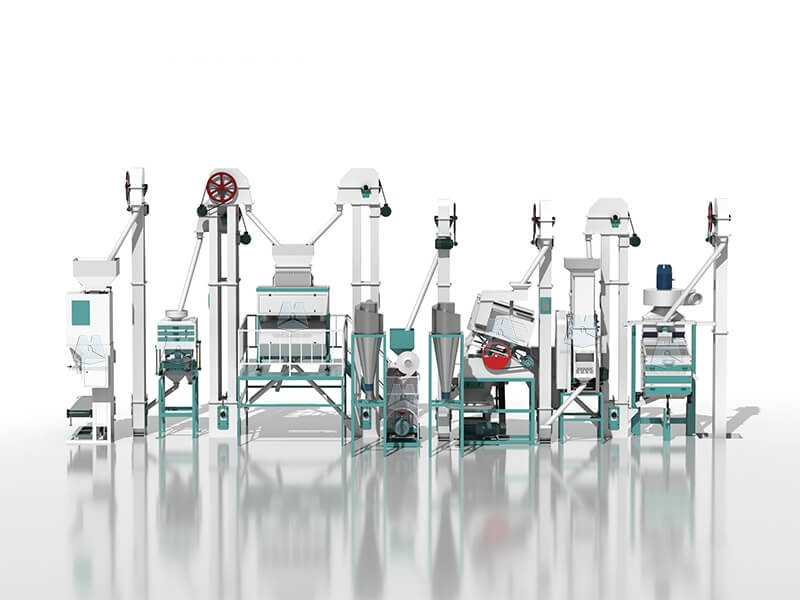

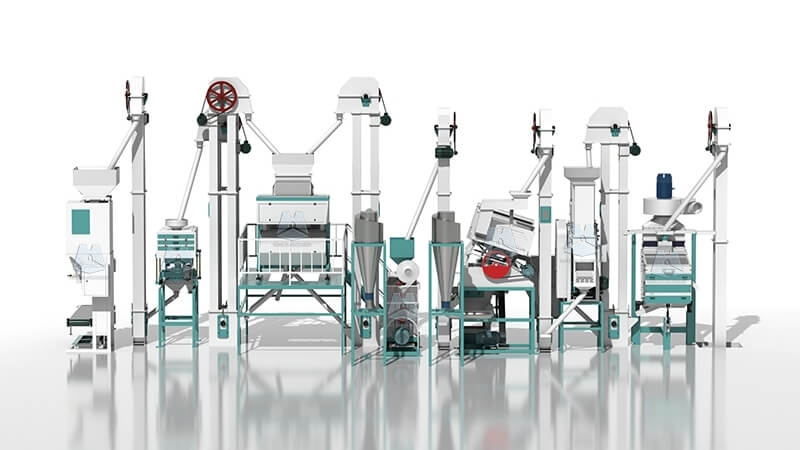

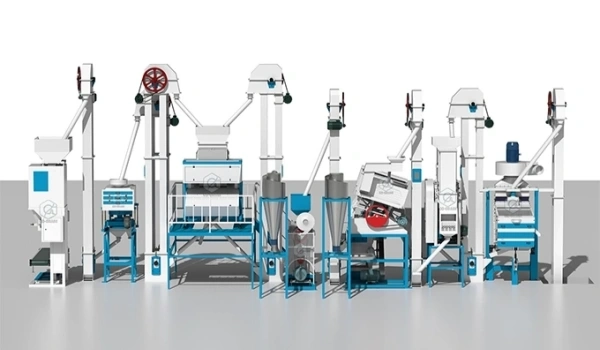

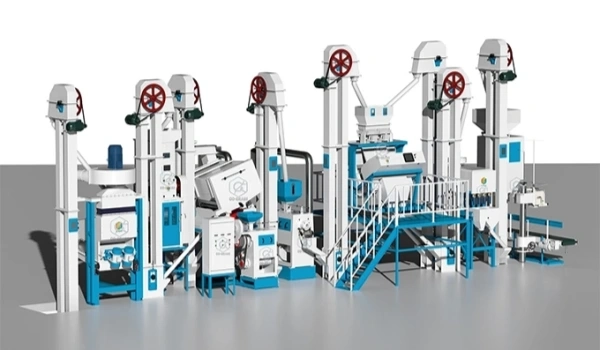

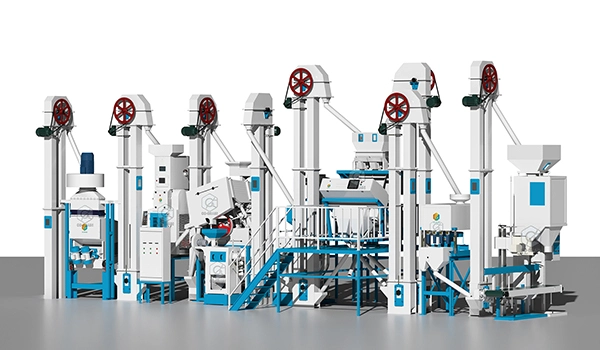

30T/D Complete Rice Mill Plant is a complete rice processing machine that can produce 1500-1800kg of final rice per hour. It can combine the functions of cleaning the paddy rice, removing the stone, milling, and packing the white rice, with high working efficiency in one.

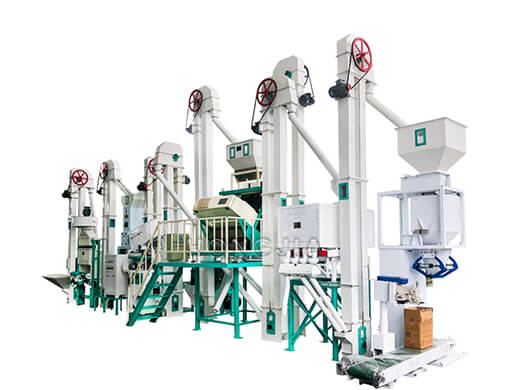

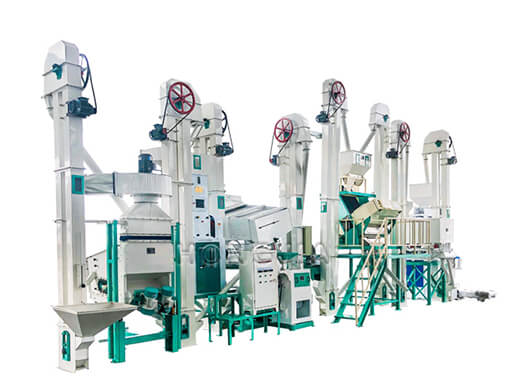

30T/D Complete Rice Mill Plant is a complete rice processing machine that can produce 1500-1800kg of final rice per hour. This rice mill machine contains the rice cleaning machine, rice de-stoner machine, rice huller, paddy rice separator machine, rice mill machine, rice polisher, rice color sorter machine, rice grader machine, and rice packing machine.

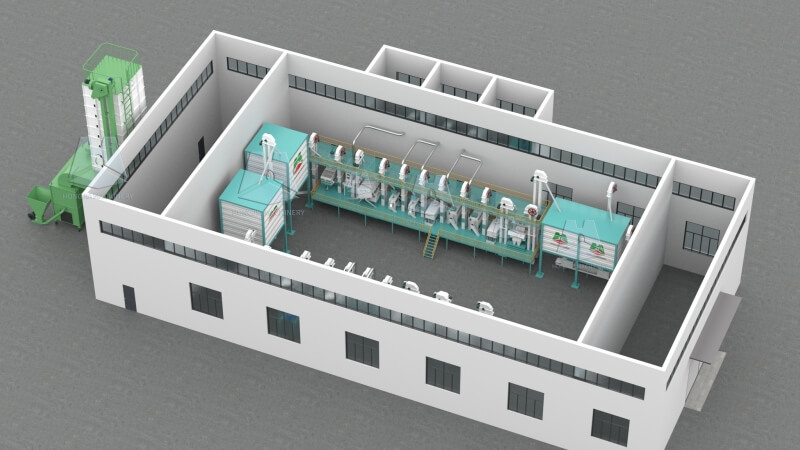

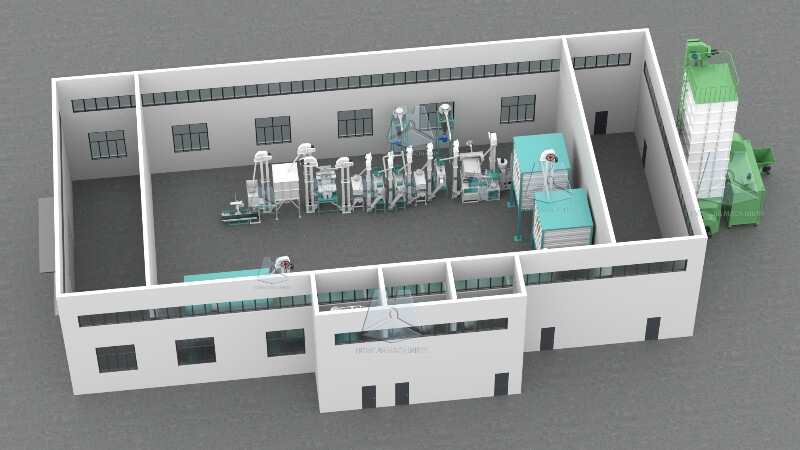

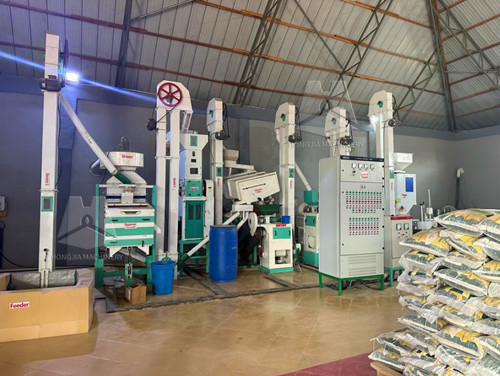

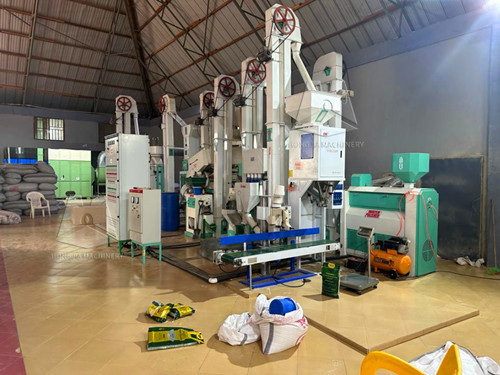

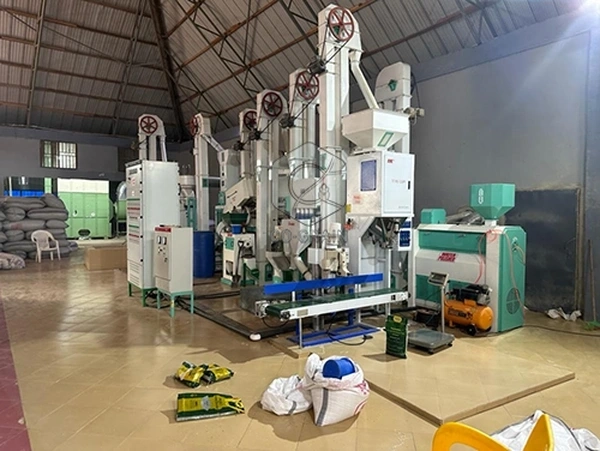

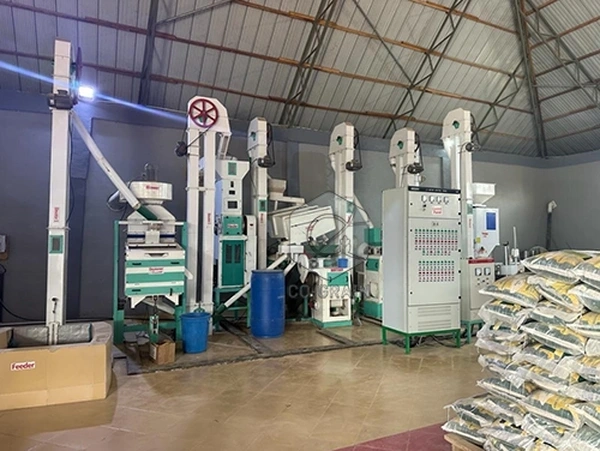

This rice mill plant is our customized model for one of our Nigerian clients, which they set for their government. For this model rice mill production line has advanced technical skills, a compact structure, and high outlet advantages. It is an ideal choice for small grain processing enterprises and rice farms.

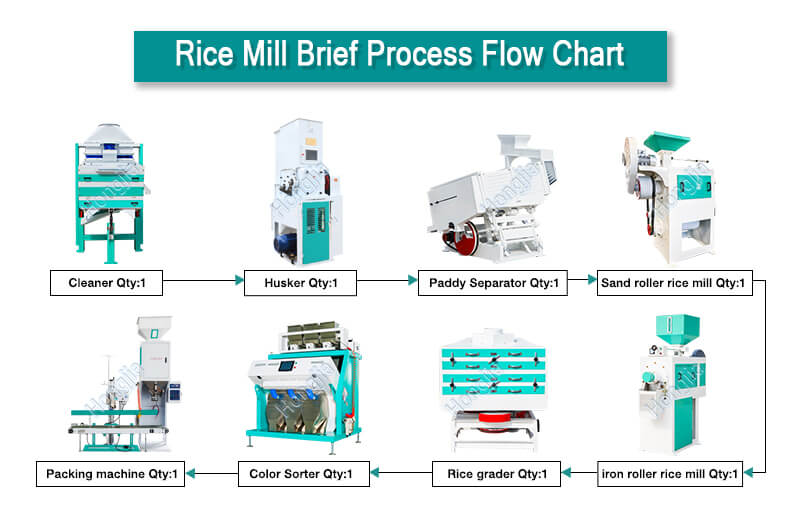

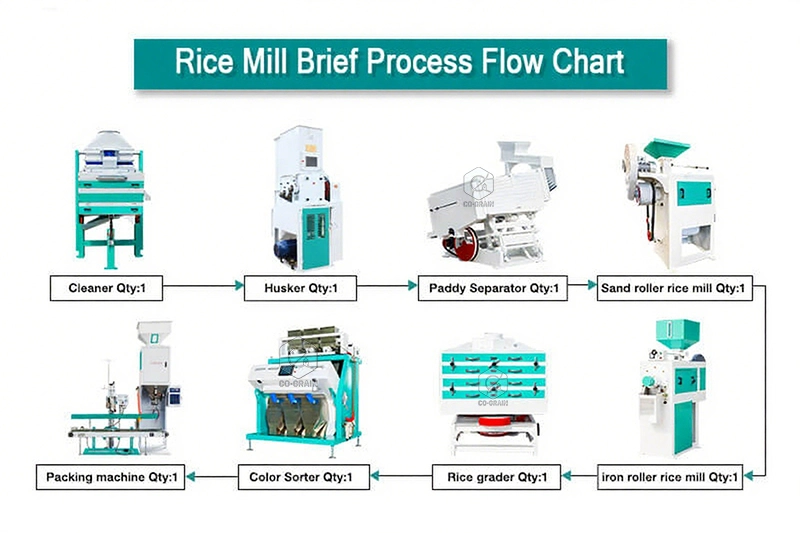

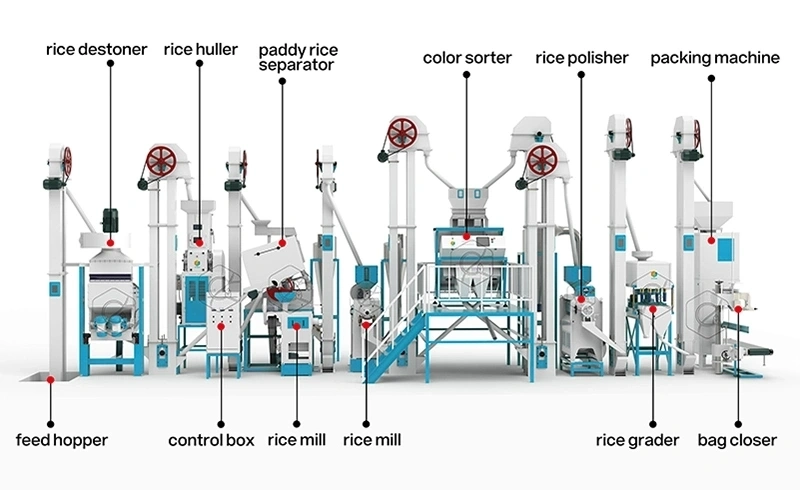

The 30T/D complete rice mill project can process paddy into national standard rice just in one process at the following flow chart: Raw material feeding-Vibrated cleaner & Destoner → Rice Husker→Paddy Rice Separator → Rice Mill →Rice Polisher → Rice Grader→ Rice Color Sorter → Packing, Then the rice can be on market for sale.

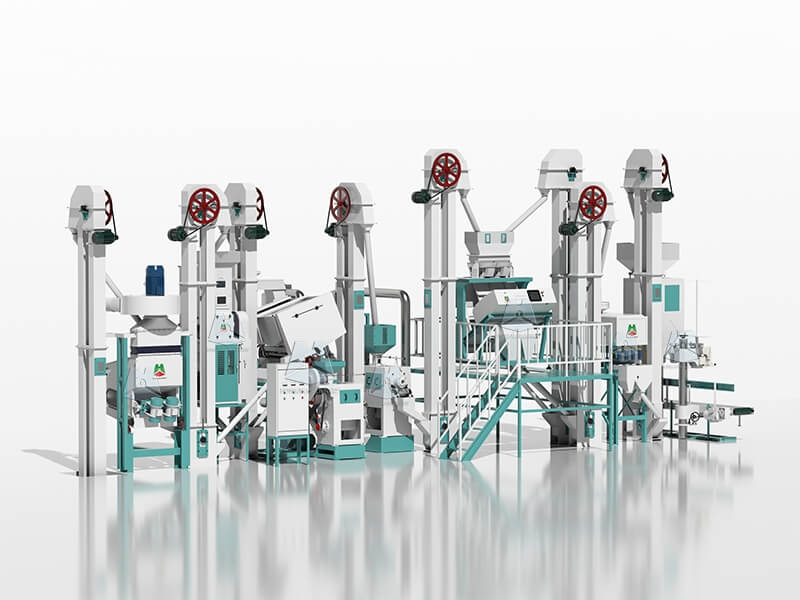

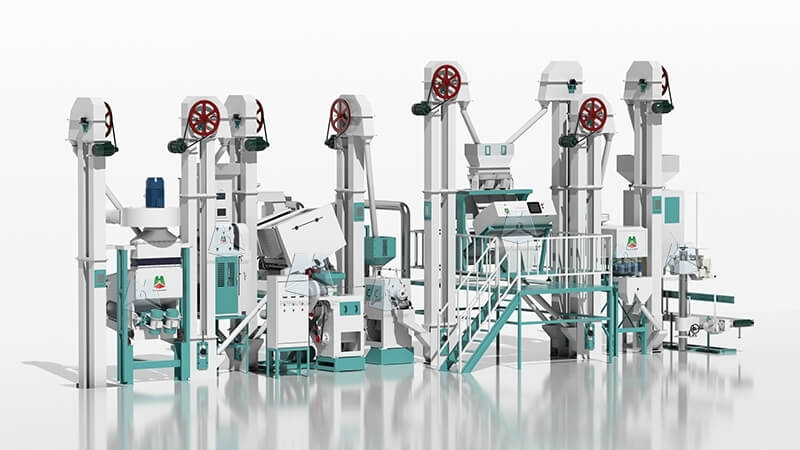

Our 30T/D complete rice mill plant is a fully automatic rice processing plant, which includes the entire process from paddy cleaning, stone removal, rice hulling, rice separating, rice milling, rice polishing, and rice color sorting, rice grading, and final rice packaging. You no longer need any other machines, you can realize the entire processing from paddy rice to the final finished white rice. Therefore, this complete set of rice milling equipment is very popular. Welcome, contact us for the details.

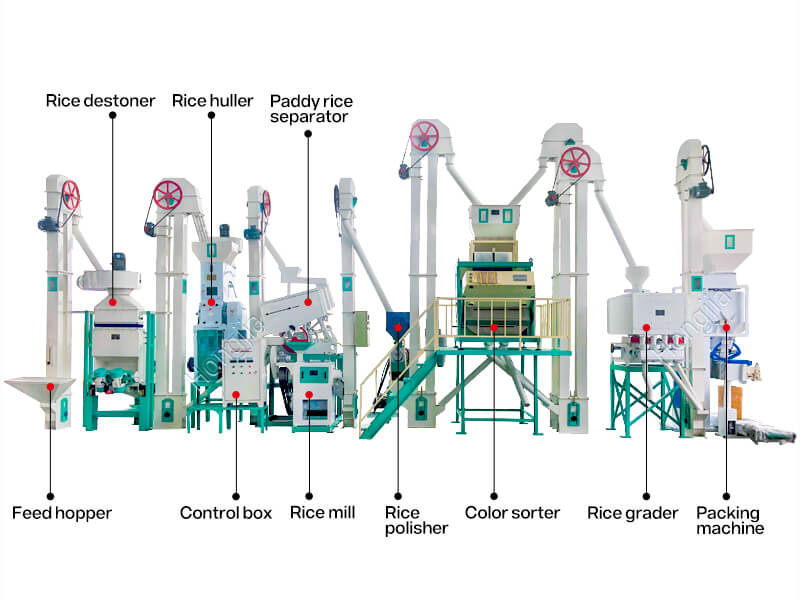

Hopper: feeding raw paddy material to the rice mill machine
Combined paddy cleaner & de-stoner: other light impurities such as dust and debris, block, the stone should be removed as much as possible to reach a better cleaning effect.
Rice husker: remove husk from paddy.
Rice separator: it is mainly used for separating brown rice from paddy making use of their differences in specific gravity and friction coefficient in three parts: paddy, brown rice, and a mix of both.
Rice mill machine: the rice whitening machine is developed for rice whitening, which is an advanced technology of the world rice mill whitener at present to make rice temperature down, bran content less, and broken increment lower.
Rice polisher: polishes the rice surface by spraying water, which facilities the formation of a smooth gelatinous layer that prolongs the preservation time. Extended polishing chamber to produce high-quality rice.
Rice grading machine: the rice grader can sieve milled rice efficiently and accurately into several classes: head rice, large broken, medium broken, small broken, etc.
Rice color sorter: the rice color sorting machine is used to sort bad, milky, Chalky, Paddy, and foreign materials out. The CCD signal while blanking is tested. If it is found that there are unqualified rice or impurities in the materials, the ejector will blow the defective goods in the hopper.
Rice packing machine: this rationed automatic weighing packing machine consists of a material box, a packing scale, a sewing machine, and a conveyor belt. It can cooperate work with all the model's rice mill production lines, and also for the packing bag capacity can choose 1-50kg per bag for your needs.
| No. | Name | Model |
| 1 | Combined cleaning screen | ZQS70 |
| 2 | Rice huller | MLGT25 |
| 3 | Paddy separator | MGCZ100*7 |
| 4 | Sand roller rice mill | MNMS15E |
| 5 | Iron roller rice mill | MNMT128E |
| 6 | White rice grader | MMJP80*3 |
| 7 | Elevator | TDTG20/09 |
| 8 | Rice polisher | MPG14.5 |
| 9 | Rice color sorter | 128 |
| 10 | Rice packing machine | DCS-50 |
Unique Combination of Paddy Cleaning Machine
With the combination of clean, and de-stone design, the use effect is much better than the traditional one-piece design. Large air volume design, excellent stone removal effect, combined with high-strength vibration-absorbing bearing configuration, the body movement is stable, firm, and reliable, low vibration, low noise, less dust;
The stone removal part adopts the design of large air volume and suction, with large air volume and good stone removal effect;
The cleaning part adopts a multi-layer drum screen mechanism, which has high cleaning efficiency and clean-up, so it can remove fine impurities and stones;
A square rotation screen for the destoner machine will make the paddy cleaner;
Strong Pull Wind Emery Roller Rice Mill
Equipped with a separate strong wind blower to clean the rice bran more thoroughly, make the rice cleaner, and effectively improve the gloss of the rice;
Lower the temperature of the rice, thereby effectively reducing the rate of broken rice;
The operation height is reduced, the operation is more convenient, and the daily maintenance is convenient;
Stable Gravity Paddy Separator
Our gravity paddy separator has a large screen surface design, which has the excellent advantages of fast separation speed and uniform distribution;
The horizontal and vertical angles of the screen surface can be adjusted, so it is suitable for different types of rice;
Low broken rice rate;
Efficient Shell-Breaking, Low-noise Rice Hulling Machine
One-time shell breaking rate> 90%;
Long life of rubber roller, 8-inch rubber roller rice huller: No gearbox, low noise, stable performance;
Convenient operation and adjustment, high transmission efficiency, low noise, and good stability.
Independent Rice Bucket Elevator Design
The bucket elevator of each set of rice milling machines is separate and every rice bucket elevator has a separator motor base so that the power is more sufficient, the output is larger, and the maintenance is convenient.
1. Fully automatic rice production line, less power consumption
2. Compact structure, nice performance, small volume
3. Modern design and high-efficiency output
4. Low noise and less consumption
5. Easy to operate and maintain
6. Output rice with high quality, low broken rate
7. Reasonable price
Our rice mill can process steamed rice, white rice, long rice, short rice, glutinous rice, etc. It is very suitable for farmer use, rice process workshop, rice factory, or reselling. Welcome contact us for the details, thanks.
