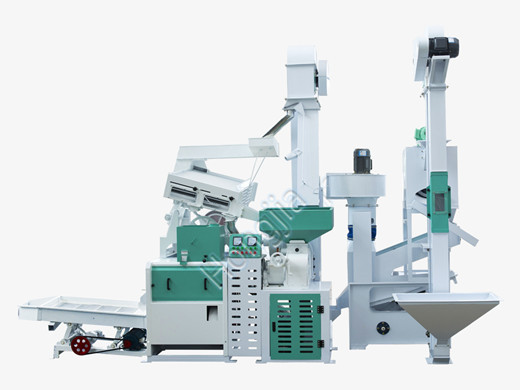

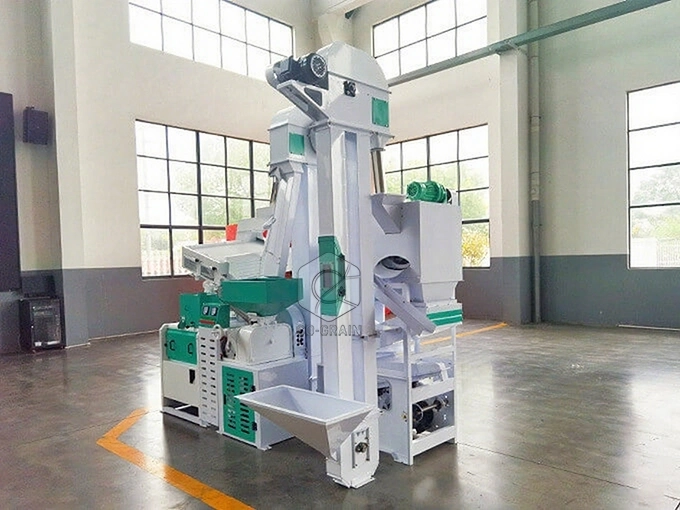

This is our newly designed rice processing line that can process paddy rice into national standard white rice just in one process. It is suitable for small-scale rice milling process, which can process about 1100-1400kg paddy and get about 800-1000kg white rice per hour.

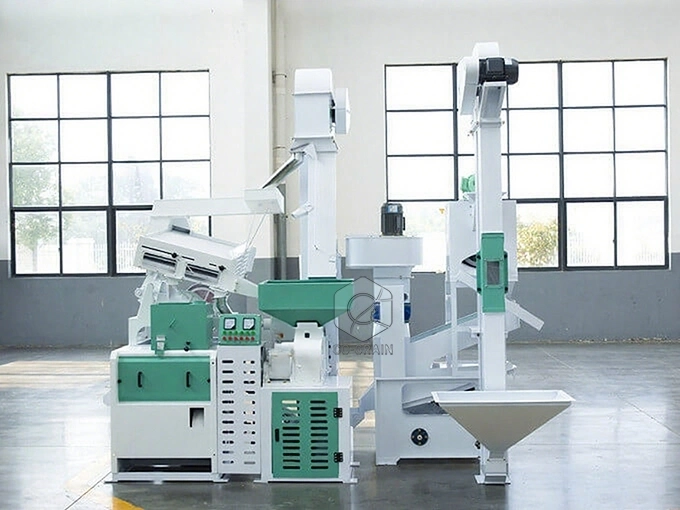

This is our newly designed rice processing line, which consists of complete rice processing machines. It can process paddy rice into national standard white rice just in one process. This 20T/D rice processing mill is suitable for small-scale rice milling processes, which can process about 1100-1400kg paddy and get about 800-1000kg white rice per hour.
And the capacity and the machines in the rice processing line can be customized to your special requirement. So it’s the most ideal rice processing machine for urban, rural, small, and medium-sized rice processing plants.

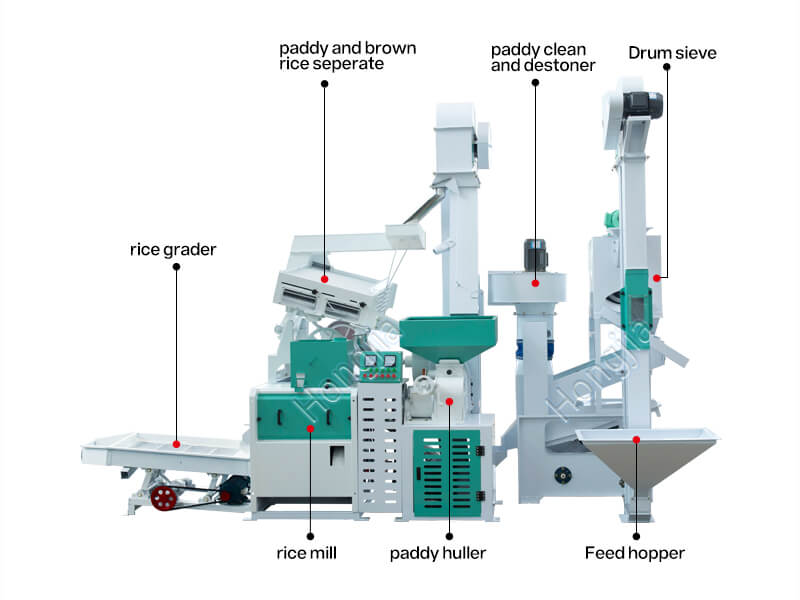

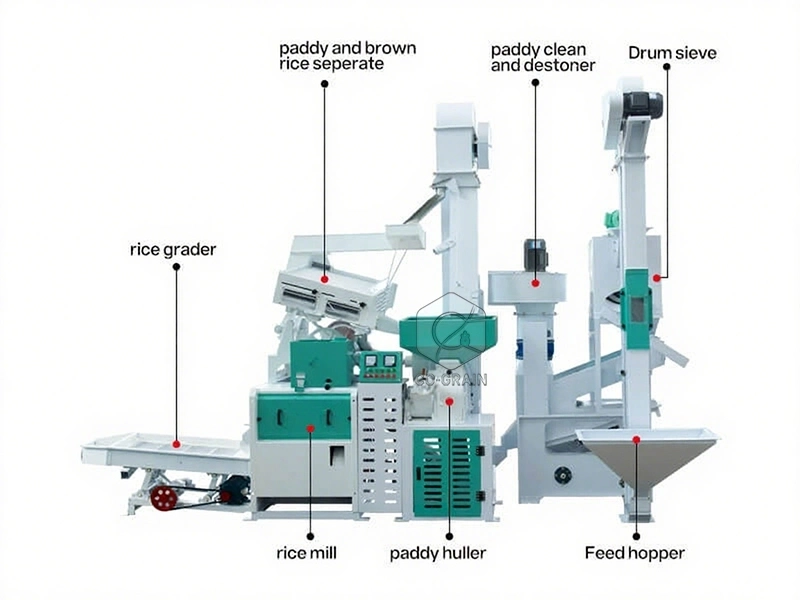

The rice processing machine is also a complete rice processing machine, it contains a combined rice drum cleaning machine, rice destoner, rice hulling machine, rice paddy separator machine, rice whitener, rice elevator, etc. The paddy separation effect is very good, with high working efficiency, and small size can be easily set in any place or station, or farm according to the user's needs. Easy to operate and maintain, with less broken rate.

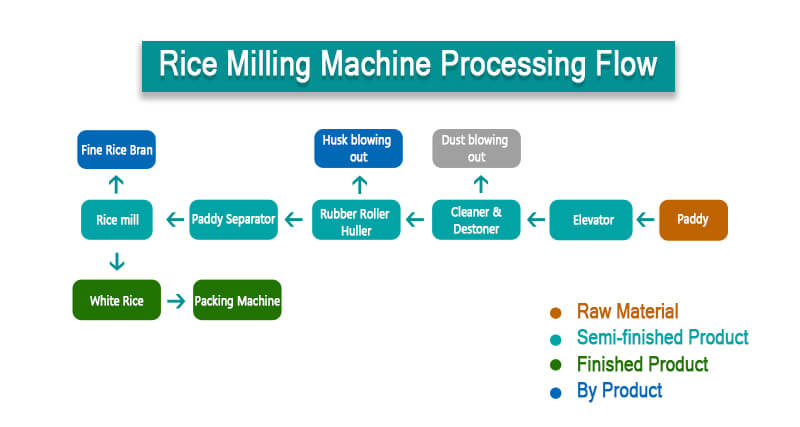

The 20T/D standard rice mill plant can process paddy into national standard rice just in one process at the following flow chart:
Raw material feeding-Vibrated cleaner & Destoner → Rice Husker→Paddy Rice Separator → Rice Mill → Standard White Rice, Then the rice can be on market for sale.
This 20T/D modern combined rice mill machine is a standard automatic rice processing machine, which includes the primary process of paddy cleaning, stone removal, rice separating, rice hulling, rice milling, etc. With one set of rice mill machines, you can get standard rice. Therefore, this type of rice milling equipment is very popular. Welcome, contact us for the details.
Combined Paddy Cleaner: removing all impurities and unfilled grains from the paddy;
Rice Hulling Machine: a rice huller or paddy husker is an agricultural machine used to automate the process of removing the chaff (the outer husks) of grains of rice;
Paddy Separator: it is mainly used for separating brown rice from paddy making use of their differences in specific gravity and friction coefficient in three parts: paddy, brown rice, and a mix of both;
Rice Milling Machine: the rice whitening machine is developed for rice whitening, which is an advanced technology of the world rice mill whitener at present to make rice temperature down, bran content less, and broken increment lower;
Broken Rice Sieve: to separate the good rice and the broken rice;
| NO. | Name | Model | Power |
| 1 | Single elevator 3m | TDTG18/08 | 0.75 |
| 2 | Drum pre-clean machine | SCQY40 | 0.55 |
| 3 | Paddy cleaned and destoner machine | ZQS50A | 1.1 |
| 4 | Fan | 4-72 | 1.5 |
| 5 | Double elevator | TDTG18/08*2 | 0.75 |
| 6 | 6inches rubber roller | LG-15A | 4 |
| 7 | Paddy and rice separate machine | MGCZ70*5A | 0.75 |
| 8 | Sand roller rice mill machine | NS150 | 15 |
Optional Equipment:
White Rice Grader: The broken rice in the finished rice is separated to improve the quality of the finished rice
Rice Polisher: improving the appearance of milled rice by removing remaining bran particles and by polishing the exterior of the milled kernel, making the white rice smoother and brighter
Rice Color Sorter: Selecting the other colors of rice or mildew rice from white rice, to remove the bad rice, black rice, yellow rice, half-husked rice, etc.
Rice Packing Machine: Set the weight of each bag of maters for packing according to your needs and pack the white rice in the bag, preparing milled rice for transport to the customer.
If you need a complete rice mill production line, including a rice polisher, rice grader, rice color sorter, rice packing machine, etc, we also can supply you with the device and design it for you according to your needs.

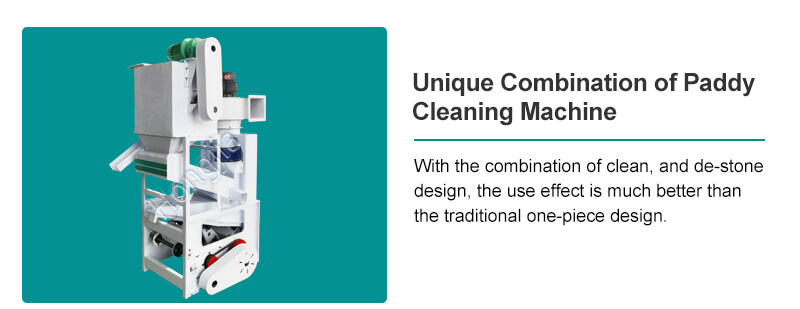

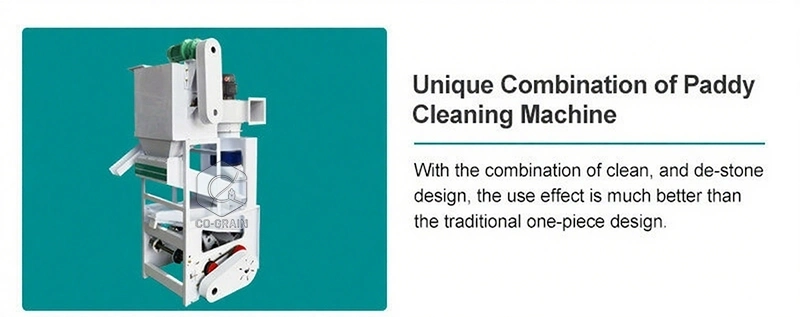

Make a Quick Inquiry Now !Unique Combination of Paddy Cleaning Machine
The combined paddy cleaning machine part is equipped with a trommel, a vibrating screen, and a stone removal machine, which integrates the three functions of vibration, cleaning, and stone removal to achieve a multi-functional cleaning effect. In this way, not only small impurities and stones can be removed, but larger impurities can also be removed, and the cleaning effect is better.
With the combination of clean, vibrate, and de-stone design, the use effect is much better than the traditional one-piece design, the part of the clean part adopts a multi-layer reciprocating rocking mechanism, which is clean and efficient, large air volume design, excellent stone removal effect, combined with high-strength vibration-absorbing bearing configuration, the body movement is stable, firm and reliable, low vibration, low noise, less dust.
The stone removal part adopts the design of large air volume and suction, with large air volume and good stone removal effect;
The cleaning part adopts a multi-layer drum screen mechanism, which has high cleaning efficiency and clean-up, so it can remove fine impurities and stones.

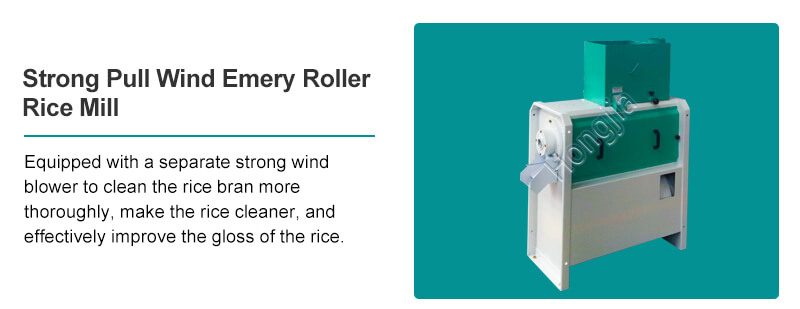

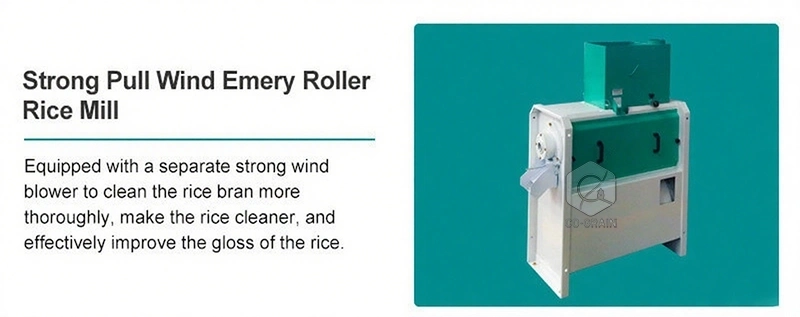

Strong Pull Wind Emery Roller Rice Mill
Equipped with a separate strong wind blower to clean the rice bran more thoroughly, make the rice cleaner, and effectively improve the gloss of the rice.
Lower the temperature of the rice, thereby effectively reducing the rate of broken rice.
The operation height is reduced, the operation is more convenient, and the daily maintenance is convenient.

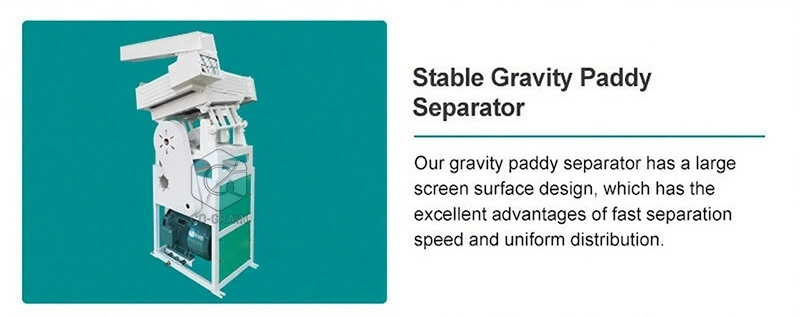

Stable Gravity Paddy Separator
Our gravity paddy separator has a large screen surface design, which has the excellent advantages of fast separation speed and uniform distribution.
The horizontal and vertical angles of the screen surface can be adjusted, so it is suitable for different types of rice.
Low broken rice rate.

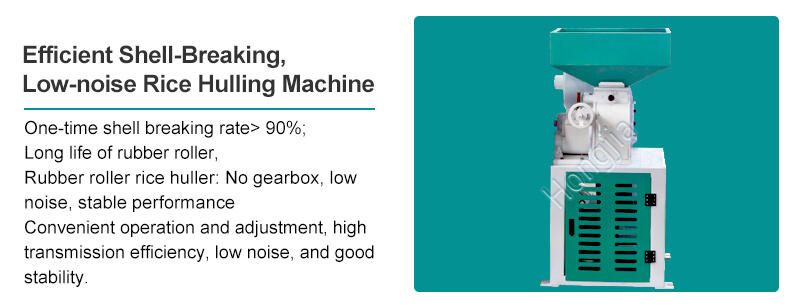

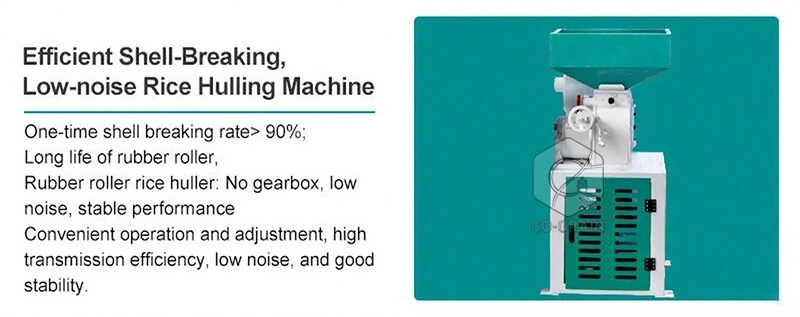

Efficient Shell-Breaking, Low-noise Rice Hulling Machine
One-time shell breaking rate> 90%;
Long life of rubber roller.
Convenient operation and adjustment, high transmission efficiency, low noise, and good stability.

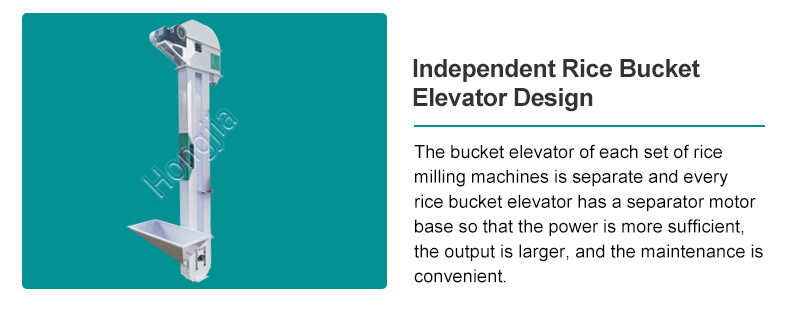

Independent Rice Bucket Elevator Design
The bucket elevator of each set of rice milling machines is separate and every rice bucket elevator has a separator motor base so that the power is more sufficient, the output is larger, and the maintenance is convenient.

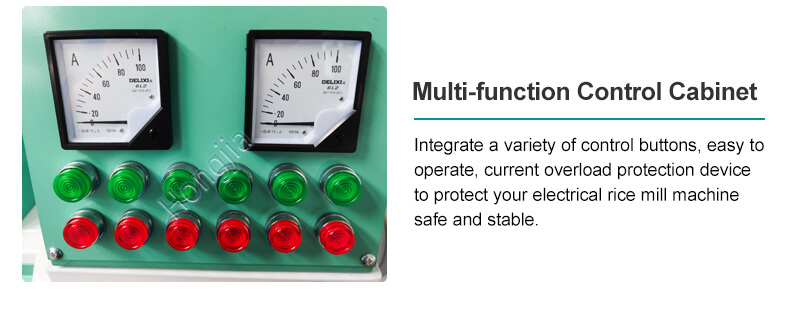

Multi-function Control Cabinet
Integrate a variety of control buttons, easy to operate.
Current overload protection device to protect your electrical rice mill machine safe and stable.
1. This machine integrates multiple functions such as stone removal, vibration, impurity removal, hulling, rice milling, and sieving. Fully automatic operations from paddy to white rice.
2. The new fully automatic rice machine with gravity paddy separator, is easy to operate and convenient
3. Neat and beautiful structure, low energy consumption, convenient operation and maintenance, and easy disassembly and assembly of all equipment
4. The rice milling part of the combined rice mill plant adopts negative pressure rice milling technology, which has low rice temperature, less chaff, and less broken rate
5. Designed according to advanced technological requirements, the complete set of rice mills are arranged in a "one" shape, and the main operations are concentrated on one side, which is convenient for operation
Our rice mill can process steamed rice, white rice, long rice, short rice, glutinous rice, etc. It is very suitable for farmer use, rice process workshop, rice factory, or reselling. Welcome contact us for the details, thanks.
