25T/D Complete Rice Mill

  • Capacity: 25 T/D
  • Power: 87.69Kw
  • Service: Customization, installation, guidance, and training
  • Cooperation: Factory Directly

This is our newly designed rice mill equipment, that can process paddy rice into national standard white rice just in one process. It is suitable for the middle-scale rice milling process, which can process about 1400-1700kg paddy and get about 1000-1200kg white rice per hour.

New Type 25T/D Rice Mill Equipment Introduction

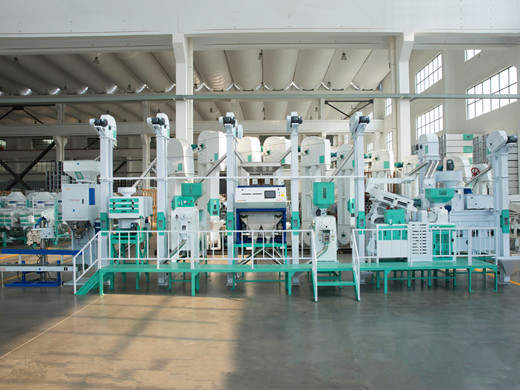

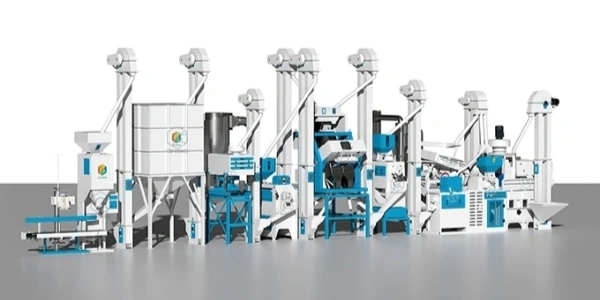

This is our newly designed rice mill equipment, which consists of a whole set of complete rice processing equipment. It can process paddy rice into national standard white rice in one process. This 25T/D rice production equipment is suitable for the middle-scale rice milling process, which can process about 1400-1700kg paddy and get about 1000-1200kg white rice per hour. And the capacity and the machines in the rice mill equipment can be customized to your special requirement. So it’s the most ideal rice processing equipment for urban, rural, small, and medium-sized rice processing plants.

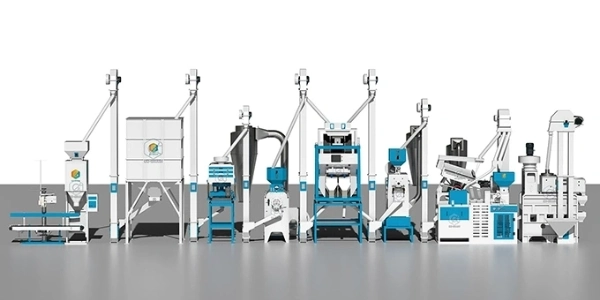

25ton_rice_mill_equipment_cost

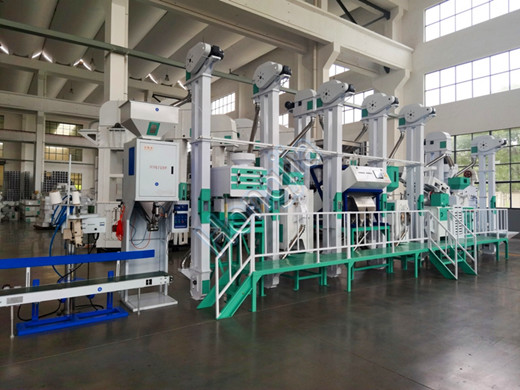

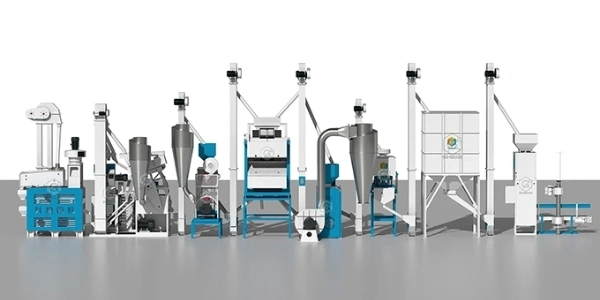

The rice processing equipment is also a complete rice production equipment, which contains a rice cleaning machine, rice destoner machine, rice hulling machine, rice separator machine, rice mill machine, rice polisher machine, rice color sorter machine, rice packing machine, rice elevator, etc. The paddy separation effect is very good, with high working efficiency, and small size can be easily set in any place or station, or farm according to the user's needs. Easy to operate and maintain, with less broken rate.

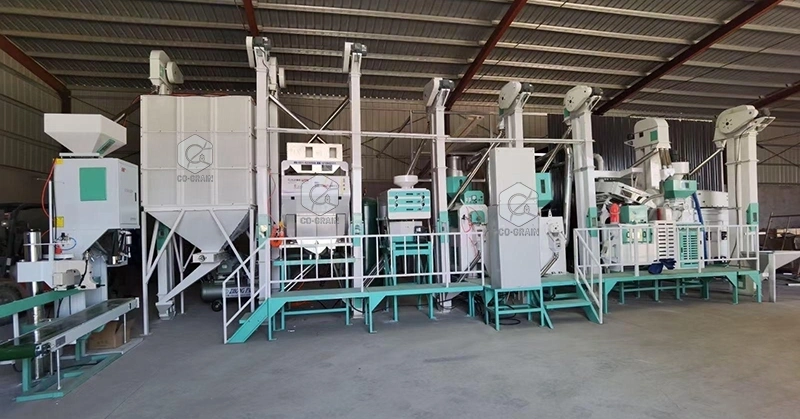

25ton_rice_mill_equipment_supplier
Make a Quick Inquiry Now !

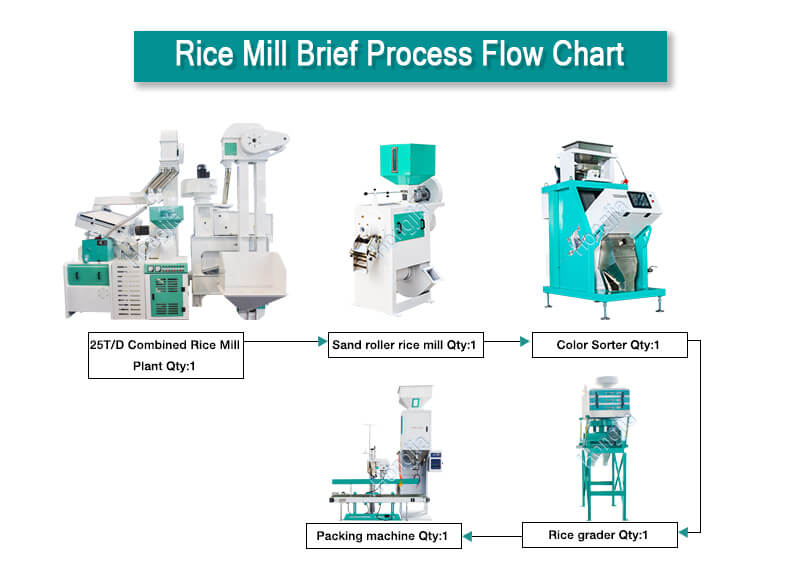

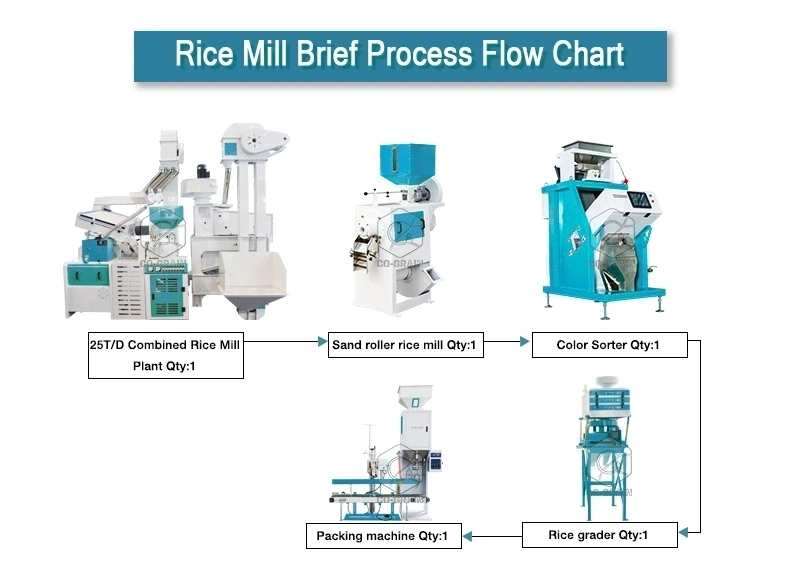

Rice Milling Process Flow Chart

The auto rice mill plant can process paddy into national standard rice just in one process at the following flow chart. Paddy Cleaning-Destoning-Paddy Husking-Husk Separating-Rice Milling-Color Sorting-Rice Grading-Rice Packing.

25ton_rice_mill_equipment_processing_process

25T/D Auto Rice Mill Plant Structure

Our rice milling machine is a fully automatic rice production line, which includes the entire process from paddy cleaning, stone removal, rice milling, rice hulling, grain separation, rice polishing, rice color sorting, and final rice packaging. You no longer need any other machines, you can realize the entire processing from paddy rice to the final finished white rice. Therefore, this complete set of rice milling equipment is very popular. Welcome, contact us for the details.

25ton_rice_mill_equipment_structure
Make a Quick Inquiry Now !

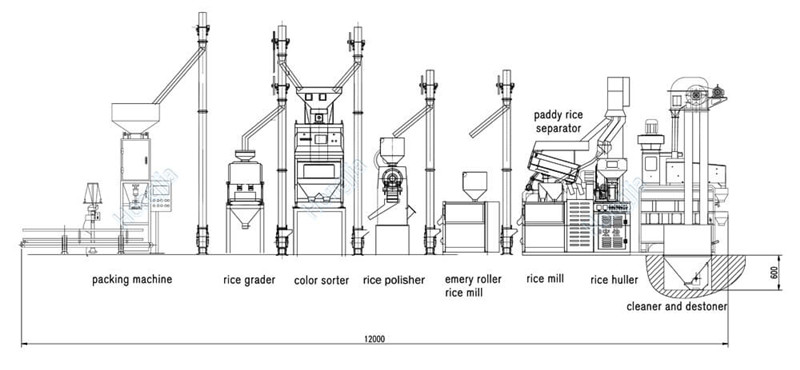

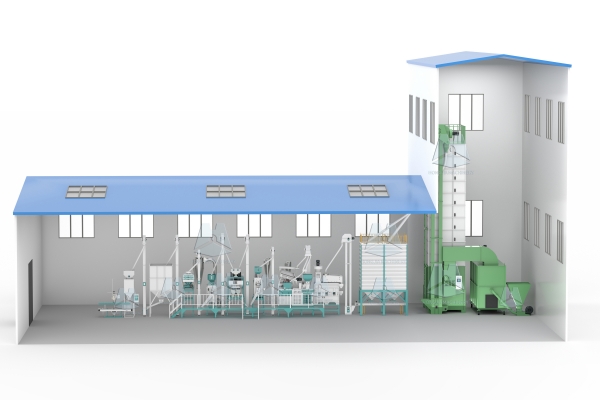

25T/D Rice Mill Equipment Layout Design

Our rice mill machines can be processed independently for agricultural production and continuous processing of commodity rice. It also can be designed according to your different needs. Welcome contact us for the details, thanks.

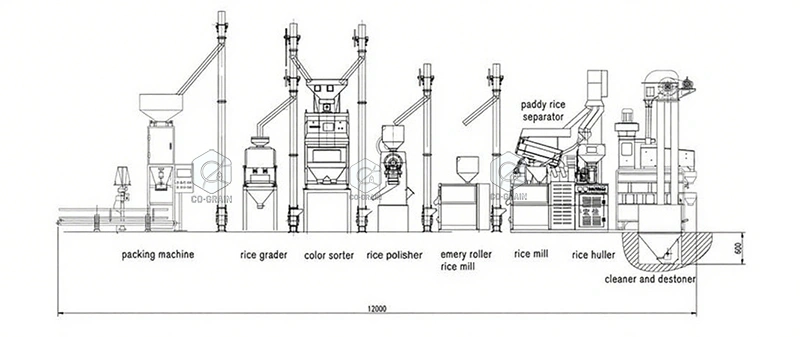

25ton_rice_mill_equipment_layout_design

The Modern Rice Milling System Consists Of:

Paddy Hopper: feeding raw material to the rice mill machine

Paddy Cleaner & De-stoner: other light impurities such as dust and debris, block, the stone should be removed as much as possible to reach a better cleaning effect.

Rice Huller: a rice huller or paddy husker is an agricultural machine used to automate the process of removing the chaff (the outer husks) of grains of rice.

Rice separator: it is mainly used for separating brown rice from paddy making use of their differences in specific gravity and friction coefficient in three parts: paddy, brown rice, and a mix of both.

Rice Mill Machine: the rice whitening machine is developed for rice whitening, which is an advanced technology of the world rice mill whitener at present to make rice temperature down, bran content, and broken increment lower.

Rice polisher: rice polishing machine, which polishes the rice surface by spraying water, which facilities the formation of a smooth gelatinous layer that prolongs the preservation time. Extended polishing chamber to produce high-quality rice.

Rice Grading Machine: the rice grader can sieve milled rice efficiently and accurately into several classes: head rice, large broken, medium broken, small broken, etc.

Rice Color Sorter: the rice color sorting machine is used to sort bad, milky, Chalky, Paddy, and foreign materials out. The CCD signal while blanking is tested. If it is found that there are unqualified rice or impurities in the materials, the ejector will blow the defective goods in the hopper.

Rice Packing Machine: this rationed automatic weighing packing machine consists of a material box, a packing scale, a sewing machine, and a conveyor belt. It can cooperate work with all the model's rice mill production lines, and also for the packing bag capacity can choose 1-50kg per bag for your needs.

No.NameModelQuantity(Set)Single Power(kW)
1Vibrate cleaner and destonerZQS-6011.1+2.2
28 Inch rice hullerLG15A15.5+1.1
3Paddy separatorMGCZ80*510.75
4Rice millMNMS18118.5
5Rice millMNMS15115
6Rice polisherMPG12.8122+7.5
7Rice graderMMJP63*310.75
8Rice color sorterSX-8011.1
9Packing machineDCS-50A10.75
10ElevatorsTDTG18/0870.75*7
11Electric control cabinet 1
12Pipeline 1
13Hopper and accessory 1
Make a Quick Inquiry Now !

Product Details of The 25T/D Rice Mill Plant

1Unique Combination of Paddy Cleaning Machine

With the combination of clean, and de-stone design, the use effect is much better than the traditional one-piece design. Large air volume design, excellent stone removal effect, combined with high-strength vibration-absorbing bearing configuration, the body movement is stable, firm, and reliable, low vibration, low noise, less dust;

The stone removal part adopts the design of large air volume and suction, with large air volume and good stone removal effect;

The cleaning part adopts a multi-layer drum screen mechanism, which has high cleaning efficiency and clean-up, so it can remove fine impurities and stones;

A square rotation screen for the destoner machine will make the paddy cleaner;

25ton_automatic_rice_mills
auto_rice_mill_plants_for_sale

2Strong Pull Wind Emery Roller Rice Mill

Equipped with a separate strong wind blower to clean the rice bran more thoroughly, make the rice cleaner, and effectively improve the gloss of the rice;

Lower the temperature of the rice, thereby effectively reducing the rate of broken rice;

The operation height is reduced, the operation is more convenient, and the daily maintenance is convenient;

25ton_automatic_rice_mill

3Stable Gravity Paddy Separator

Our gravity paddy separator has a large screen surface design, which has the excellent advantages of fast separation speed and uniform distribution;

The horizontal and vertical angles of the screen surface can be adjusted, so it is suitable for different types of rice;

Low broken rice rate;

25ton_automatic_rice_mills_price

4. Efficient Shell-Breaking, Low-noise Rice Hulling Machine

One-time shell breaking rate> 90%;

Long life of rubber roller, Rubber roller rice huller: No gearbox, low noise, stable performance;

Convenient operation and adjustment, high transmission efficiency, low noise, and good stability;

25ton_automatic_rice_mill_supplier

5. Independent Rice Bucket Elevator Design

The bucket elevator of each set of rice milling machines is separate and every rice bucket elevator has a separator motor base so that the power is more sufficient, the output is larger, and the maintenance is convenient.

rice_processing_line_bucket_elevator
Make a Quick Inquiry Now !

25T/D Rice Mill Equipment Features

1. Fully automatic rice production line, less power consumption

2. Compact structure, nice performance, small volume

3. Modern design and high-efficiency output

4. Low noise and less consumption

5. Easy to operate and maintain

6. Output rice with high quality, low broken rate

7. Reasonable price

Rice Mill Machine Application

Our rice mill can process steamed rice, white rice, long rice, short rice, glutinous rice, etc. It is very suitable for farmer use, rice process workshop, rice factory, or reselling. Welcome contact us for the details, thanks.

rice-mill-machine-final-products
