25T/D Standard Rice Mill

  • Capacity: 25 T/D
  • Power: 30.65 Kw
  • Service: Customization, installation, guidance, and training
  • Cooperation: Factory Directly

This 25T/D automatic rice mill machine that can get 1000-1200kg white rice per hour. With our new technical skills, it combined with cleaner and destoner function in a whole, to clean the paddy and then remove the inside stones, then cooperate work with other machines.

25T/D Rice Mill Plant Introduction

This 25T/D Rice Mill Plant is our new design automatic rice mill machine that can get1000-1200kg white rice per hour. With our new technical skills, the destoner machine makes it combined with cleaner and destoner function as a whole, to clean the paddy and then remove the inside stones, then cooperate work with the rice huller machine, paddy rice separator, rice mill machine, rice grader machine. The rice polisher machine, rice color sorter machine, and packing machine can be added according to the client's needs.

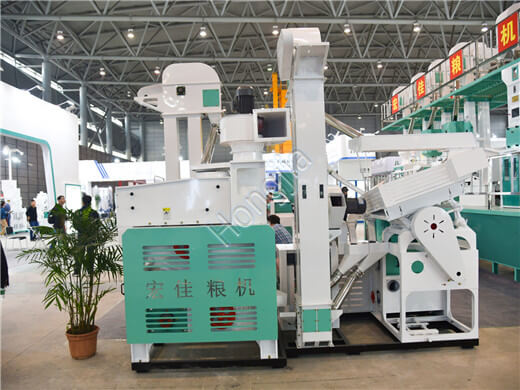

25ton_automatic_rice_mill_price

With a 25ton-per-day capacity, for other details, we can also make and customized for your needs. Compact structure, automatic working, easy to operate, and maintain less broken rate.

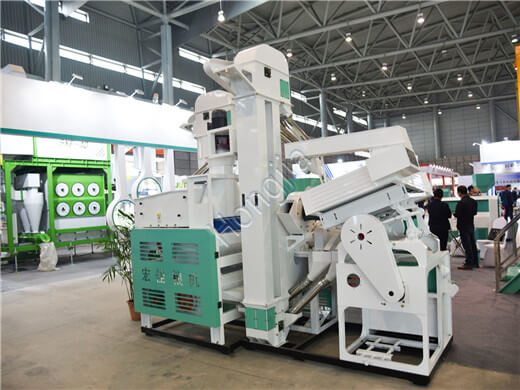

25ton_automatic_rice_mill_for_sale
Make a Quick Inquiry Now !

25T/D Rice Milling Plant Working Process

The 25T/D standard rice mill plant can process paddy into national standard rice just in one process at the following flow chart: Raw material feeding-Vibrated cleaner & Destoner → Rice Husker→Paddy Rice Separator → Rice Mill → Standard White Rice, Then the rice can be on market for sale.

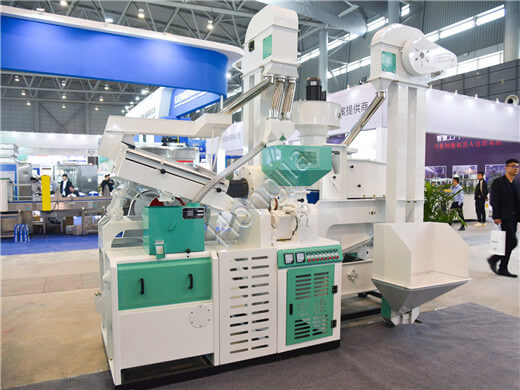

25ton_automatic_rice_mill_working_process

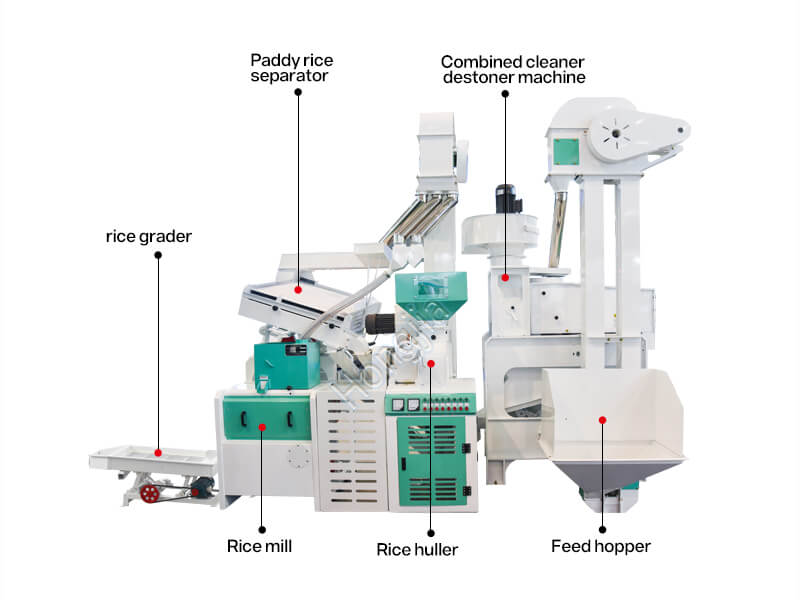

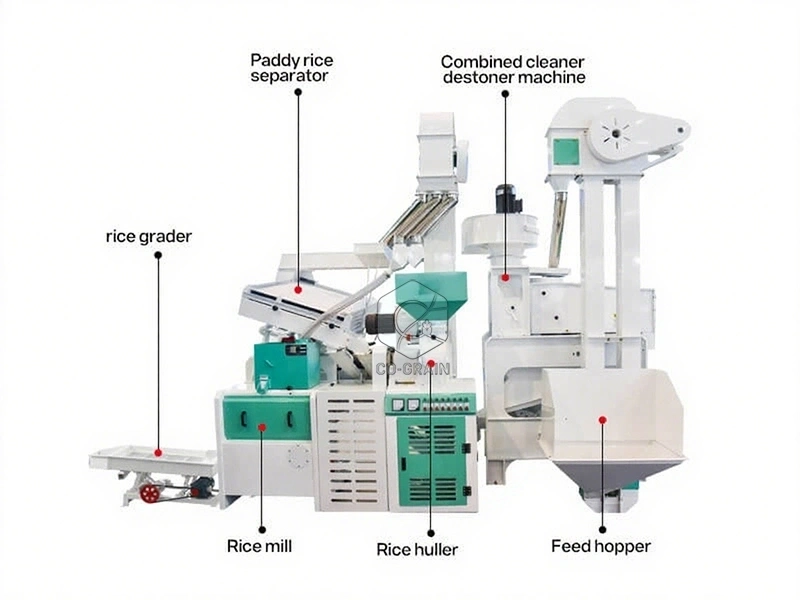

25T/D Rice Milling Plant Structure

This 25T/D modern rice milling machine is a standard automatic rice production line, which includes the main process of paddy cleaning, stone removal, rice separating, rice hulling, rice milling, etc. With one set of rice mill machines, you can get standard rice. Therefore, this type of rice milling equipment is very popular. Welcome, contact us for the details.

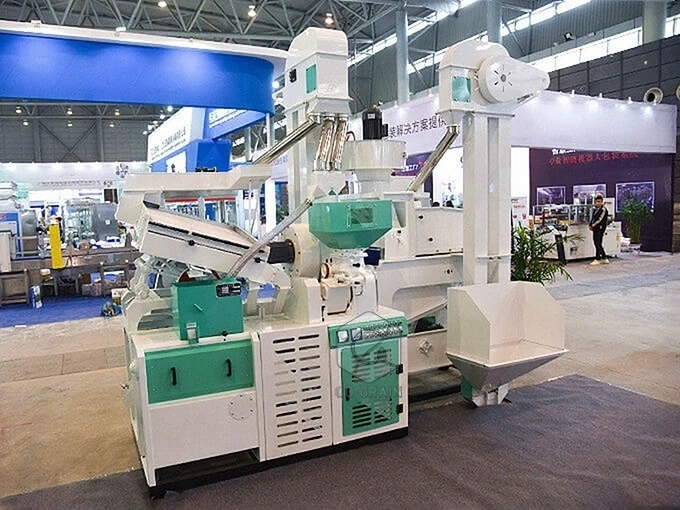

25ton_automatic_rice_mill_structurer
Make a Quick Inquiry Now !

The Modern Rice Milling System Consists of:

Combined Paddy Cleaner: removing all impurities and unfilled grains from the paddy;

Rice Hulling Machine: a rice huller or paddy husker is an agricultural machine used to automate the process of removing the chaff (the outer husks) of grains of rice.

Paddy Separator: it is mainly used for separating brown rice from paddy making use of their differences in specific gravity and friction coefficient in three parts: paddy, brown rice, and a mix of both.

Rice Milling Machine: the rice whitening machine is developed for rice whitening, which is an advanced technology of the world rice mill whitener at present to make rice temperature down, bran content less, and broken increment lower.

Broken Rice Sieve: to separate the good rice and the broken rice.

No.NameModelPower(KW)
1Single ElevatorTDTG18/080.75
2Combined Cleaner and Destoner MachineZQS50A1.1
3Centrifugal Fan4-722.2
4Double ElevatorTDTG18/08*20.75
5Rice HullerLG15A4
6Centrifugal Fan4-721.1
7Paddy Rice SeparatorMGCZ70*5A0.75
8Strong pull wind emery roller rice millNS15015
9Broken rice sieve 0.37

Optional items:

Rice Polishing Machine: rice polishing machine, polishes the rice surface by spraying water, which facilities the formation of a smooth gelatinous layer that prolongs the preservation time. Extended polishing chamber to produce high-quality rice

Rice Color Sorter: the rice color sorting machine is used to sort bad, milky, Chalky, Paddy, and foreign materials out. The CCD signal while blanking is been tested. If it is found that there are unqualified rice or impurities in the materials, the ejector will blow the defective goods in the hopper.

Rice Packing Machine: rice weighing and bagging: preparing milled rice for transport to the customer.

Make a Quick Inquiry Now !

25T/D Rice Mill Plant Product Details

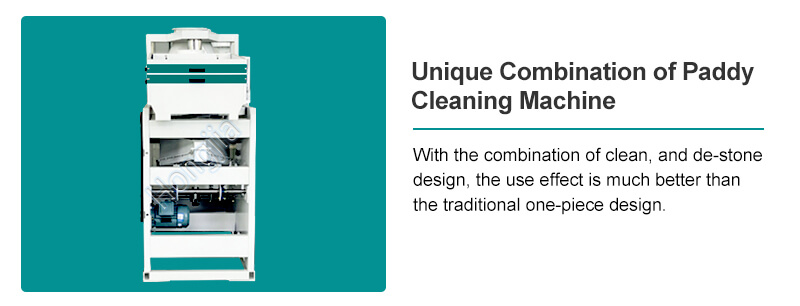

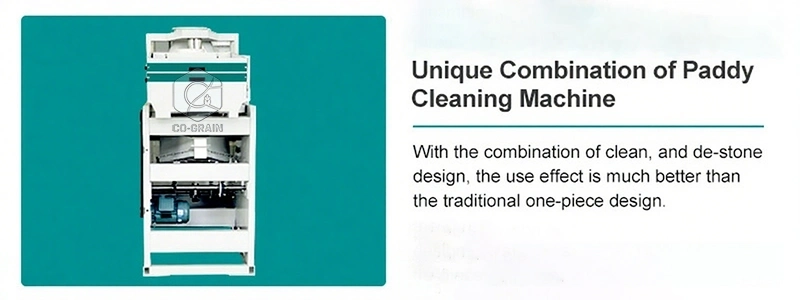

1. Unique Combination of Paddy Cleaning Machine

With the combination of clean, and de-stone design, the use effect is much better than the traditional one-piece design. Large air volume design, excellent stone removal effect, combined with high-strength vibration-absorbing bearing configuration, the body movement is stable, firm, and reliable, low vibration, low noise, less dust;

The stone removal part adopts the design of large air volume and suction, with large air volume and good stone removal effect;

The cleaning part adopts a multi-layer drum screen mechanism, which has high cleaning efficiency and clean-up, so it can remove fine impurities and stones;

A square rotation screen for the destoner machine will make the paddy cleaner;

25ton_automatic_rice_mills
auto_rice_mill_plants_for_sale

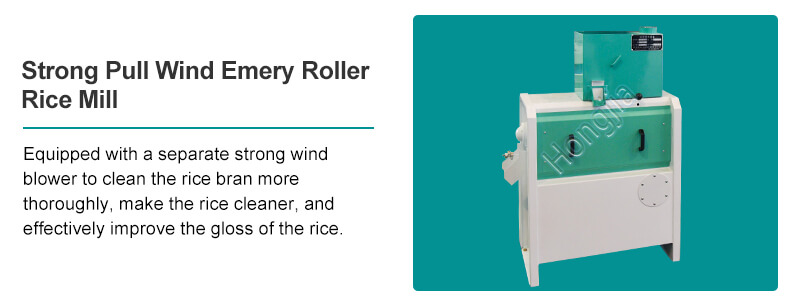

2. Strong Pull Wind Emery Roller Rice Mill

Equipped with a separate strong wind blower to clean the rice bran more thoroughly, make the rice cleaner, and effectively improve the gloss of the rice.

Lower the temperature of the rice, thereby effectively reducing the rate of broken rice

The operation height is reduced, the operation is more convenient, and the daily maintenance is convenient.

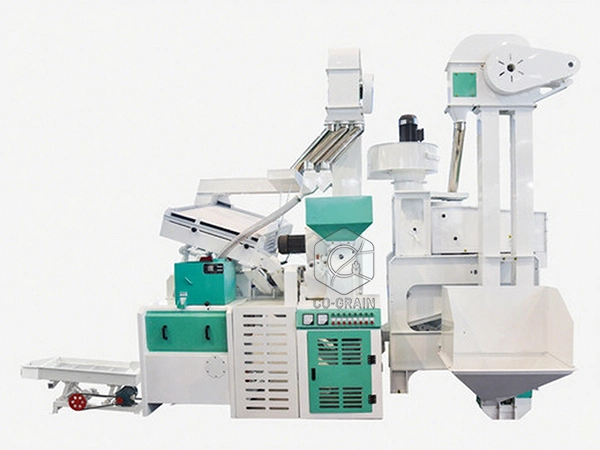

25ton_automatic_rice_mill

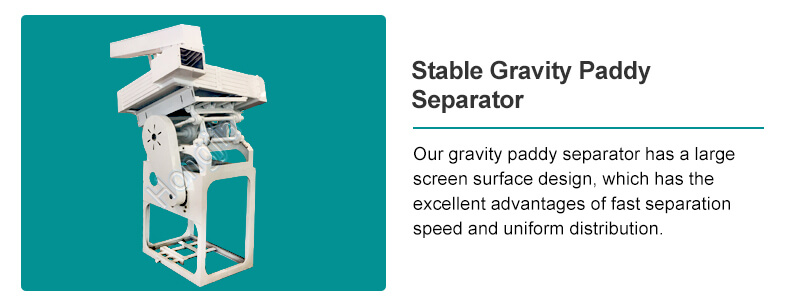

3. Stable Gravity Paddy Separator

Our gravity paddy separator has a large screen surface design, which has the excellent advantages of fast separation speed and uniform distribution;

The horizontal and vertical angles of the screen surface can be adjusted, so it is suitable for different types of rice;

Low broken rice rate;

25ton_automatic_rice_mills_price

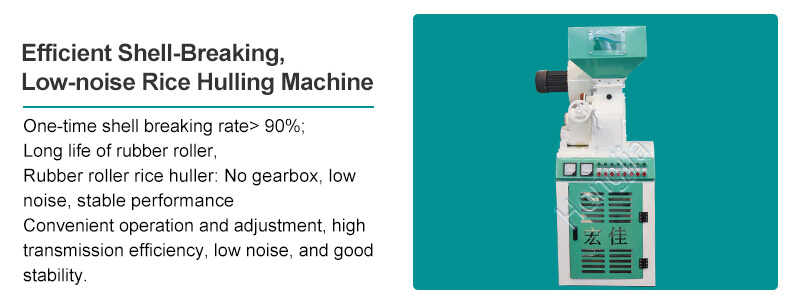

4. Efficient Shell-Breaking, Low-noise Rice Hulling Machine

One-time shell breaking rate> 90%;

Long life of rubber roller, Rubber roller rice huller: No gearbox, low noise, stable performance;

Convenient operation and adjustment, high transmission efficiency, low noise, and good stability;

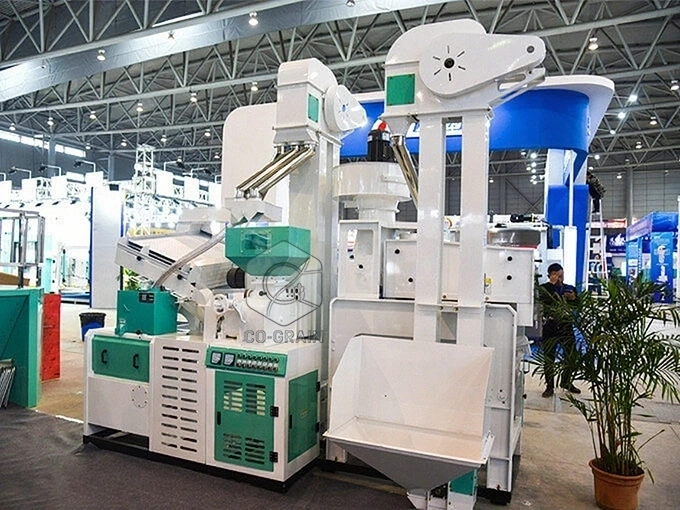

25ton_automatic_rice_mill_supplier

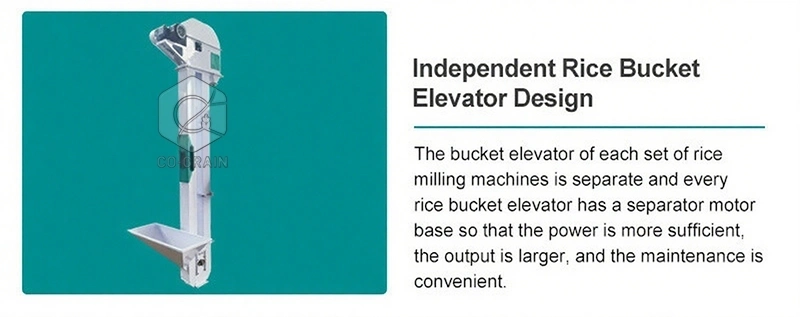

5. Independent Rice Bucket Elevator Design

The bucket elevator of each set of rice milling machines is separate and every rice bucket elevator has a separator motor base so that the power is more sufficient, the output is larger, and the maintenance is convenient.

rice_processing_line_bucket_elevator

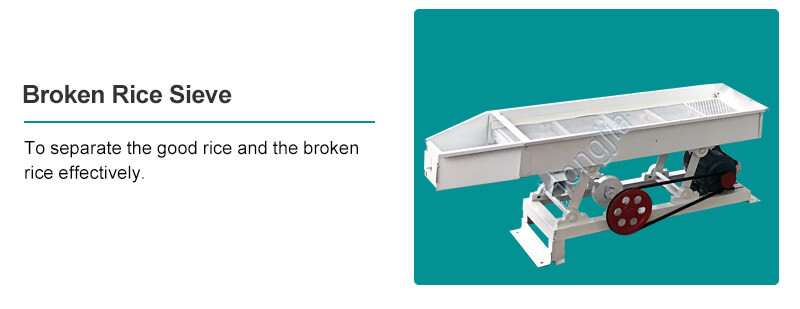

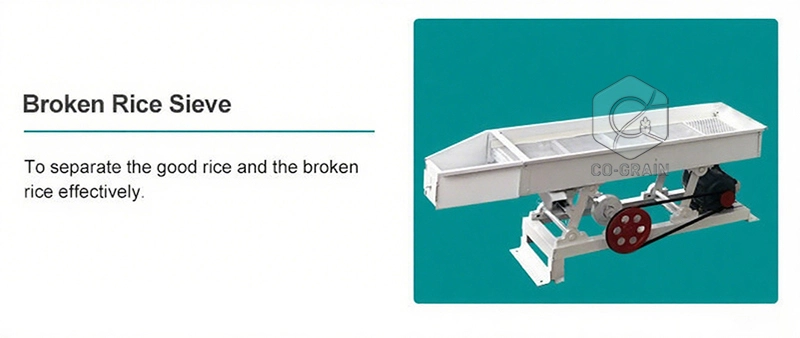

Broken Rice Sieve

To separate the good rice and the broken rice effectively.

auto_rice_mill_plant_price

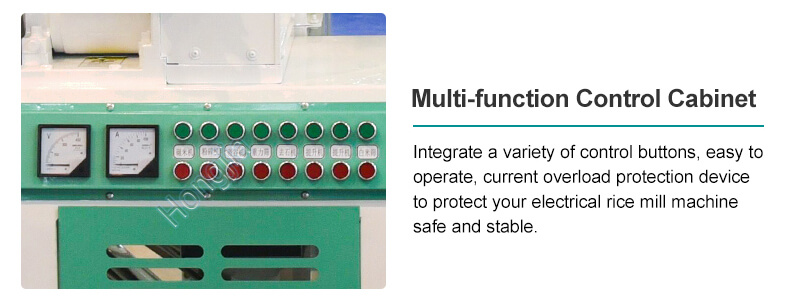

Multi-function Control Cabinet

Integrate a variety of control buttons, easy to operate;

Current overload protection device to protect your electrical rice mill machine safe and stable;

25ton_automatic_rice_mill_manufacturer
Make a Quick Inquiry Now !

25T/D Auto Rice Mill Plant Features

1. Fully automatic rice production line, less power consumption

2. Compact structure, nice performance, small volume

3. Modern design and high-efficiency output

4. Low noise and less consumption

5. Easy to operate and maintain

6. Output rice with high quality, low broken rate

7. Reasonable price

Rice Mill Machine Application

Our rice mill can process steamed rice, white rice, long rice, short rice, glutinous rice, etc. It is very suitable for farmer use, rice process workshop, rice factory, or reselling. Welcome contact us for the details, thanks.

rice-mill-machine-final-products
