Rice Bucket Elevator

Leading Manufacturer & Exporters of different types rice bucket elevator, it is also known as rice mill elevator, paddy elevator, etc. It is most used in the rice mill plant to convey the paddy from one machine to another. Different capacity and types for your choice, it also can be custom according to your need.

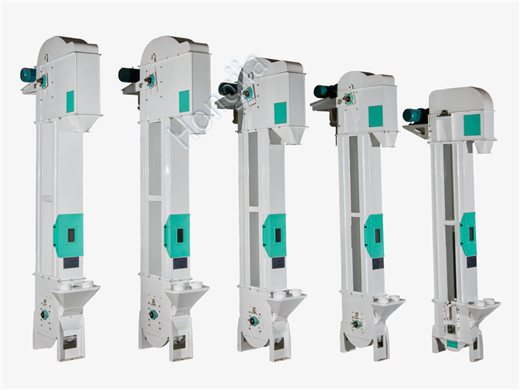

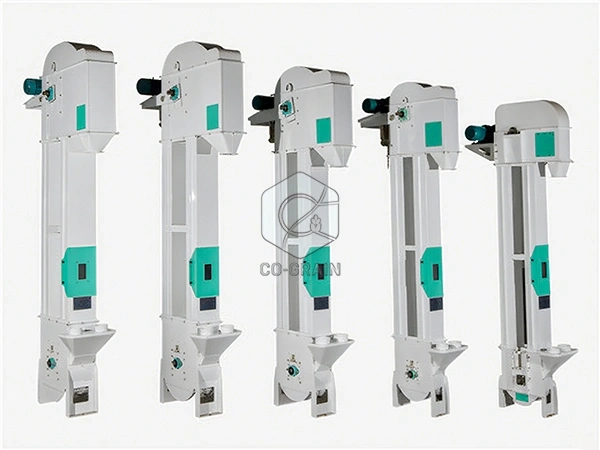

Low Speed Bucket Elevator

Low Speed Bucket Elevator
  • Low Speed Bucket Elevator
  • Low Speed Bucket Elevator
  • Low Speed Bucket Elevator
Get Best Quote
Product Price :Get Latest Price

Low Speed Bucket Elevator Product Details:

Model W4 W6 W10 W15 W20 W30
Capacity(t/h) 4t/h 6t/h 10t/h 15t/h 20t/h 30t/h
Power(kw)(<10m) 1.1 1.1 1.5 2.2 3 4
Standard height(m) 5.3 5.5 5.8 6 6 6.3
Bucket model 1010 1413 1715 2017 2517 2921
Bucket belt width(mm) 120 160 190 220 260 320
Head and tail(m) 1.3 1.5 1.8 2 2 2.3
Pipe thickness(mm) 1.2 1.2 1.2 1.2 1.2 1.5
Weight(kg) 250 300 400 550 600 850

The bucket elevator is a type of continuous conveying machine to convey materials continuously and vertically, and the hopper is automatically loaded through the tail, and then throws the material after running the head sprocket. The bucket elevator takes advantage of motor rotation to drive the shaft-coupling, head wheel and bucket belt to lift the materials in the buckets fixed in the bucket belt to the required height from the bottom of the elevator, then send them into the bin.


Additional Information:

  • Capacity:4-30t/h
  • Application: It can be widely used in feed mills, flour mills, rice mills and oils of various scales. Improvement of bulk materials in factories, starch factories, grain depots, port terminals, etc.
  • Bucket belt width:150-520(mm)
  • Service: Customization, guidance and training
  • Cooperation: Factory Directly
  • MOQ: 1set
  • Brand: Hongjia
Request
Callback

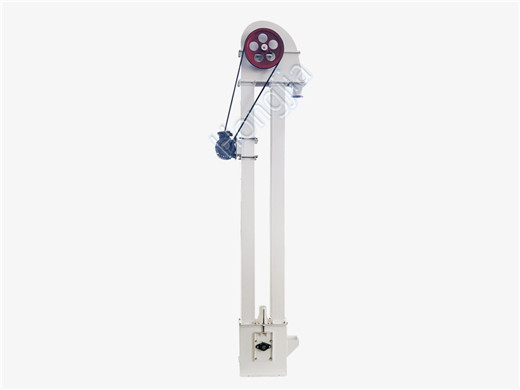

TDTG Bucket Elevator

TDTG Bucket Elevator
  • TDTG Bucket Elevator
  • TDTG Bucket Elevator
  • TDTG Bucket Elevator
  • TDTG Bucket Elevator
Get Best Quote
Product Price :Get Latest Price

TDTG Bucket Elevator Product Details:

Model TDTG18/07 TDTG18/09 TDTG20/11 TDTG20/13 TDTG20/16 TDTG20/18 TDTG26/23 TDTG36/28 TDTG50/33
Capacity(t/h) 1-1.5 1.5-2 3 5 8 10 15 25 50
Power(kw) 0.75 0.75 0.75 1.1 1.5 1.5 2.2 3 4
Standard height(m) 3 5 5 5 5 5 5.5 6 6.5
Bucket model 0705 0907 1109 1311 1612 1812 2314 2816 3321
Bucket belt width(mm) 80 100 125 150 180 200 250 300 350
Head and tail(m) 1 1 1 1 1 1 1.5 2 2.5
Pipe thickness(mm) 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.5 2
Weight(kg) 130 200 220 250 280 300 450 550 950

TDTG bucket elevator allows high efficiency and lower capacity vertical elevating of grains, pellet, or powder materials in grain, food, feed, and chemical industry, etc. Employed by advanced designs of round foundation structure, driving pulley, plastic-covered head pulley, this bucket elevator conveyor fulfills reliable conveying of materials with low residual, strong stability, in work.

Additional Information:

  • Capacity:3-50(t/h)
  • Service: Customization, guidance and training
  • Cooperation: Factory Directly
  • MOQ: 1set
  • Brand: Hongjia
Request
Callback

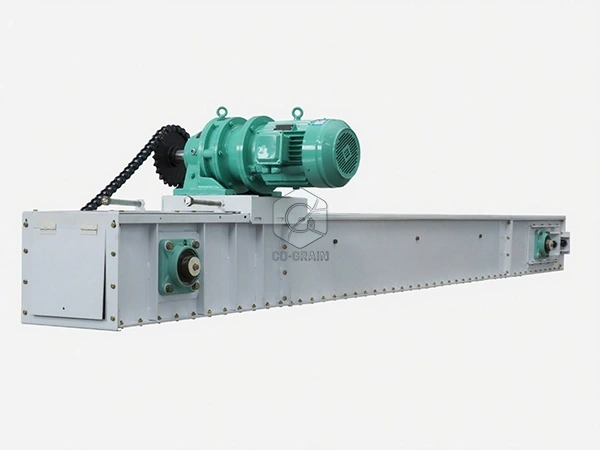

TGSS Scraper Conveyor

TGSS Scraper Conveyor
  • TGSS Scraper Conveyor
  • TGSS Scraper Conveyor
  • TGSS Scraper Conveyor
  • TGSS Scraper Conveyor
Get Best Quote
Product Price :Get Latest Price

TGSS Scraper Conveyor Product Details:

Model TGSS32 TGSS40
Capacity(t/h) 45-60 60-100
Scraper width 320 400
Chain which affects 0.2-0.3 0.2-0.3

This TGSS Series Scraper Conveyor is a kind of continuous conveying equipment for bulk materials in an enclosed rectangular section shell using a moving scraper chain. It is mainly used for conveying powder, granular and small pieces of materials. It can be widely used in the horizontal transportation of bulk materials in rice mill factories, feed factories, flour factories, oil factories, starch factories, grain depots, port terminals, and so on.

Additional Information:

  • Capacity:45-100 (t/h)
  • Service: Customization, guidance and training
  • Cooperation: Factory Directly
  • MOQ: 1set
  • Brand: Hongjia
