500T/D Rice Mill Plant

  • Capacity: 500 T/D
  • Power: 500 Kw
  • Service: Customization, installation, guidance, and training
  • Cooperation: Factory Directly

Complete rice milling plant is the process that helps to detach hulls and bran's from paddy to produce polished rice. The objective of a rice milling system is to remove the husk and the bran layers from paddy to produce white rice kernels that are sufficiently milled free of impurities and contain a minimum number of broken kernels.

500T/D Large Rice Mill Plant Introduction

Complete rice milling plant is the process that helps to detach hulls and bran's from paddy grains to produce polished rice. The objective of a rice milling system is to remove the husk and the bran layers from paddy rice to produce whole white rice kernels that are sufficiently milled free of impurities and contain a minimum number of broken kernels.

The 500ton/day complete rice processing plant is designed to produce high-quality refined rice. From paddy cleaning to rice packing, the operation is completely automatical controlled. Meticulously tested on various quality parameters under the guidance of our experienced professionals, these large-scale complete rice processing lines are recognized for their reliable performance, less maintenance, longer service life, and enhanced durability.

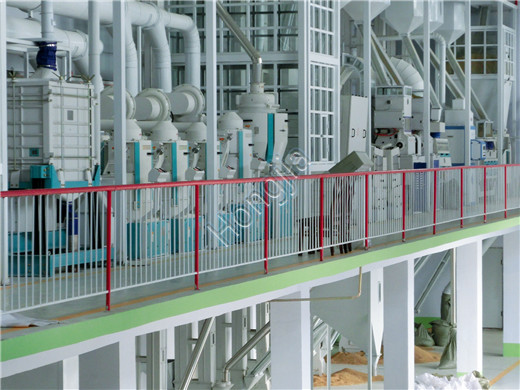

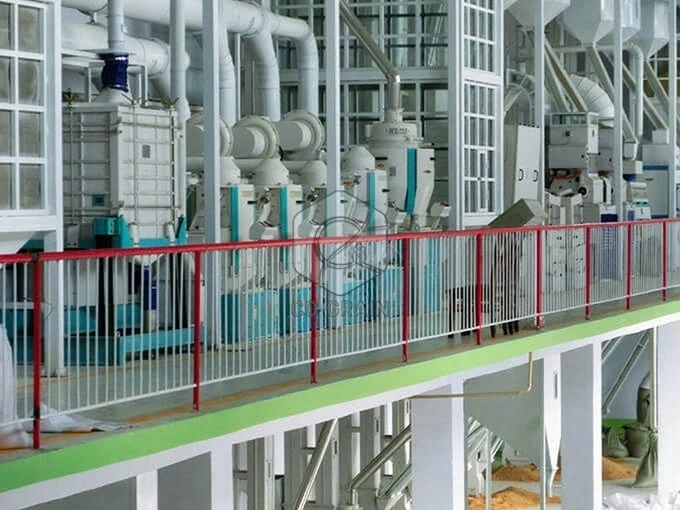

500ton_rice_mill_plant_cost

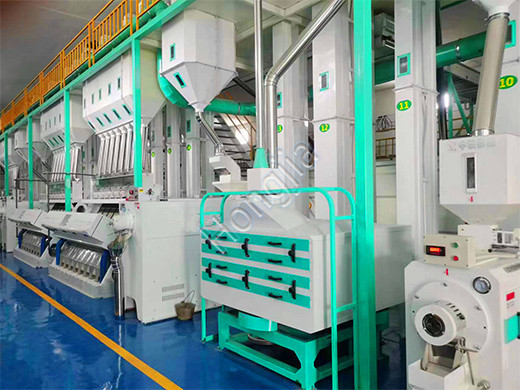

500ton_rice_mill_plant

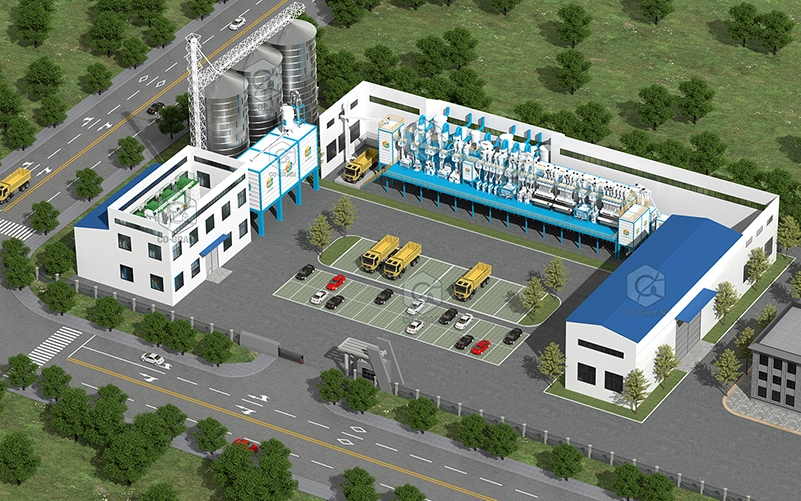

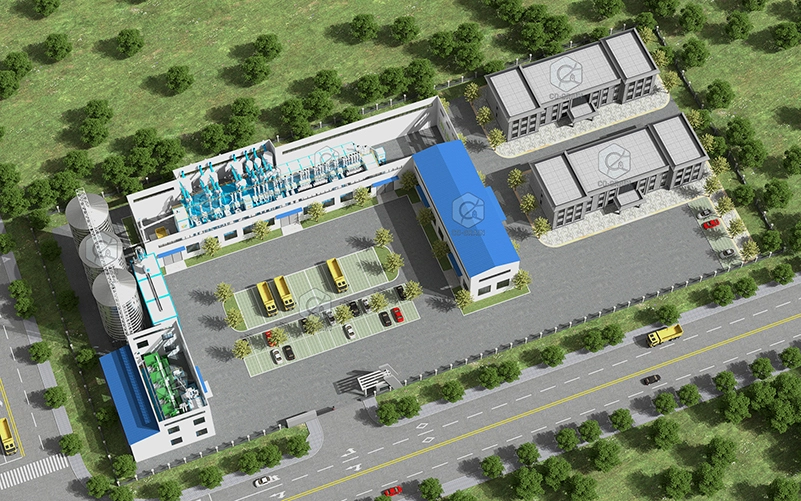

We can also design the rice mill production line according to the different requirements of different users. Including the production capacity of the production line, as well as all rice mills, rice polishing machines, rice color sorters, rice hullers, rice packaging machines, dust collectors, etc. The structure of the rice mill production line can be a simple one-layer structure or a multi-layer structure. We will customize the special rice milling line design plan for you according to your detailed requirements.

We offer complete set rice mills from 10-500T/D, these rice mill plants come with high rice yield and good white rice quality.

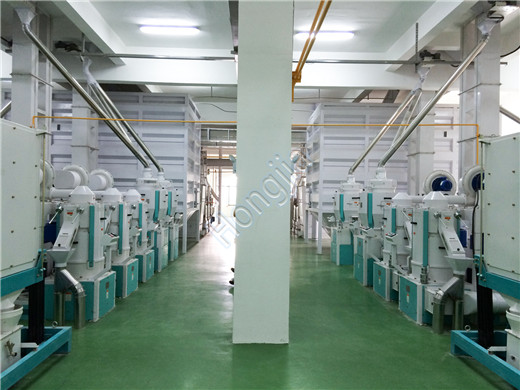

500ton_rice_mill_plant_price

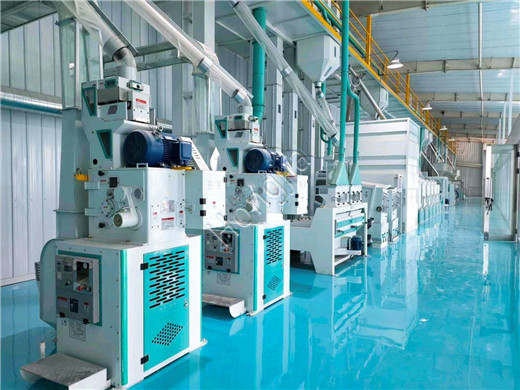

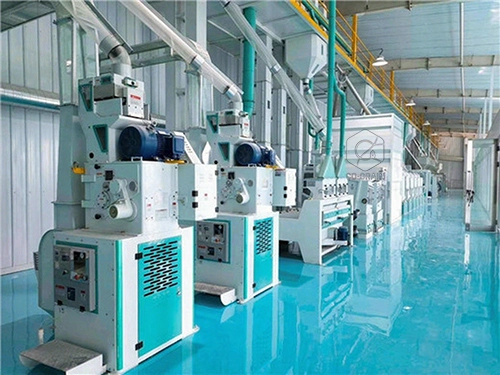

500ton_rice_mill_plant (9)
Make a Quick Inquiry Now !

500T/D Complete Rice Mill Plant Working Process

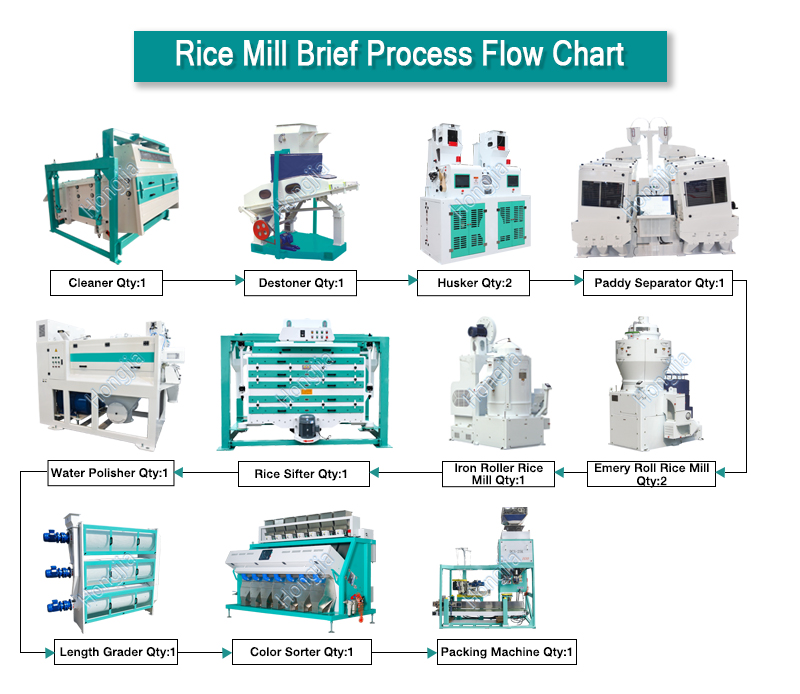

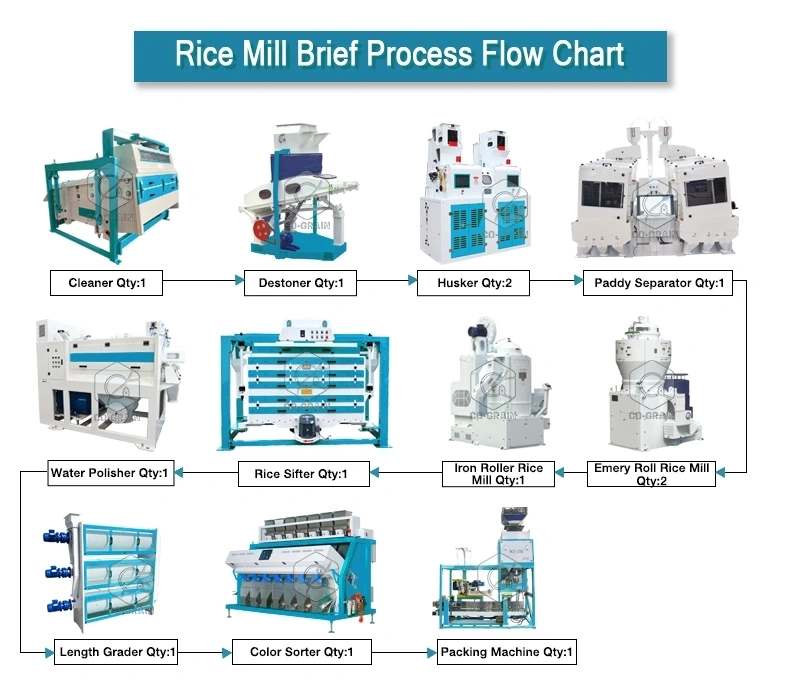

The 500T/D complete rice mill project can process paddy into national standard rice just in one process at the following flow chart: Raw material feeding-Vibrated cleaner & Destoner → Rice Husker→Paddy Rice Separator → Rice Mill →Rice Polisher → Rice Grader→ Rice Color Sorter → Packing, Then the rice can be on market for sale.

500ton_rice_mill_plants_working_process

Modern Rice Milling System Consists Of:

Paddy Cleaner: The paddy cleaner is designed for pre-cleaning and cleaning raw grains and seeds, grading by size, and removing large and small impurities, and dust with an aspirator system. The Cleaner can be adapted for use as a Silo Intake Separator with a Hopper at the stock outlet.

Paddy Destoner: remove stones from grins, utilizing bulk density.

Paddy Husker: we adopt unique technologies into the new paddy husker for superior performance.

Paddy Separator: It separates a mixture of paddy and brown rice into three distinct classes: paddy, paddy mixture of paddy and brown rice, and brown rice. To be sent to a husker, back to the paddy separator, and to a rice whitener, respectively.

Vertical Rice Whitener: The vertical rice polisher series of vertical friction rice whitening machines incorporates advanced technology of the world rice mill whitener at present for milling rice of all degrees of whiteness with the minimum break making it the ideal machine for modern rice mills.

Rice Polisher: improving the appearance of milled rice by removing remaining bran particles and by polishing the exterior of the milled kernel;

Rice Grader: The rice grader can sieve milled rice efficiently and accurately into several classes: head rice, large broken, medium broken, small broken, etc.

Color Sorter: sort bad, milky, Chalky, Paddy, and foreign materials out. The CCD signal while blanking is tested. If it is found that there are unqualified rice or impurities in the materials, the ejector will blow the defective goods in the hopper.

Rice Blending Machine: mix head rice with a predetermined amount of broken, as required by the customer;

Rice Packaging Machine: rice weighing and bagging: preparing milled rice for transport to the customer.

The Optional Machines for 500T/D Rice Mill Plant

Thickness Rice Grader,

Length Grader,

Rice Husk Hammer Mill,

Bags type dust collector or Pulse dust collector,

Magnetic separator,

Flow Scale,

Rice Hull Separator, etc.

Make a Quick Inquiry Now !

500T/D Complete Rice Mill Plant Processing Process

 1. Cleaning

In this stage we remove the dust from the paddy, if the paddy has dust when it is soaking it will pollute the water and influence the nutrition of rice.

2. Husking

After soaking and steaming it will be very easy to husk the paddy and save energy.

3. Milling

The pearling of pre-boiled rice cost much more time than normal paddy.

The reason is that after soaking the rice is easy to become smectic. To avoid this problem we use a blowing rice miller, and increase the rotating speed of the rice miller, the rice bran transmission adopts a pneumatic type to reduce the friction.

4. Polishing and Grading

A grading machine is used to separate different quality rice and separate broken rice from the good ones.

Good rice come through the polishing machine, it will make the milling rice become a more beautiful color and more smooth, thus increasing the quality of rice.

5. Color sorting

The rice we get from the above step still has some bad rice, broken rice, or some other grains or stone. So here we use a color sorting machine to select the bad rice and other grains. The color sorting machine is an important machine to ensure we can get high-quality rice.

6. Packing.

The finished rice now is ready dear all! Let's use our automatic weighing and packing machine to make them into 5kg 10kg or 50kg bags. This machine is an electric type, you can set it like a small computer, then it will start working according to your request.

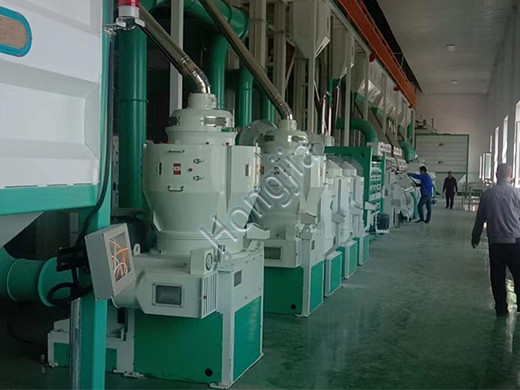

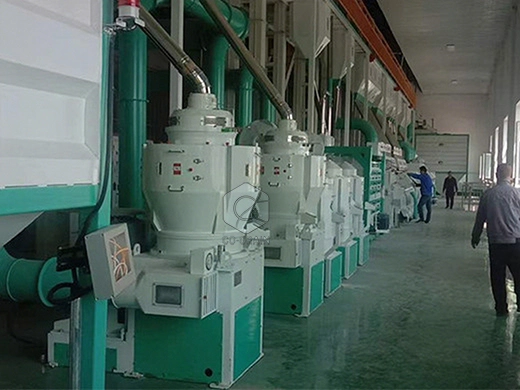

500ton_rice_mill_plants_for_sale

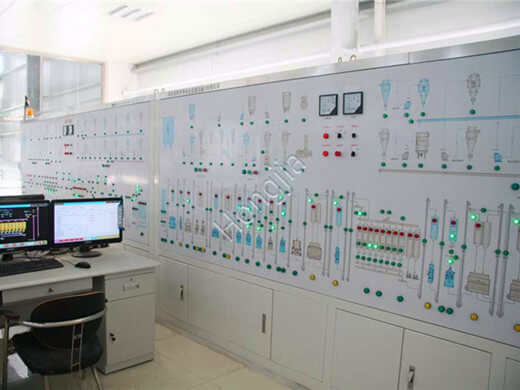

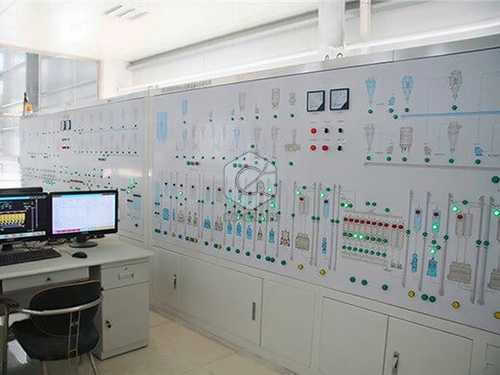

500ton_rice_mill_plant_manufacturer
Make a Quick Inquiry Now !

500T/D Large Rice Mill Plant Advantages

1. Our complete set rice mill plant covers an area of an area small, small investment, and applies the latest technology of rice milling, improving the milled rice rate, reducing broken, lower temperature meters, good bran removal effect, stable mechanical performance, convenient operation, and maintenance.

2. Every major operation unit is driven by an independent generator, which is controlled by an independent control panel.

3. Craftwork can be designed specially, combined flexibly, and processed into different kinds of excellent rice according to different clients' needs.

4. The device is coated with a technique of static spray coating; the coating looks smooth and fine and is Weatherproof.

5. The feeding pipes are made of smooth glass, which looks good and is very durable, too.

6. What's more, it is environment-friendly inters of adopting a high-effective dust collecting unit to get rid of dust.

Rice Mill Machine Application

Our rice mill can process steamed rice, white rice, long rice, short rice, glutinous rice, etc. It is very suitable for farmer use, rice process workshop, rice factory, or reselling. Welcome contact us for the details, thanks.

This 500T/D complete rice mill project is a fully automatic rice production line, which includes the entire process from paddy cleaning, stone removal, rice hulling, rice separating, rice milling, rice polishing, and rice color sorting, rice grading, and final rice packaging. You no longer need any other machines, you can realize the entire processing from paddy rice to the final finished white rice. Therefore, this complete set of rice milling equipment is very popular. Welcome, contact us for the details.
