200T/D Rice Mill Plant

  • Capacity: 200 T/D
  • Power: 350 Kw
  • Service: Customization, installation, guidance, and training
  • Cooperation: Factory Directly

This 200T/D rice mill plant is a large customized rice processing plant that can get 8-9ton final rice from paddy rice. It contains a paddy rice cleaner, rice de-stoner, rice huller, paddy rice separator, rice mill, rice polisher, rice color sorter machine, rice packing machine, etc.

200T/D Rice Mill Plant Introduction

Our 200T rice mill plant is a large customized rice processing machine that can get 8-9ton final rice from paddy rice. It contains a paddy rice cleaner machine, rice de-stoner machine, rice huller machine, paddy rice separator machine, rice mill machine, rice polisher machine, rice color sorter machine, rice packing machine, and rice elevators: high working efficiency and low broken rice rate.

All the rice mill machine details and install sizes can be customized according to your needs, for the rice mill processing plant also can be customized into different capacities for your needs.

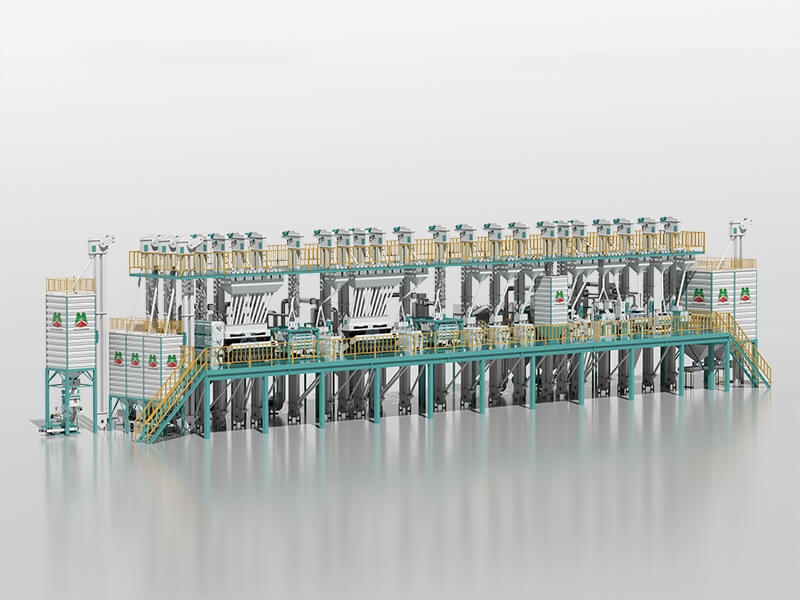

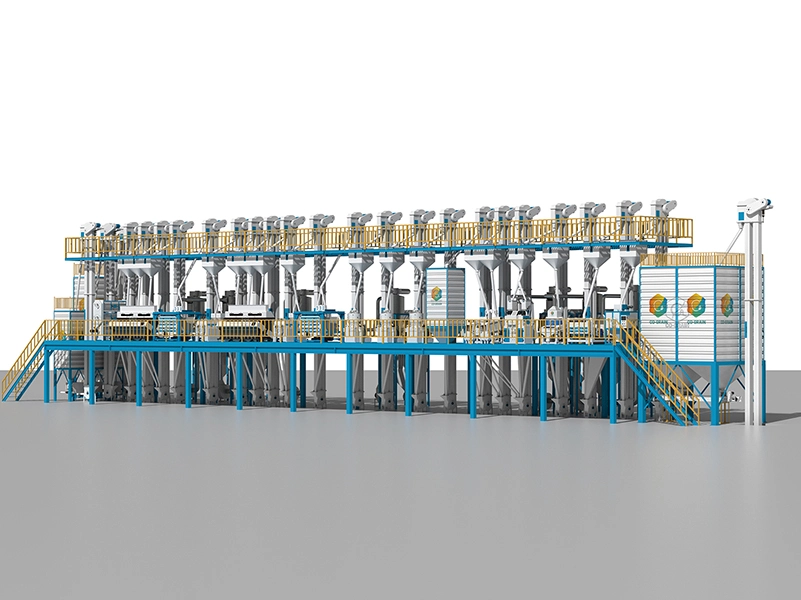

200t_rice_mill_equipments_price

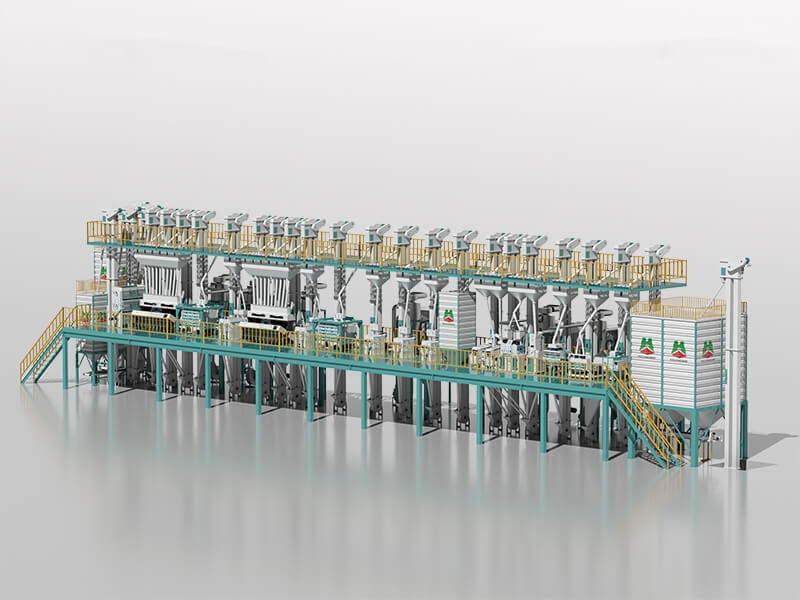

200t_rice_mill_equipments

This model rice mill production line is suitable for larger farmers or some rice wholesale factories, we can send technical workers to go to help the client to make the machine installation and make the drawing for the machine set designs.

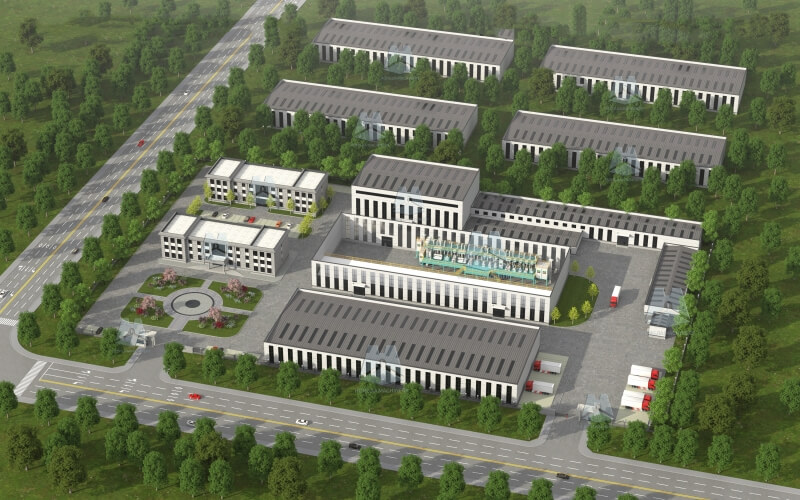

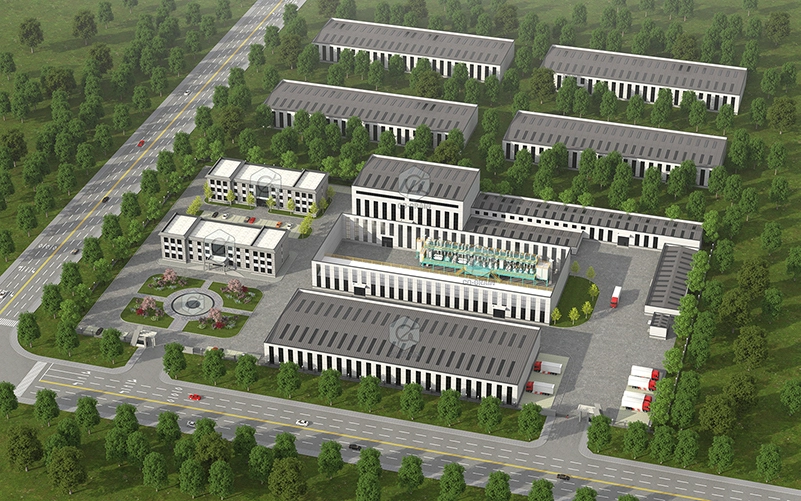

200t_rice_mill_equipments_layout_design

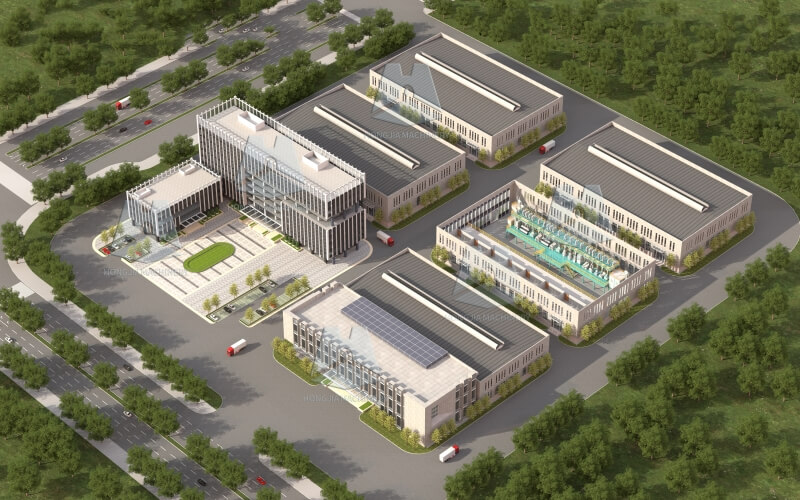

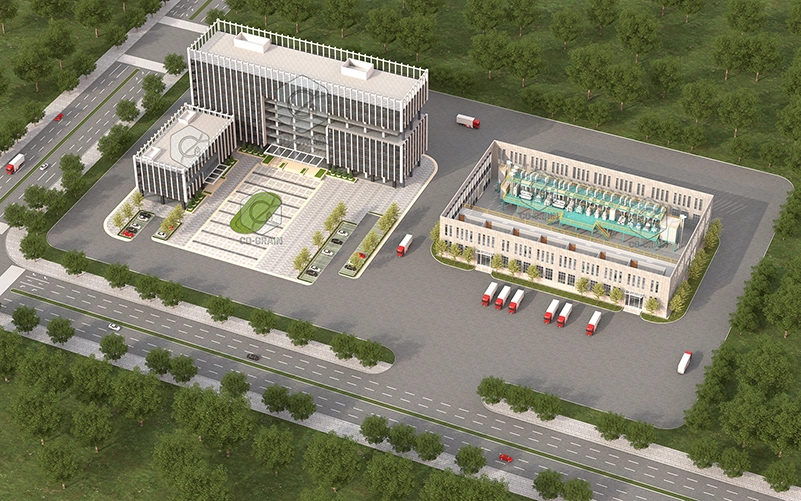

200t_rice_mill_equipments_3D_design
Make a Quick Inquiry Now !

200T/D Complete Rice Mill Plant Working Process

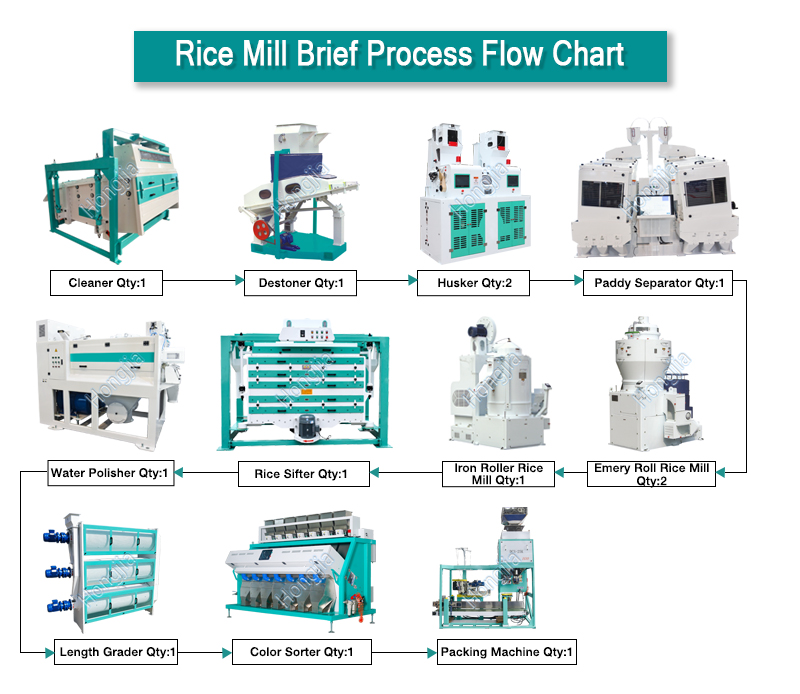

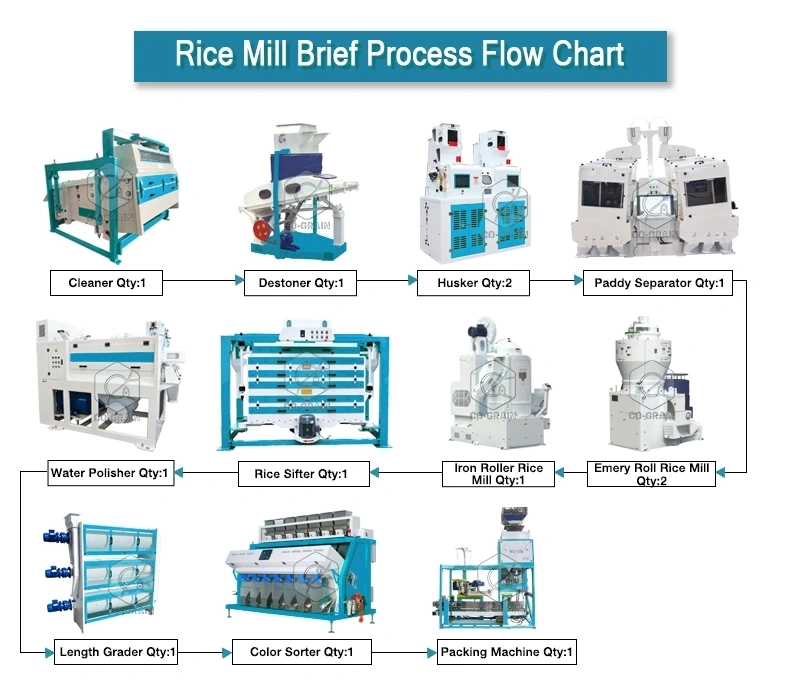

The 200T/D complete rice mill machine can process paddy into national standard rice just in one process at the following flow chart: Raw material feeding-Vibrated cleaner & Destoner → Rice Husker→Paddy Rice Separator → Rice Mill →Rice Polisher → Rice Grader→ Rice Color Sorter → Packing, Then the rice can be on market for sale.

200ton_rice_mill_machine_processing_process

What is 200T/D Complete Rice Mill Plant Structure

Our 200T/D complete rice mill machine is a fully automatic rice mill plant, which includes the entire process from paddy cleaning, stone removal, rice hulling, rice separating, rice milling, rice polishing, and rice color sorting, rice grading, and final rice packaging. You no longer need any other machines, you can realize the entire processing from paddy rice to the final finished white rice. Therefore, this complete set of rice milling equipment is very popular. Welcome, contact us for the details.

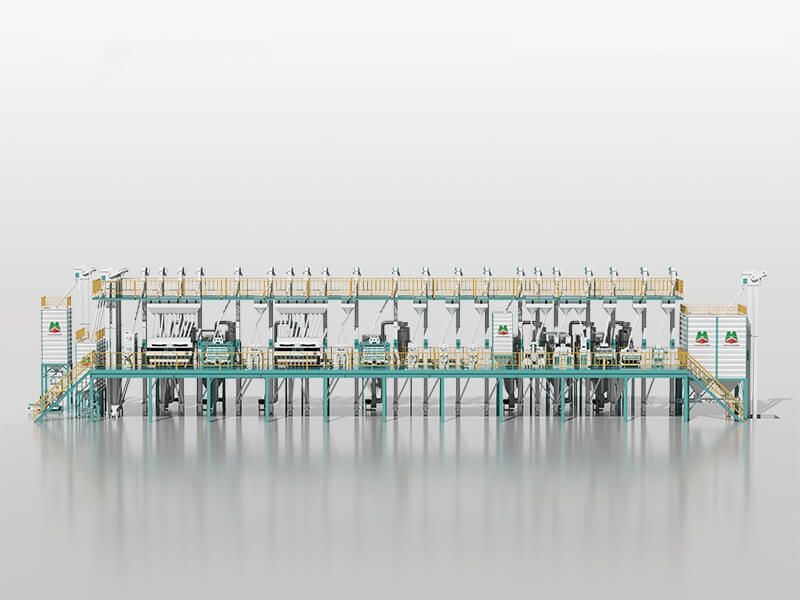

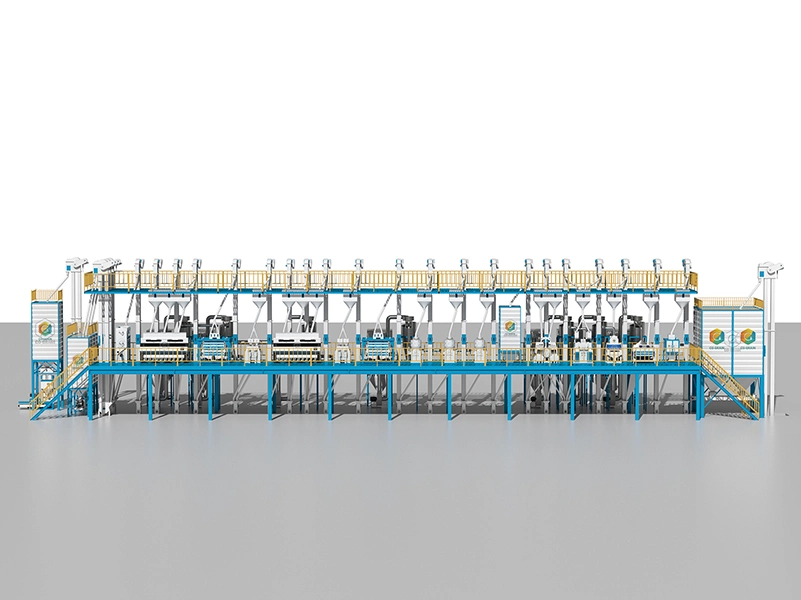

200t_rice_mill_equipments_cost

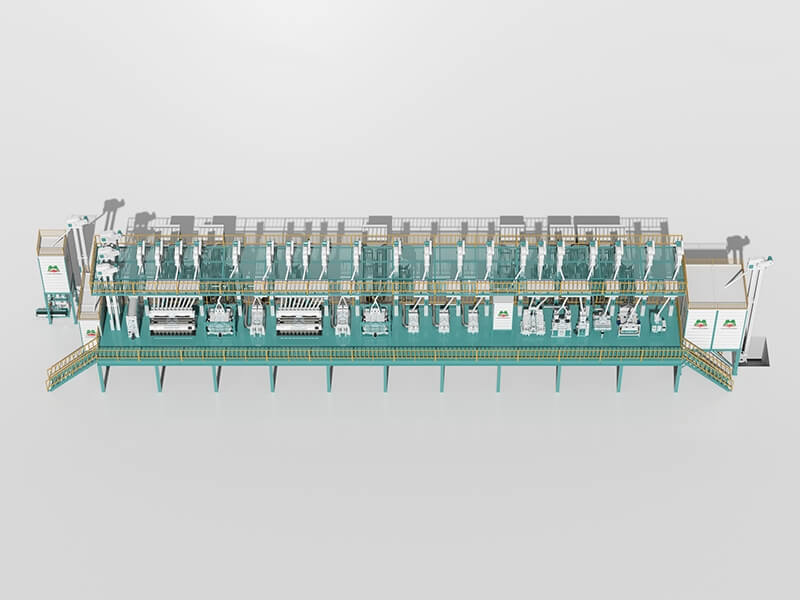

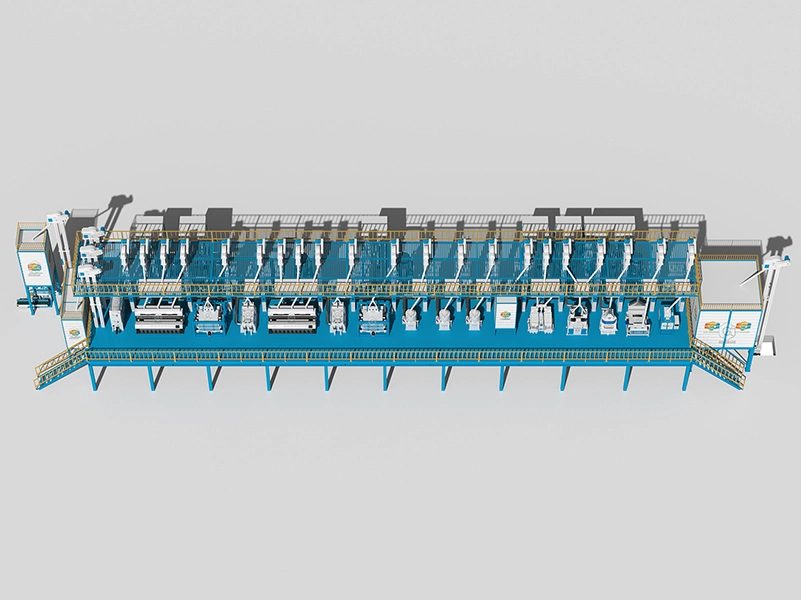

200t_rice_mill_equipments_supplier
Make a Quick Inquiry Now !

The Modern Rice Milling System Consists Of:

Paddy Cleaning Machine: can clean bigger impurities in Paddy;

Rice Destoner: can remove the stone from the paddy, to get clean paddy;

Rice separator: it is mainly used for separating brown rice from paddy making use of their differences in specific gravity and friction coefficient in three parts: paddy, brown rice, and a mix of both;

Rice mill machine: the rice whitening machine is developed for rice whitening, which is an advanced technology of the world rice mill whitener at present to make rice temperature down, bran content less, and broken increment lower;

Rice polisher: polishes the rice surface by spraying water, which facilitates the formation of a smooth gelatinous layer that prolongs the preservation time. Extended polishing chamber to produce high-quality rice;

Rice grading machine: the rice grader can sieve milled rice efficiently and accurately into several classes: head rice, large broken, medium broken, small broken, etc;

Rice color sorter: the rice color sorting machine is used to sort bad, milky, Chalky, Paddy, and foreign materials. The CCD signal while blanking has been tested. If it is found that there are unqualified rice or impurities in the materials, the ejector will blow the defective goods in the hopper;

Rice packing machine: this rationed automatic weighing packing machine consists of a material box, a packing scale, a sewing machine, and a conveyor belt. It can cooperate work with all the model's rice mill production lines, and also for the packing bags capacity can choose 1-50kg per bag for your needs;

The Optional Machines for 200T/D Rice Mill Plant:

Thickness Rice Grader,

Length Grader,

Rice Husk Hammer Mill,

Bags type dust collector or Pulse dust collector,

Magnetic separator,

Flow Scale,

Rice Hull Separator, etc.

Make a Quick Inquiry Now !

The Modern Rice Milling System Consists Of:

1. The raw paddy goes into the elevator, from the elevator to the paddy clean and de-stoner machine, after using the paddy clean and de-stoner machine, the paddy is cleaner;

2. Then the clean paddy goes into the elevator, through the elevator to the paddy huller machine, paddy huller can let the paddy be brown rice;

3. Then brown rice and some paddy through an elevator to the paddy and brown rice separate machine, paddy and brown rice separate machine can separate paddy and brown rice;

4. Then brown rice directly to the rice mill machine, then rice mill machine can let brown rice be white rice, the paddy will back to the paddy huller machine, and can get brown rice, also brown rice will go to the rice mill machine, get the white rice;

5. White rice through the elevator to the iron rice mill machine, then the rice surface will be more smooth;

6. Then rice through the elevator to the water polisher machine, the water polisher machine inside has steam water, which will let the rice surface more shinning;

7. Then rice through the elevator to the rice grader machine, the rice grader machine can separate broken rice and whole rice, some customers are just selling whole rice, and also sell broken rice to animal feed factories;

8. Good rice through the elevator to the color sorter machine, the color sorter machine inside is a camera, which is high technology that can separate different colors of rice, like black rice, red rice, etc, it can get white rice;

9. Final rice through the elevator to the rice packing machine, the rice packing machine can package rice into one bag of 15, 25, 50kg, etc. If customers need a vacuum packing machine also let us know;

200T/D Rice Mill Plant Features

1. This rice processing equipment can be used to process both long-grain rice and short-grain rice(round rice), suitable to produce both white rice and parboiled rice, with a high output rate, a low broken rate;

2. Both vertical-type rice whiteners and horizontal-type rice whiteners are available;

3. Multiple water polishers, color sorters, and rice graders will bring you more shining and higher precision rice;

4. The pneumatic rice huskers with auto feeding and adjustment on rubber rollers, have higher automation and are easier to operate.

5. Usually use a type of dust collector to collect in high efficiency the dust, impurities, husk, and bran during processing, bringing you a good working environment; The pulse dust collector is optional;

6. Having a high automation degree and realizing continuous automatic operation from paddy feeding to finished rice packing.

7. Having various matching specifications and meeting the requirements of different users.

Rice Mill Machine Application

Our rice mill can process steamed rice, white rice, long rice, short rice, glutinous rice, etc. It is very suitable for farmer use, rice process workshop, rice factory, or reselling. Welcome, contact us for the details, thanks.

rice-mill-machine-final-products
