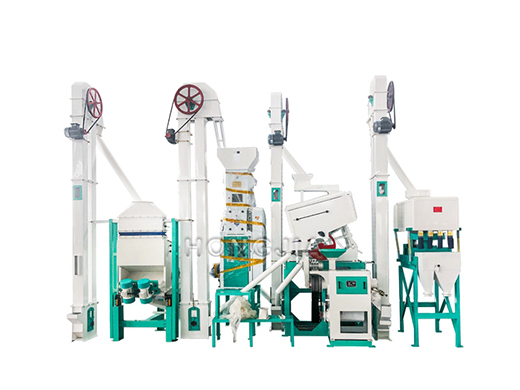

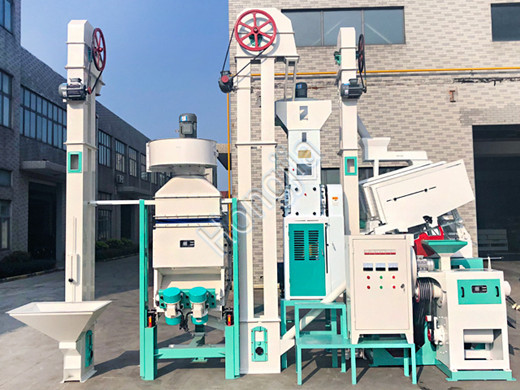

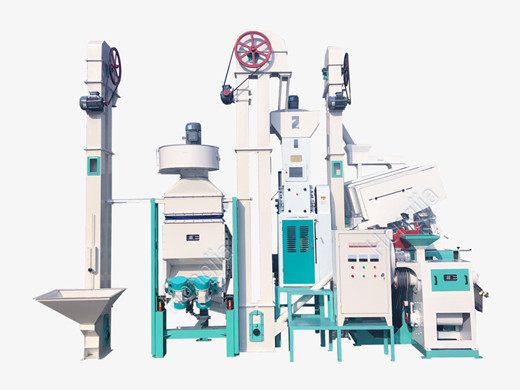

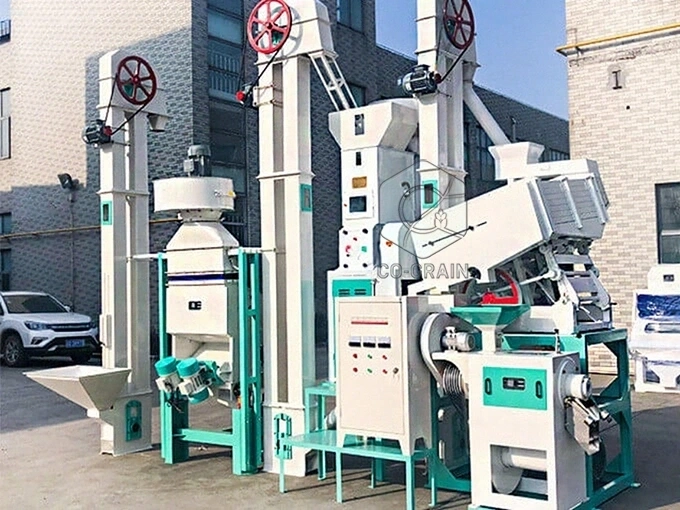

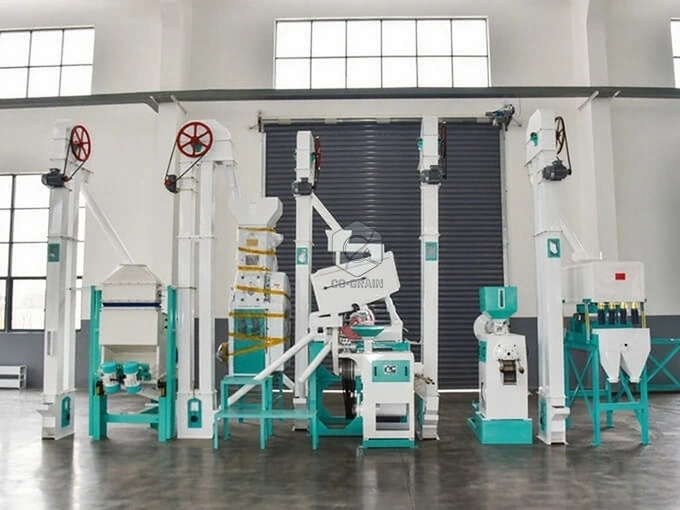

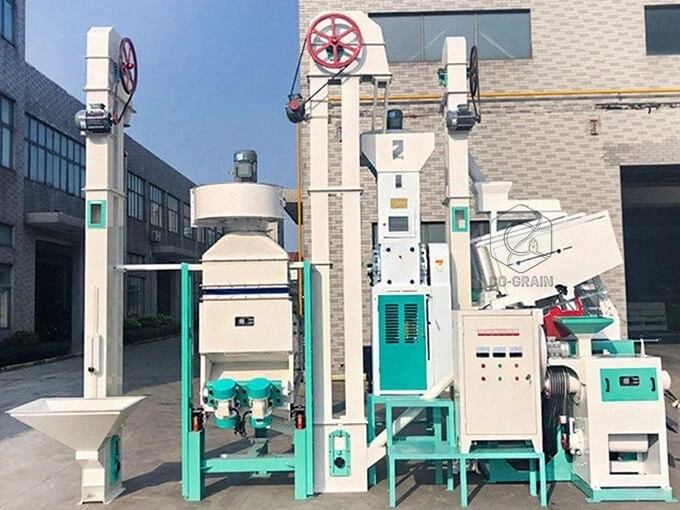

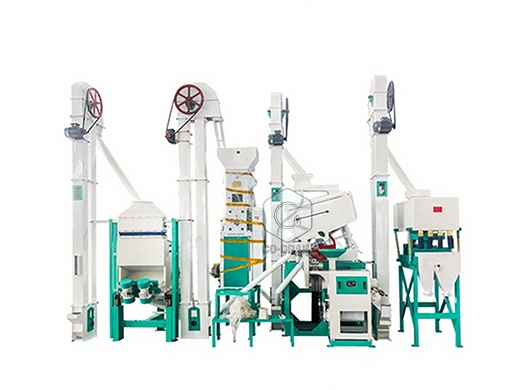

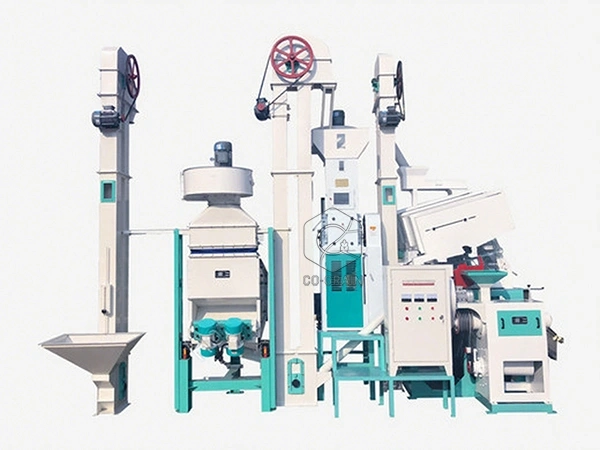

Our complete automatic 30ton per day modern rice milling plant is a new popular design rice mill machine to process paddy rice to final rice. It contains rice cleaner, rice huller, paddy rice separator, rice mill machine, and rice grader machine to deal paddy rice to final rice.
Our complete automatic 30ton per day modern rice processing plant is a new popular design rice mill machine. It contains a rice destoner, rice cleaner, rice huller, paddy rice separator, rice mill machine, and rice grader machine to process paddy rice to final rice. Also, we add a vibrating cleaner device to clean the raw materials, which can make them cleaner.
And this model capacity can get 1250-1500kg final rice per hour, with high working efficiency, and low broken rice rate. If the client needs the polisher machine, rice color sorter machine, or rice packing machine, we can also add them for you. It is automatic working, convenient to operate, and use as well is widely used in small or medium-sized rice processing plants.
This hot sale 30T/D paddy rice milling machine is professional in paddy rice processing, and it can process different shapes of paddy rice such as long shapes, and round shapes, it also can process the parboiling paddy rice and paddy rice directly, with a low broken rate and high rice yielding.

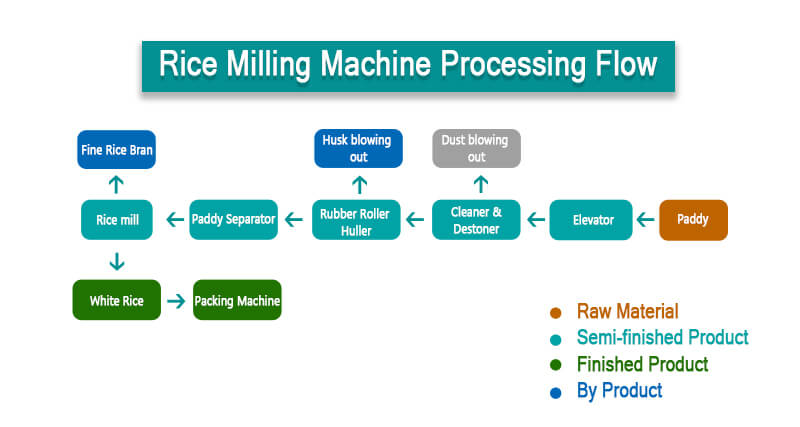

The 30T/D standard rice mill plant can process paddy into national standard rice just in one process at the following flow chart: Raw material feeding-Vibrated cleaner & Destoner → Rice Husker→Paddy Rice Separator → Rice Mill → Standard White Rice, Then the rice can be on market for sale.

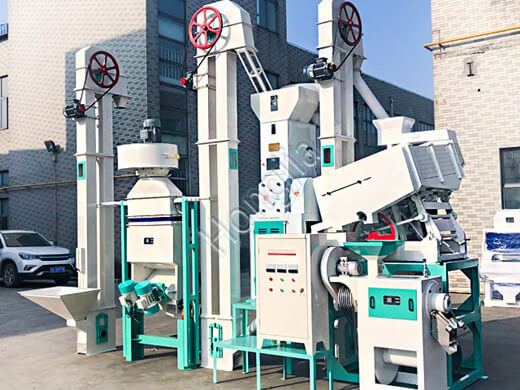

This 30T/D modern rice milling machine is a standard automatic rice production line, which includes the main process of paddy cleaning, stone removal, rice separating, rice hulling, rice milling, etc. With one set of rice mill machines, you can get the standard rice. Therefore, this type of rice milling equipment is very popular. Welcome, contact us for the details.

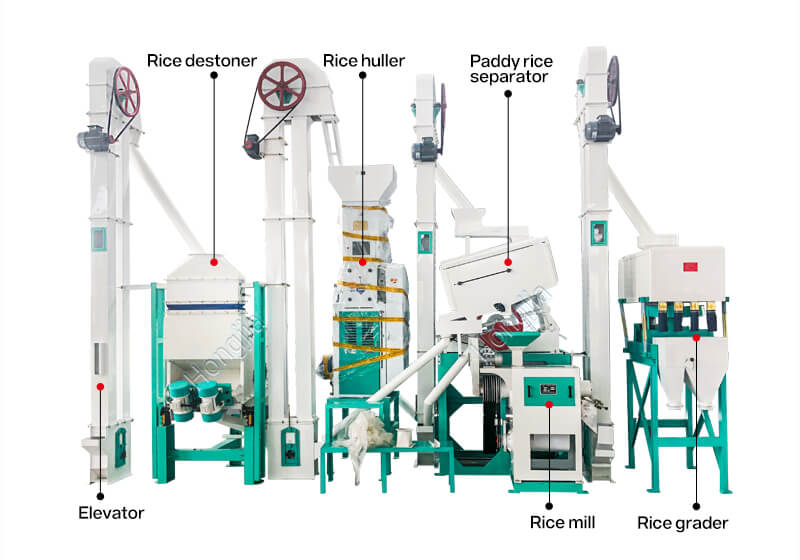

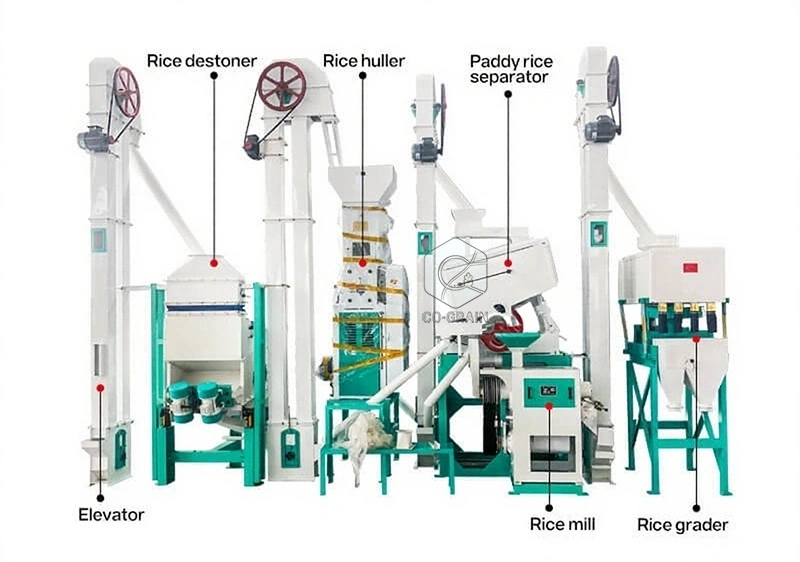

Feed hopper: this hopper is used for users feeding materials inside, can help promise the materials feed into machines smoothly and uniform, and also can help save labor.
Combined Paddy Cleaner: removing all impurities and unfilled grains from the paddy;
Rice Hulling Machine: a rice huller or paddy husker is an agricultural machine used to automate the process of removing the chaff (the outer husks) of grains of rice.
Paddy Separator: it is mainly used for separating brown rice from paddy making use of their differences in specific gravity and friction coefficient in three parts: paddy, brown rice, and a mix of both.
Rice Milling Machine: the rice whitening machine is developed for rice whitening, which is an advanced technology of the world rice mill whitener at present to make rice temperature down, bran content less, and broken increment lower.
Broken Rice Sieve: to separate the good rice and the broken rice.
| No. | Name | Model | Power(kW) |
| 1 | Single Elevator | TDTG20/11 | 1.1 |
| 2 | Combined Cleaner Destoner Machine | ZQS70 | 0.5 |
| 3 | Centrifugal Fan | 4-72 | 3 |
| 4 | Double Elevator | TDTG18/08*2 | 1.1 |
| 5 | Rice Huller | LG20 | 4 |
| 6 | Paddy Rice Separator | MGCZ80*7 | 5.5 |
| 7 | Centrifugal Fan | 4-72 | 1.1 |
| 8 | Strong pull wind emery roller rice mill | MNMS15B | 18.5 |
| 9 | Broken rice sieve | 0.37 |
Optional items:
Rice Polishing Machine: rice polishing machine, polishes the rice surface by spraying water, which facilities the formation of a smooth gelatinous layer that prolongs the preservation time. Extended polishing chamber to produce high-quality rice
Rice Color Sorter: the rice color sorting machine is used to sort bad, milky, Chalky, Paddy, and foreign materials out. The CCD signal while blanking is been tested. If it is found that there are unqualified rice or impurities in the materials, the ejector will blow the defective goods in the hopper.
Rice Grading Machine: the rice grader can sieve milled rice efficiently and accurately into several classes: head rice, large broken, medium broken, small broken, etc.
Rice Packing Machine: rice weighing and bagging: preparing milled rice for transport to the customer.

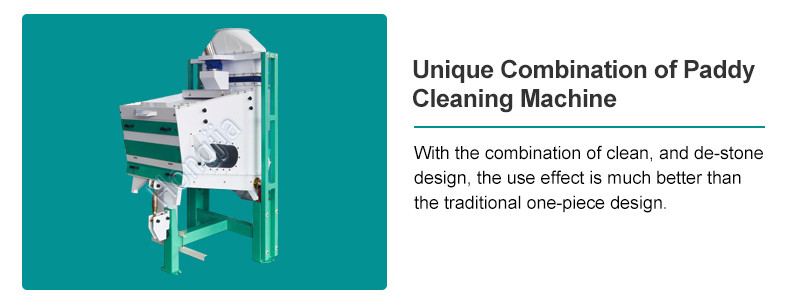

Make a Quick Inquiry Now !Unique Combination of Paddy Cleaning Machine
With the combination of clean, and de-stone design, the use effect is much better than the traditional one-piece design. Large air volume design, excellent stone removal effect, combined with high-strength vibration-absorbing bearing configuration, the body movement is stable, firm, and reliable, low vibration, low noise, less dust;
The stone removal part adopts the design of large air volume and suction, with large air volume and good stone removal effect;

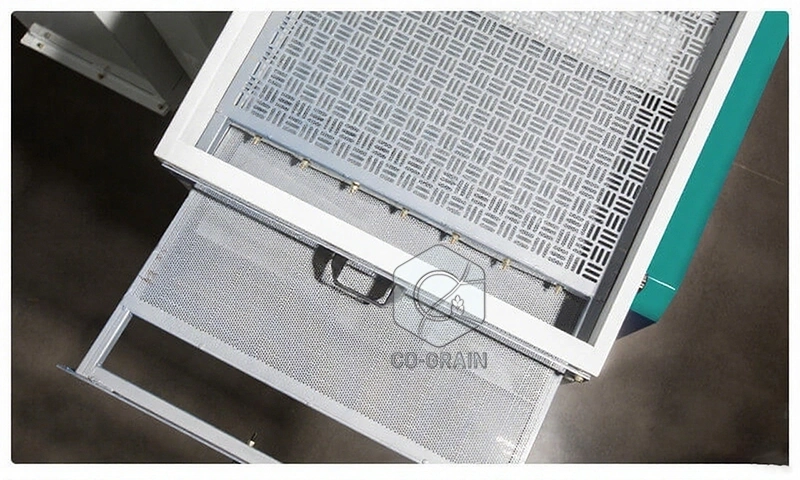

The cleaning part adopts a multi-layer drum screen mechanism, which has high cleaning efficiency and clean-up, so it can remove fine impurities and stones;
A square rotation screen for the destoner machine will make the paddy cleaner;

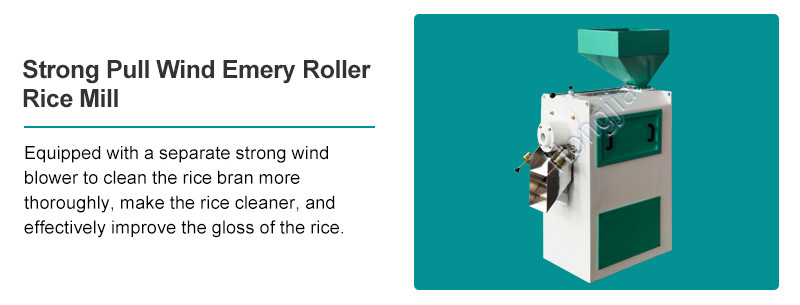

Strong Pull Wind Emery Roller Rice Mill
Equipped with a separate strong wind blower to clean the rice bran more thoroughly, make the rice cleaner, and effectively improve the gloss of the rice;
Lower the temperature of the rice, thereby effectively reducing the rate of broken rice;
The operation height is reduced, the operation is more convenient, and the daily maintenance is convenient;

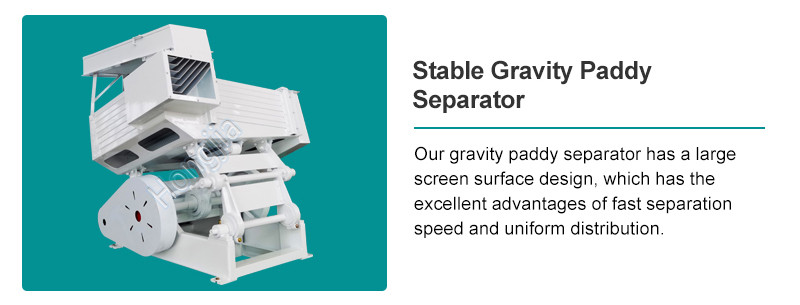

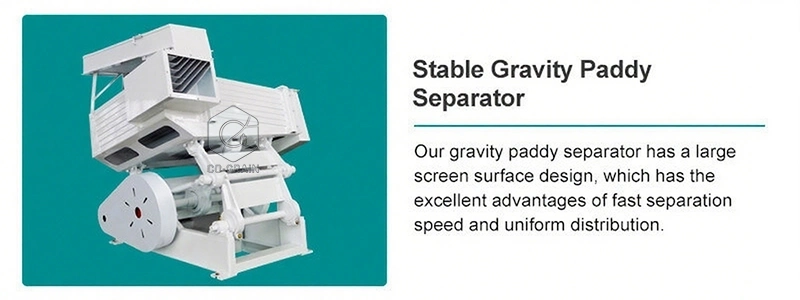

Stable Gravity Paddy Separator
Our gravity paddy separator has a large screen surface design, which has the excellent advantages of fast separation speed and uniform distribution;
The horizontal and vertical angles of the screen surface can be adjusted, so it is suitable for different types of rice;
Low broken rice rate;

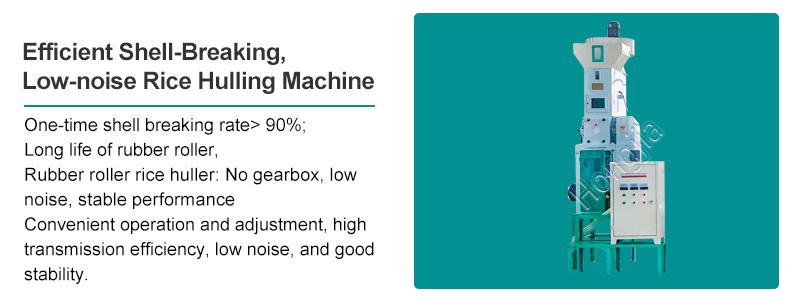

Efficient Shell-Breaking, Low-noise Rice Hulling Machine
One-time shell breaking rate> 90%;
Long life of rubber roller, 10-inch rubber roller rice huller: No gearbox, low noise, stable performance;
Convenient operation and adjustment, high transmission efficiency, low noise, and good stability;

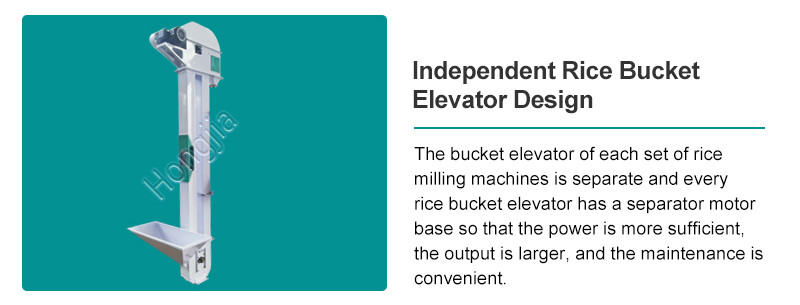

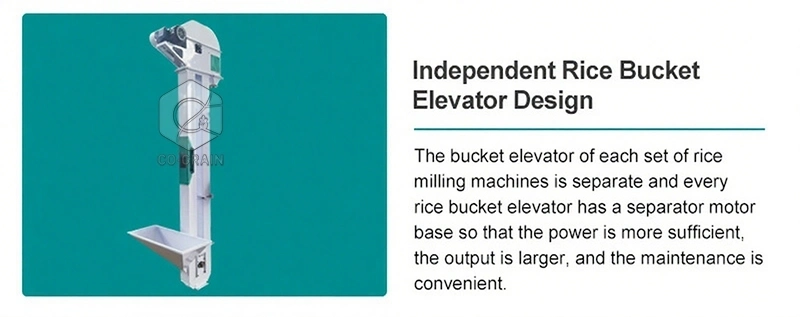

Independent Rice Bucket Elevator Design
The bucket elevator of each set of rice milling machines is separate and every rice bucket elevator has a separator motor base so that the power is more sufficient, the output is larger, and the maintenance is convenient.
1. Rice milling speed is fast, the complete set of equipment has a daily output of about 30 tons;
2. The structure is neat and beautiful, and the energy consumption is low. The operation and maintenance are convenient, and the disassembly and assembly of all equipment are very convenient;
3. The rice milling part of the equipment adopts negative pressure rice milling technology, which has low rice temperature, no chaff, and fewer broken rice rate;
4. Our processing technology: Optical fiber cutting, CNC bending, CNC machine tools, spraying process, high-position spray baking, etc;
5. According to the requirement of the crafting flow, “one” arrangement, the main operations are concentrated in the middle, convenient to operate;
6. High-strength vibration-absorbing bearing configuration, the machine body moves smoothly, is firm and reliable, has low vibration, low noise, and low dust;
7. Better cleaning effect can remove the impurities among the grains like stone, iron, dust, stalks, etc;
Our rice mill can process steamed rice, white rice, long rice, short rice, glutinous rice, etc. It is very suitable for farmer use, rice process workshop, rice factory, or reselling. Welcome contact us for the details, thanks
