Paddy Dryer

Leading Manufacturer & Exporters of different types paddy dryer, it is also know as rice mill dryer, rice grain dryer, paddy rice dryer, etc. It is most used in the parboiled rice mill plant to dry the paddy. Different capacity and size for your choice, it also can be custom according to your need.

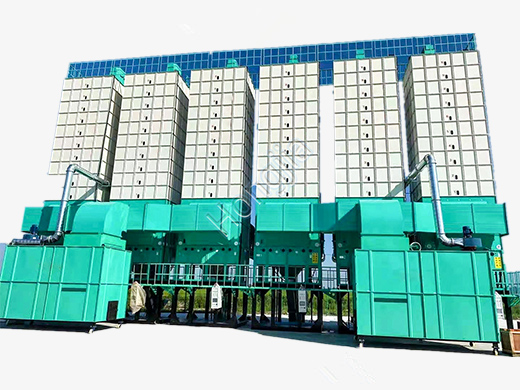

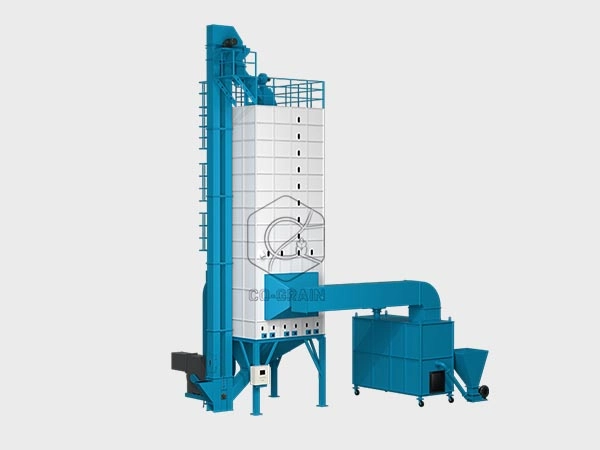

Grain Dryer

Grain Dryer
  • Grain Dryer
  • Grain Dryer
  • Grain Dryer
  • Grain Dryer
Get Best Quote
Product Price :Get Latest Price

Grain Dryer Product Details:

Item/model Capacity(kg)paddy(580/m3) Dimension(mm)
5H-10 3.5-10 5704*3814*9979
5H-15 3.5-15 5704*3814*11304
5H-20 5-20 6206*4652*10755
5H-30 5-30 6206*4652*12795
5H-40 5-40 6206*4652*15426
5H-50 5-50 8043*4726*18918
5H-100 20-100 9603*6854*18182
5H-130 20-130 9603*6854*21332

This grain dryer machine is a professional grain dryer machine working with a low-temperature airflow dryer, which will not damage the grain seed but can do the dryer work with high working efficiency. It is usually used in a parboiled rice mill plant.


Additional Information:

  • Capacity:3.5-130(kg)
  • Service: Customization, installation, guidance and training
  • Cooperation: Factory Directly
  • MOQ: 1set
  • Brand: Hongjia
Request
Callback

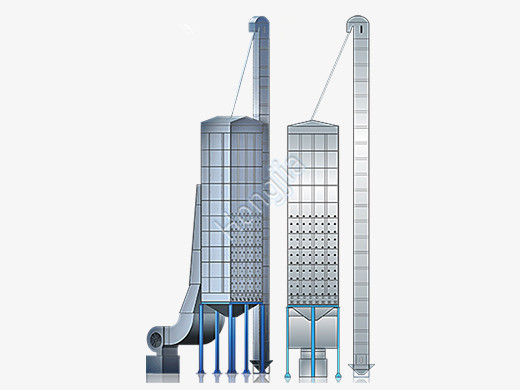

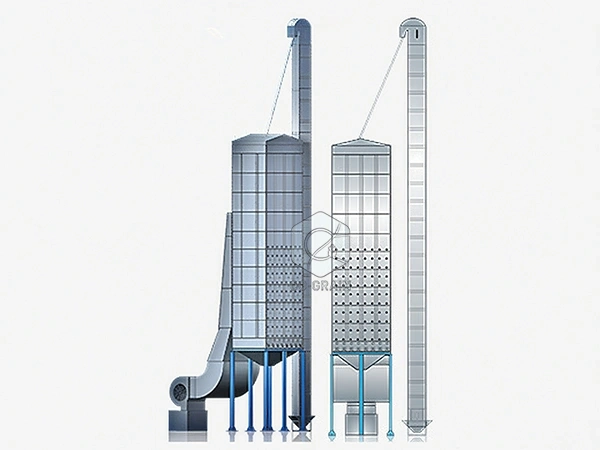

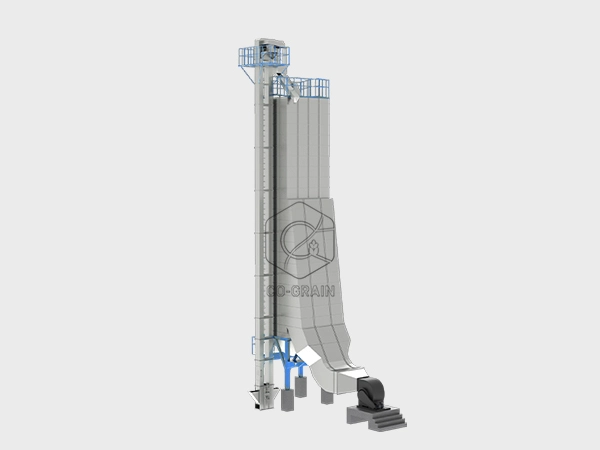

Paddy Rice Dryer

Paddy Rice Dryer
  • Paddy Rice Dryer
  • Paddy Rice Dryer
  • Paddy Rice Dryer
  • Paddy Rice Dryer
  • Paddy Rice Dryer
Get Best Quote
Product Price :Get Latest Price

Paddy Rice Dryer Product Details:

Model Capacity(t/batch) Precipitation rate/h Dimensions(mm)
5HGM-20H 20 1.2~1.5% 9630×4035×20300
5HGM-32H 32 1.2~1.5% 9630×4035×22500
5HGM-40H 40 1.2~1.5% 9630×4035×24600

Our paddy dryer is mainly used for raw paddy rice, steam paddy rice, and boiled paddy rice. When paddy rice is transported to the rice mill factory, it contains high levels of moisture. High-moisture paddy rice cannot be used for the next rice milling operation. It must be dried to the specified moisture content before it can be further processed into white rice in a rice mill machine. This can also greatly reduce the rate of broken rice and increase the output of whole rice.

Additional Information:

  • Capacity: 20-40t/batch
  • Service: Customization, installation, guidance and training
  • Cooperation: Factory Directly
  • MOQ: 1 set
  • Brand: Hongjia
Request
Callback

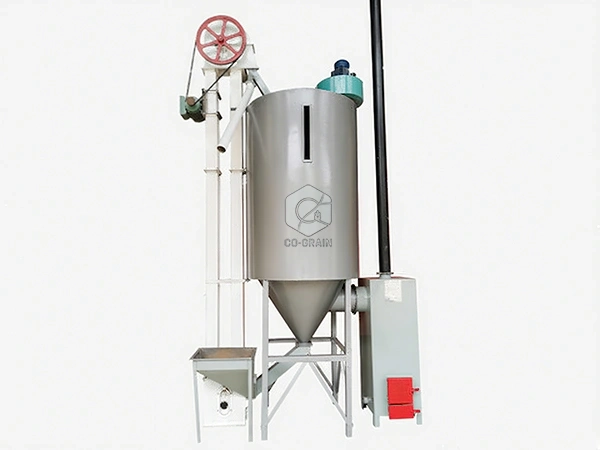

Mini Paddy Dryer

Mini Paddy Dryer
  • Mini Paddy Dryer
  • Mini Paddy Dryer
  • Mini Paddy Dryer
  • Mini Paddy Dryer
Get Best Quote
Product Price :Get Latest Price

Mini Paddy Dryer Product Details:

Model 5AH-1
Capacity per batch 1t
Drying capacity 2-3 ton/day
Total power 6kw
Type of heating Hot air furnace (Coal,charcoal),diesel combustion engine,gas combustion engine
Total weight 900kg
Brand Hongjia

This mini paddy dryer is mainly used to dry grain paddy in parboiled rice mill plant. Based on our rice engineering experience and traditional technology, we improved the transmission system and the material breaking device and finally improved the rice dryer efficiency and overall performance of the grain dryer. The whole rice grain dryer consists of a feeding device, drying warehouse, environmentally, friendly coal-fired hot stove and air supply system, electric control system, etc.


Additional Information:

  • Capacity per batch:1t
  • Drying capacity:2-3ton/day
  • Total power:6kw
  • Total weight: 900kg
  • Service: Customization, guidance and training
  • Cooperation: Factory Directly
  • MOQ: 1set
  • Brand: Hongjia
Request
Callback

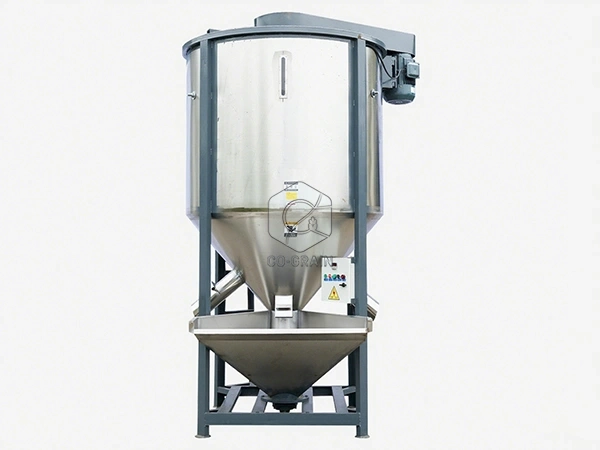

Small Rice Grain Dryer

Small Rice Grain Dryer
  • Small Rice Grain Dryer
  • Small Rice Grain Dryer
  • Small Rice Grain Dryer
  • Small Rice Grain Dryer
Get Best Quote
Product Price :Get Latest Price

Small Rice Grain Dryer Product Details:

Model Capacity(kg) Power(kw) Heating Power(kw) Speed(r/min) Size(mm)
HBQFH500 500 3 12 350 Ø1200*2350
HBQFH1000 1000 4 20 350 Ø1600*2650
HBQFH1500 1500 4 20 350 Ø1700*3150
HBQFH2000 2000 5.5 30 350 Ø1750*3150
HBQFH3000 3000 7.5 40 350 Ø2200*3850
HBQFH5000 5000 11 50 350 Ø2400*4350

This small rice grain dryer is mainly used to dry grain paddy in parboiled rice mill plant. The design of this rice mill dryer is two level spiral quick delivery. The first level deliver the materials quickly into the barrel, and  the second level continuously rapid lift the raw material to the upper of the barrel and then throw the raw material with deliquescence scattered, while the hot air from the center of the barrel bottom blown out all around.

Additional Information:

  • Capacity: 500-5000(kg)
  • Power: 3-11(kw)
  • Service: Customization, guidance and training
  • Cooperation: Factory Directly
  • MOQ: 1set
  • Brand: Hongjia
Request
Callback

Oil/Gas Steam Boilers

Oil/Gas Steam Boilers
  • Oil/Gas Steam Boilers
  • Oil/Gas Steam Boilers
  • Oil/Gas Steam Boilers
  • Oil/Gas Steam Boilers
  • Oil/Gas Steam Boilers
Get Best Quote
Product Price :Get Latest Price

Oil/Gas Steam Boilers Product Details:

Model HJ1-0.7/1.0 HJ2-1.0/1.25 HJ4-1.0/1.25 HJ6-1.25/1.6 HJ8-1.25/1.6
Rated evaporation capacity (t/h) 1 2 4 6 8
Rated steam pressure (Mpa) 0.7/1.0 1.0/1.25 1.0/1.25 1.25/1.6 1.25/1.6
Thermal efficiency (%) >90 >90.2 >91 >91.5 >91.6
Fuel consumption Light oil (Kg/h) 66.5 133 266 399 532
Fuel consumption Natural gas (Nm³/h) 75 150 300 450 600
Overall dimension (m) 3.6×2.0×2.0 4.8×2.5×2.46 5.8×2.85×2.8 7.25×3.1×3.15 7.45×3.26×3.2
Weight  (t) 4 8 13 19 22.6
Body Heating Area (m2) 25 60 113 181 190
Note: Parameter is for reference only, we can design the boilers based on customers’ needs.

Oil/Gas fired steam boilers is a device that generates steam by applying heat energy to water. A steam boiler incorporates the furnace and drum, the furnace is used to burn the fuel and generate heat. The generated heat is transferred to water to make steam, this is the process of boiling. Then the produced saturated steam will be used for various industrial production and another usage.


Additional Information:

  • Capacity:1-20(t/h)
  • Service: Customization, installation, guidance and training
  • Cooperation: Factory Directly
  • MOQ: 1set
  • Brand: Hongjia
Request
Callback

Rice Husk Steam Boiler

Rice Husk Steam Boiler
  • Rice Husk Steam Boiler
  • Rice Husk Steam Boiler
  • Rice Husk Steam Boiler
  • Rice Husk Steam Boiler
  • Rice Husk Steam Boiler
Get Best Quote
Product Price :Get Latest Price

Rice Husk Steam Boiler Product Details:

Model HJ1-0.7/1.0/1.25-T HJ2-0.7/1.0/1.25-T HJ4-1.25/1.6-T HJ6-1.25/1.6-T HJ8-1.25/1.6-T HJ10-1.25/1.6-T
Hot water capacity(t/h) 1 2 4 6 8 10
Rated pressure(MPa) 0.7/1.0/1.25 0.7/1.0/1.25 1.25/1.6 1.25/1.6 1.25/1.6 1.25/1.6

Thermal efficiency (%)

82

82

82

82

82

82

Available fuel Husk Husk Husk Husk Husk Husk
Fuel consumption (kg/h) ~200 ~400 ~800 ~1200 ~1600 ~2010
Overall Dimension (m) 5.1×2.2×3

5.5×2.3×3.3

6.6×2.6×3.6

8.2×2.9×3.8

8.1×3.1×3.8

7.7×3.2×3.6

Weight (ton)

17

23 25

35

45

23


The rice husk steam boiler is a single-tube water tube and fire tube boiler, and the combustion equipment is a chain grate. The water wall pipes on the left and right sides of the furnace are radiant heating zones. The two wings of the furnace and the spiral fire tube in the rotating drum are convection heating zones. The rice husk hot water boiler adopts the upper drum, and the water wall tube is symmetrically arranged with the machine head. The drum is welded and assembled by the cylinder body and the front and rear tube plates. This kind of furnace has reasonable structure layout and high efficiency.

Additional Information:

  • Capacity:1-10(t/h)
  • Service: Customization, installation, guidance and training
  • Cooperation: Factory Directly
  • MOQ: 1set
  • Brand: Hongjia
Request
Callback
