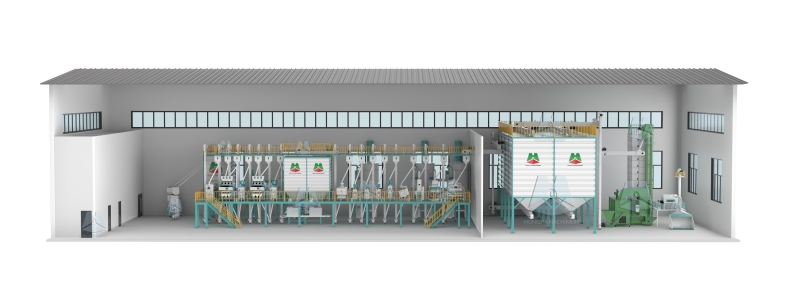

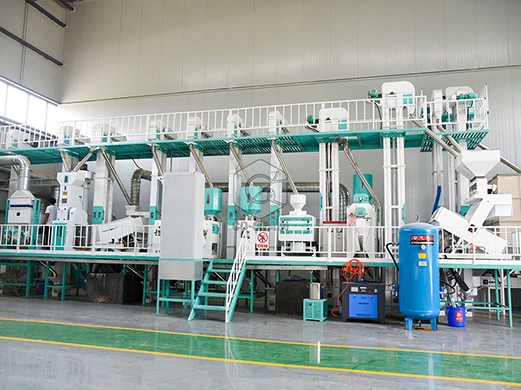

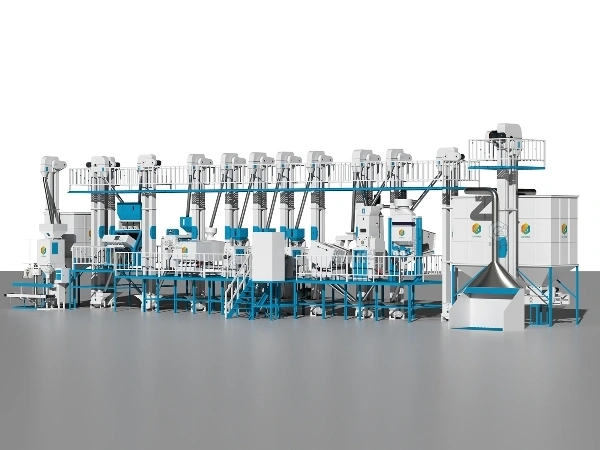

This 40Ton Rice Mill Plant is an ideal choice for the medium rice processing enterprise. It contains a dust catcher, cleaning de-stoner machine, rice huller, paddy rice separator machine, rice mill machine, rice polisher, rice color sorter machine, rice grader machine, and rice color sorter machine.

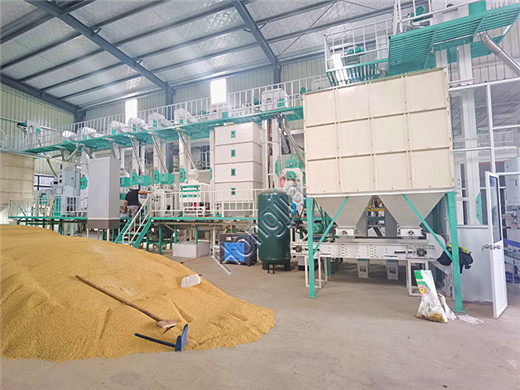

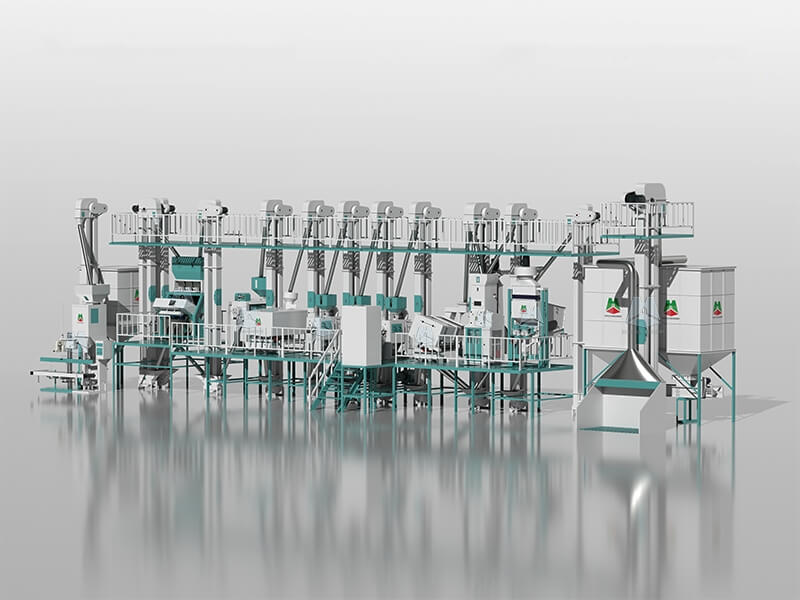

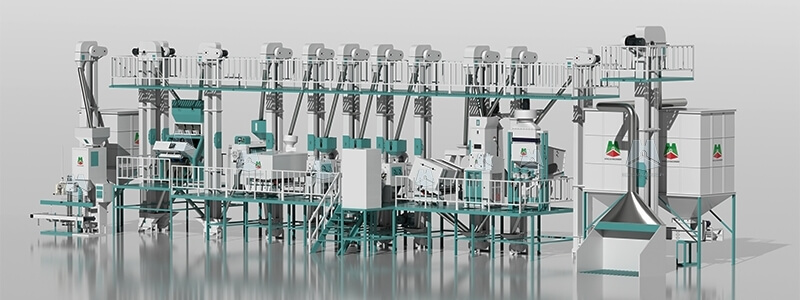

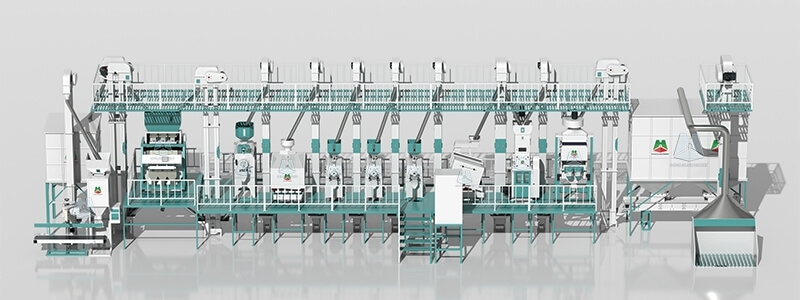

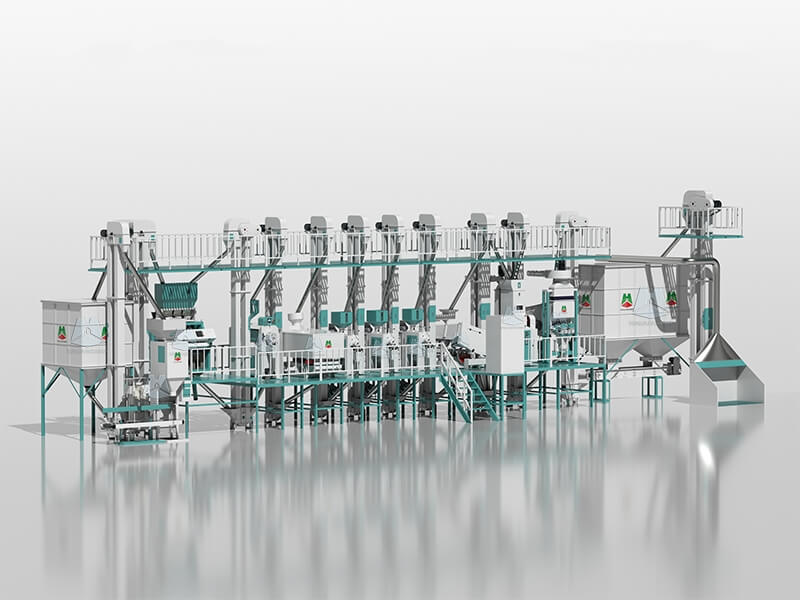

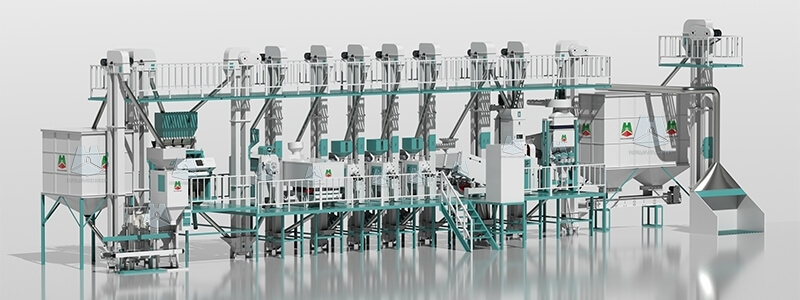

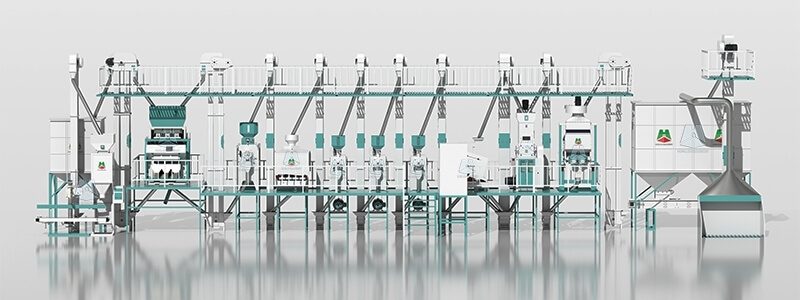

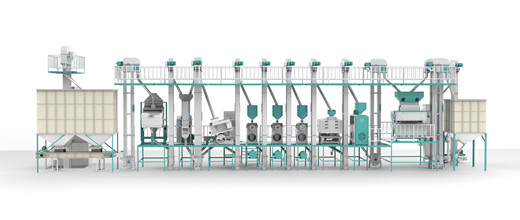

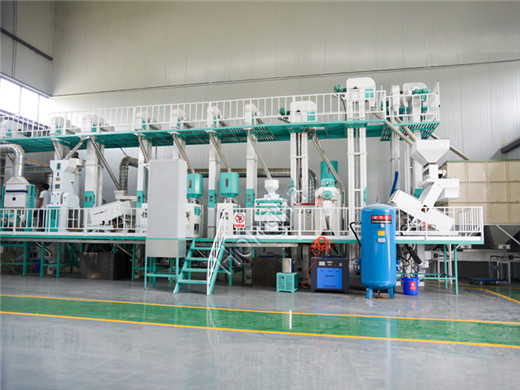

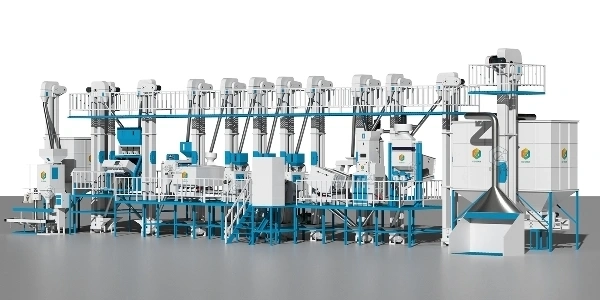

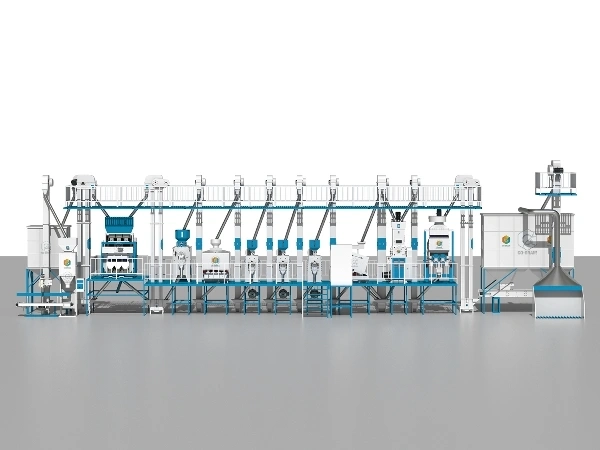

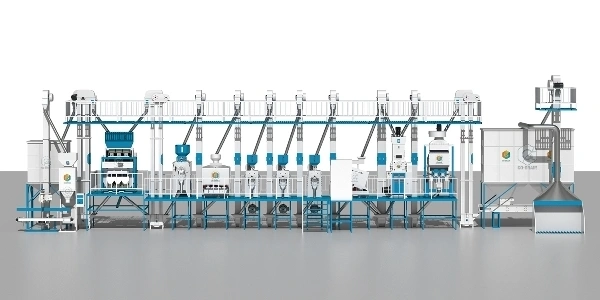

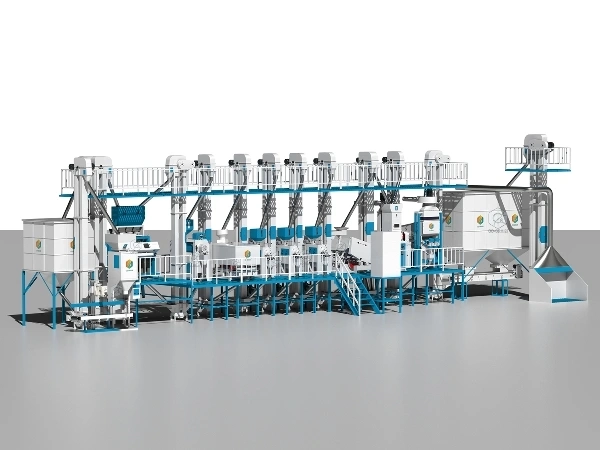

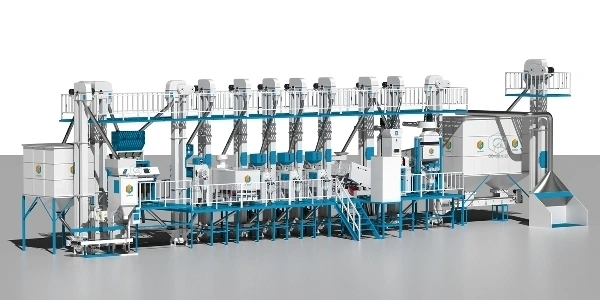

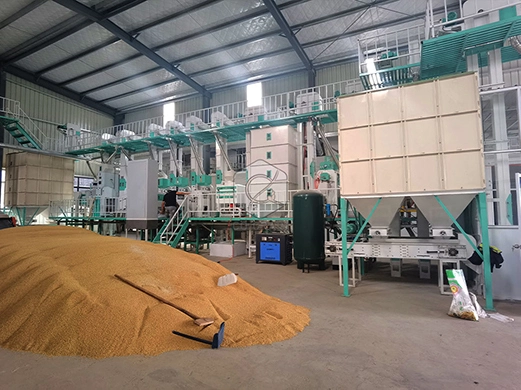

This 40T/D complete rice mill plant is one of the modern rice mill machinery. It contains a dust catcher, rice cleaning machine, rice de-stoner machine, rice huller, paddy rice separator machine, rice mill machine, rice polisher, rice color sorter machine, rice grader machine, rice color sorter machine, etc. It can get 1600-2000kg of final rice per hour with high working efficiency, and a low broken rice rate.
This rice mill machinery has the advantages of advanced technical skills, compact structure, high outlet, etc. It is an ideal choice for the medium grain processing enterprise. With a control box to make automatic operation and working, easy to work and convenient to maintain.

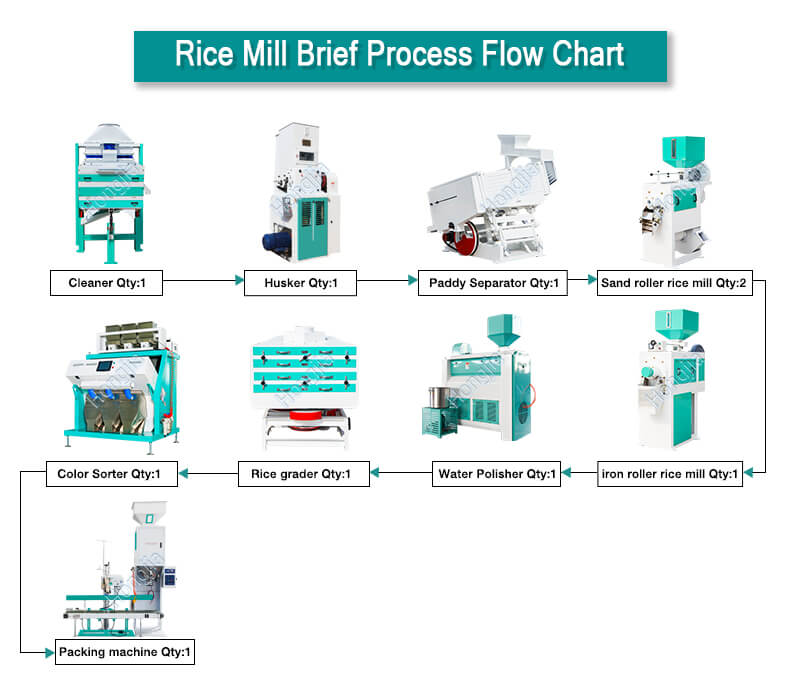

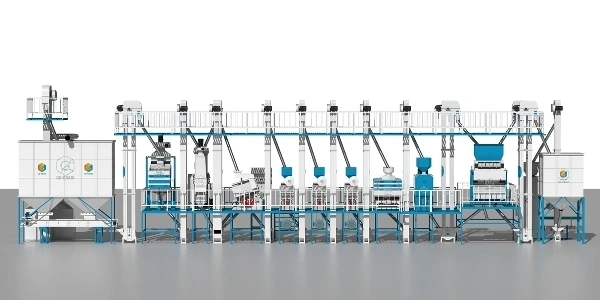

The 40T/D complete rice mill project can process paddy into national standard rice just in one process at the following flow chart: Raw material feeding-Vibrated cleaner & Destoner → Rice Husker→Paddy Rice Separator → Rice Mill →Rice Polisher → Rice Grader→ Rice Color Sorter → Packing, Then the rice can be on market for sale.
Our 40T/D complete rice mill plant is a fully automatic rice production line, which includes the entire process from paddy cleaning, stone removal, rice hulling, rice separating, rice milling, rice polishing, and rice color sorting, rice grading, and final rice packaging. You no longer need any other machines, you can realize the entire processing from paddy rice to the final finished white rice. Therefore, this complete set of rice milling equipment is very popular. Welcome, contact us for the details.

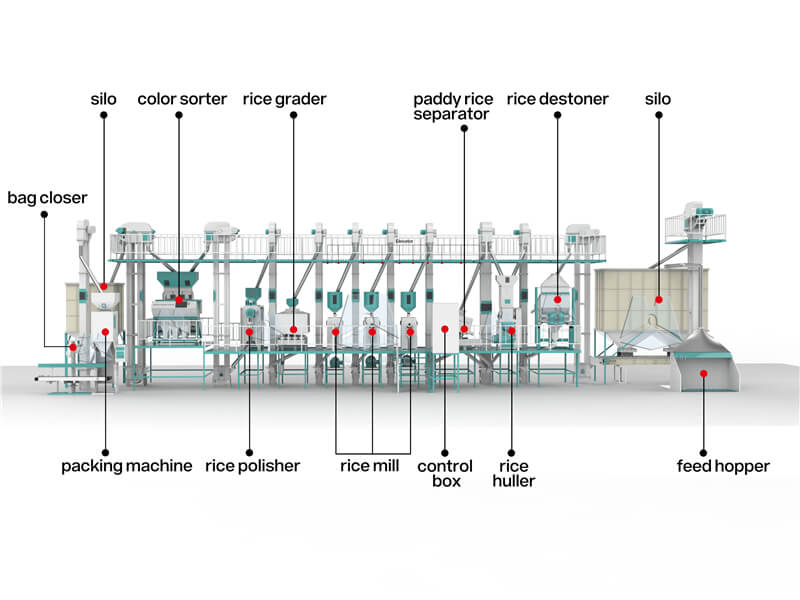

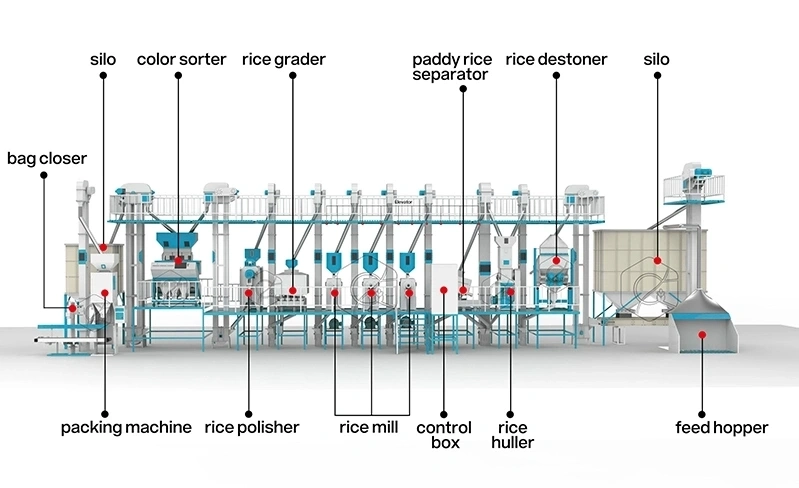

Hopper: feeding raw paddy material to the rice mill machine;
Combined paddy cleaner & de-stoner: other light impurities such as dust and debris, block, the stone should be removed as much as possible to reach a better cleaning effect;
Rice husker: remove husk from paddy;
Rice separator: it is mainly used for separating brown rice from paddy making use of their differences in specific gravity and friction coefficient in three parts: paddy, brown rice, and a mix of both;
Rice mill machine: the rice whitening machine is developed for rice whitening, which is an advanced technology of the world rice mill whitener at present to make rice temperature down, bran content less, and broken increment lower;
Rice polisher: polishes the rice surface by spraying water, which forms a smooth gelatinous layer that prolongs the preservation time. Extended polishing chamber to produce high-quality rice;
Rice grading machine: the rice grader can sieve milled rice efficiently and accurately into several classes: head rice, large broken, medium broken, small broken, etc;
Rice color sorter: the rice color sorting machine is used to sort bad, milky, Chalky, Paddy, and foreign materials out. The CCD signal while blanking is tested. If it is found that there are unqualified rice or impurities in the materials, the ejector will blow the defective goods in the hopper;
Rice packing machine: this rationed automatic weighing packing machine consists of a material box, a packing scale, a sewing machine, and a conveyor belt. It can cooperate work with all the model's rice mill production lines, and also for the packing bags capacity can choose 1-50kg per bag for your needs;
| No. | Name | Model | Power |
| 1 | Single elevator | TDTG20-11*11 | 0.75kw*11 |
| 2 | Combined cleaner destoner | ZQS-90 | 0.25kw*2 |
| 3 | Centrifugal fan | 4-72 | 3kw |
| 4 | Rice huller | MKTG-25 | 5.5kw |
| 5 | Paddy rice separator | MGCZ100*8 | 1.1kw |
| 6 | Emery roller rice mill | MNMS18 | 22kw*2 |
| 7 | Iron roller rice mill | MNMS18 | 15kw |
| 8 | Centrifugal fan | 6-30 | 11kw |
| 9 | Rice polisher | MPG16.5 | 44.5kw |
| 10 | Centrifugal fan | 7.5kw | |
| 11 | Rice color sorter | SX-192 | 9.7kw |
| 12 | Rice grader | MMJP100*3 | 1.1kw |
| 13 | Rice packing machine | DCS-50A | 1.1kw |
1. This 40ton-per-day rice mill plant is a modern design rice milling production line, that uses new technology for machine manufacture, improved processing materials, high working efficiency to make high milled rice rate, less broken rate, high capacity to avoid the rice waste, stable working performance, easy to operate and maintain.
2. This model rice milling machine is designed with one general control box, users can operate the machine's work by operating the control box inside buttons is ok, very easy, and convenient.
3. For this model machine details is flexible, for some parts can be customized according to the client's needs.
4. And all our rice processing machines included in the rice mill plant, we use roasting painting, which can promise environmentally friendly, and also can promise machines are not easy painting broken during delivery and use.

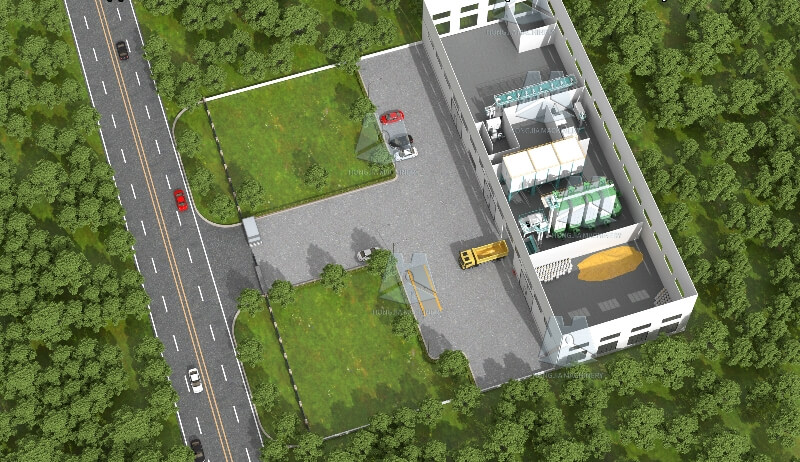

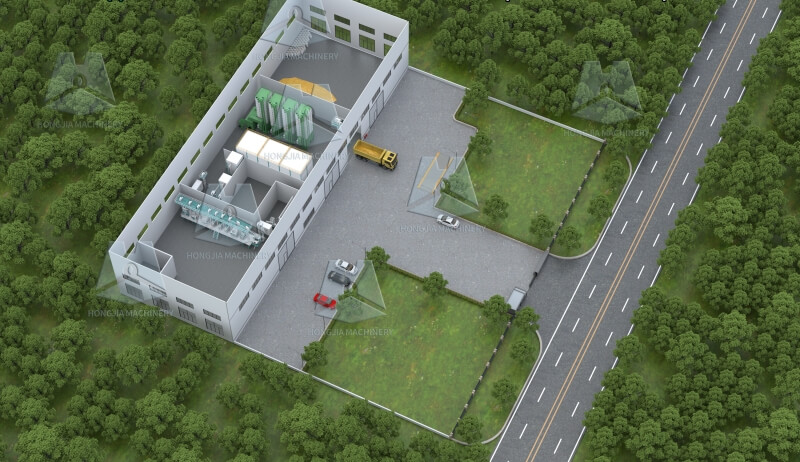

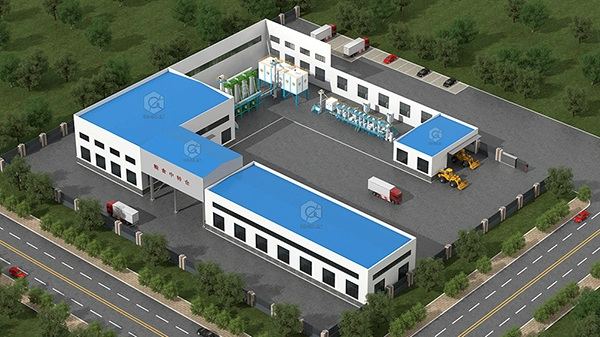

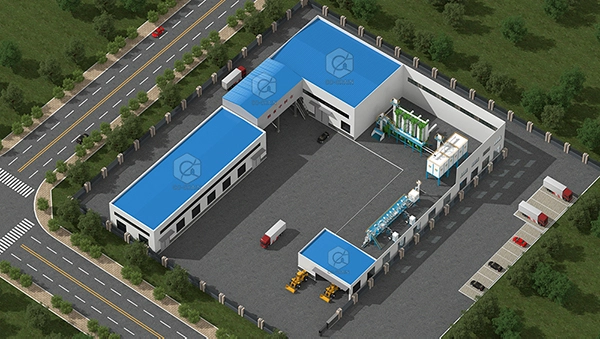

5. This rice mill machine can be designed according to the client's factory site, and also for the working platform, we can design for clients.
6. Whole set rice mill plant is automatically working, one or two workers can operate the whole line.
7. Can do 24-hour continuing work, high working efficiency.
8. All rice processing machines can be customized.
Our rice mill can process steamed rice, white rice, long rice, short rice, glutinous rice, etc. It is very suitable for farmer use, rice process workshop, rice factory, or reselling. Welcome contact us for the details, thanks.
