Double Body Paddy Separator

  • Capacity: 4-10 T/H
  • Power: 2.2-4 Kw
  • Service: Customization, installation, guidance, and training
  • Cooperation: Factory Directly

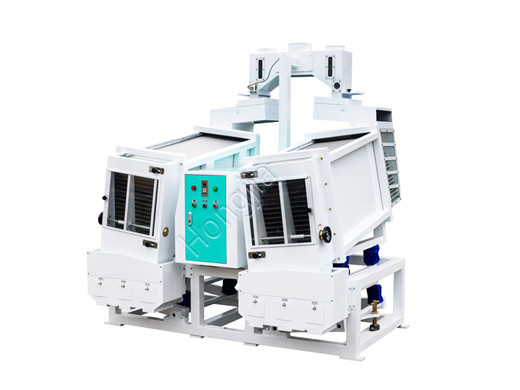

This model double body gravity paddy separator machine is mainly used in the large capacity rice mill production line more than 100ton per day model. It is used for separating the well hulled brown rice and the not well-hulled paddy rice.

Double Body Paddy Rice Separator Machine Introduction

MGCZ series gravity paddy separator machine is mainly used in the large capacity rice mill production line more than 100ton per day model to separate the well-hulled brown rice and the not well-hulled paddy rice.

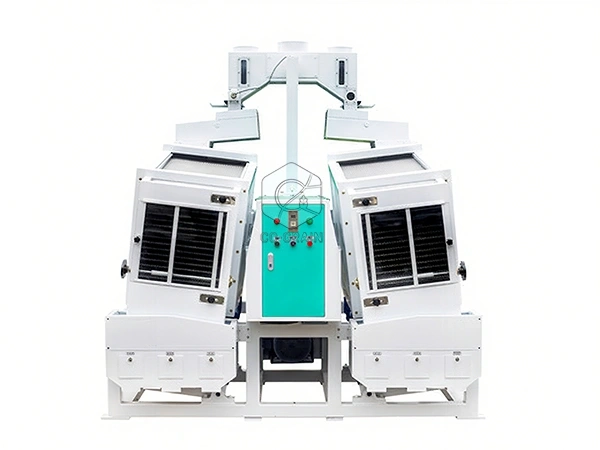

double_paddy_paddy_separator_for_sale

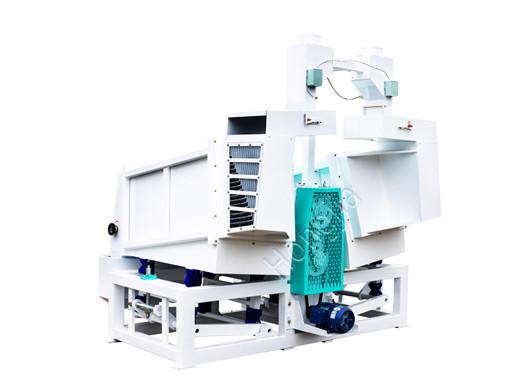

double_paddy_paddy_separator_price

This paddy rice separator is designed with a double body separate screen, the function is the same as the common separator machine, mainly used between the rice huller machine and rice mill machine. And, it designs with many layers of sieves to separate the paddy rice and brown rice then send them into different working steps to be worked.

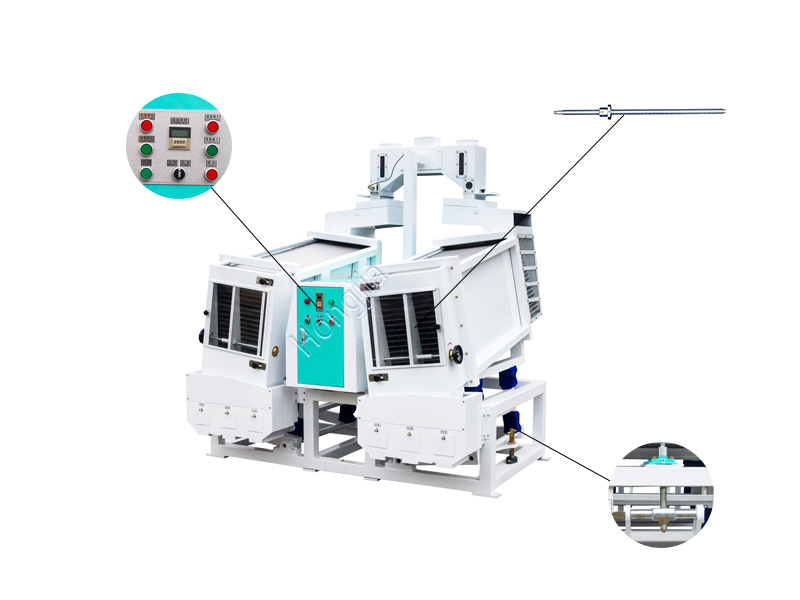

double_paddy_paddy_separator_cost
Make a Quick Inquiry Now !

Double Body Paddy Rice Separator Machine Working Principle

Its working principle makes the paddy rice and brown rice different gravity weights. The paddy rice needs to be well hulled and then feed into the rice mill machine for making white rice. After the rice huller machine, some paddy may not be hulled well, so the paddy rice separator machine will separate these parts out and then send them back to the huller machine to be hulled again, again and again, then the well-hulled brown rice will be feed into the rice mill machine for making white rice.

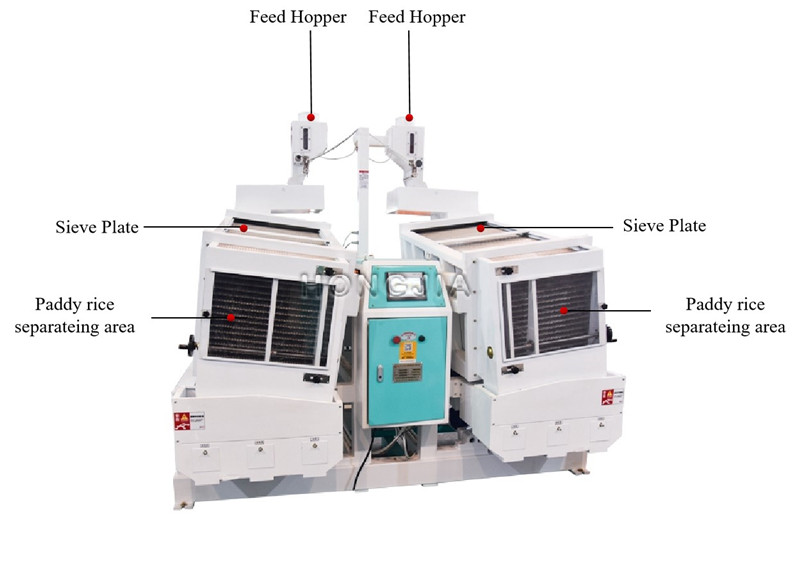

MGCZ_Body_Double_Paddy_Separator_structure
Make a Quick Inquiry Now !

MGCZ Double Gravity Paddy Separator Features

1. Especially designed rack, compact structure, durable, small footprint, exquisite appearance.

2. Double sieve body combination, good balance, smooth operation, stable and reliable performance.

3. High degree of automation, easy and reliable operation.

4. The special process for making plates, good separation effect, wide application range.

5. Screening area is large and high yield.

6. With automatic stop device, high degree of automation, easy and reliable operation.

7. Key components using international brand top configuration, durable.

8. The double body structure, solving the equilibrium problem of gravity sieve, stable, and reliable product performance.

9. With the blade-type swing mechanism and a one-way clutch bearing, the element of life greatly improved.

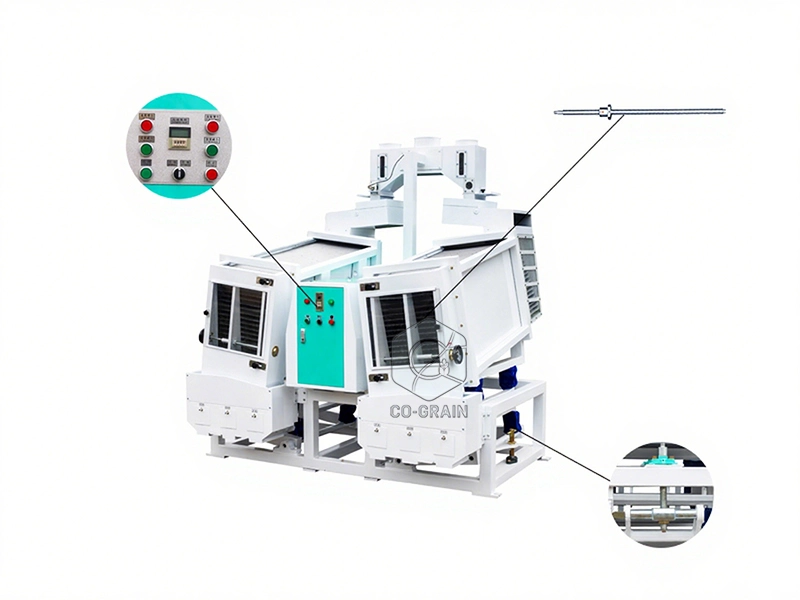

double_paddy_paddy_separator_cost

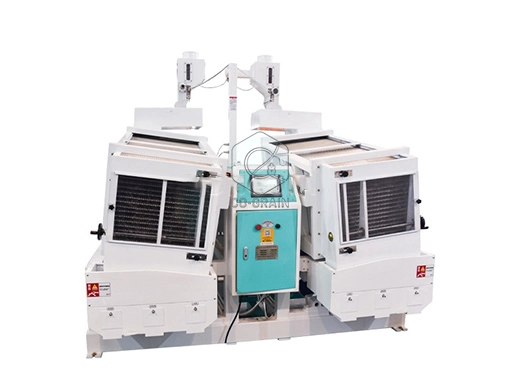

MGCZ_Body_Double_Paddy_Separators

Technical Parameter of Double Body Gravity Paddy Separator:

For the paddy rice separator machine, we have different models with different capacities to be suitable for different client's needs, also if clients have special requirements for the machines, we can customize them for you.

ModelCapacity(t/h)Power(kw)Weight(kg)Dimension(mm)
MGCZ46*20*24-52.211501980*1735*2130
MGCZ50*20*25.5-6.52.212001980*1780*2130
MGCZ60*20*26.5-7.5312502180*1780*2130
MGCZ70*20*27-8313002380*1735*2130
MGCZ80*20*28-10418002580*1735*2130
