Discover the Planar Rotary Sieve, a high-efficiency machine for rice mills, grain storage facilities, and feed plants. Effectively cleans and grades paddy, wheat, corn, soybeans, and other grains, improving quality and production efficiency.

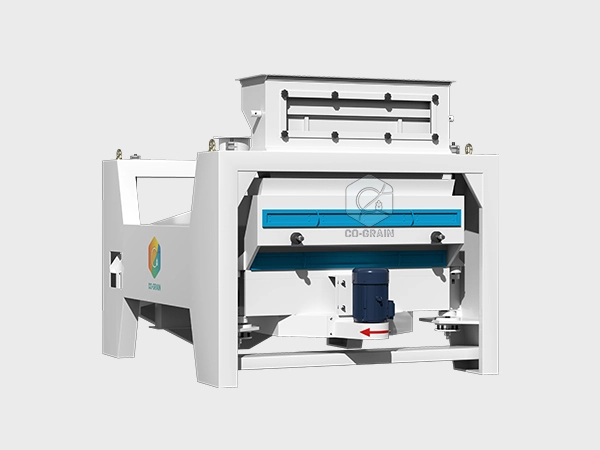

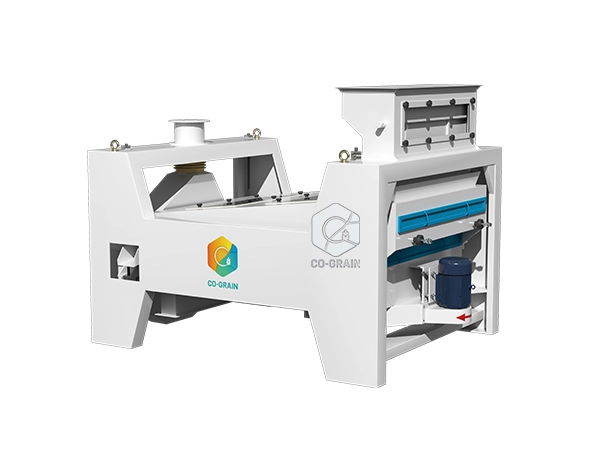

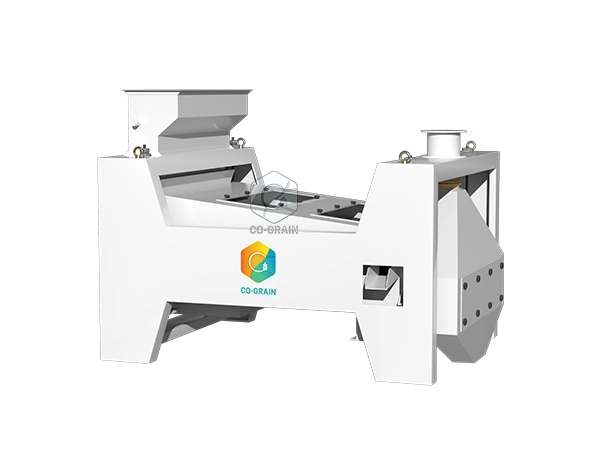

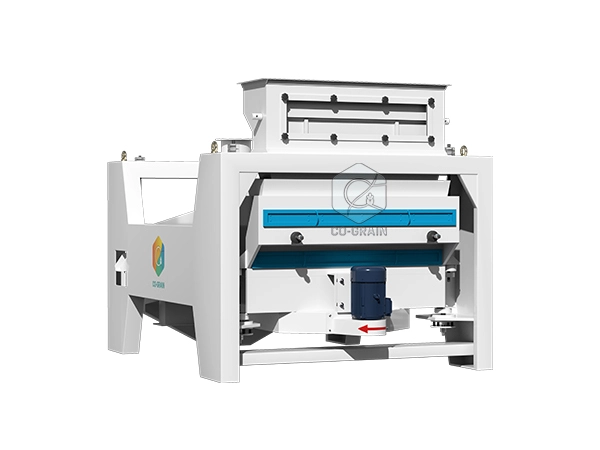

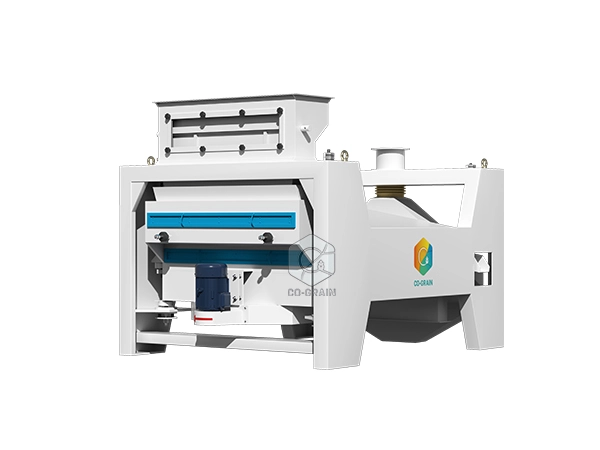

The Planar Rotary Sieve is a high-efficiency grain cleaning and grading machine, widely used in rice mills, grain storage facilities, feed plants, and other grain processing operations. It is designed for thorough cleaning and precise grading of various grains, including paddy, wheat, corn, soybeans, and other cereals.
The machine features a planar rotary motion, allowing grains to pass over multiple screening layers. Larger impurities are removed on the top layers, while smaller impurities, dust, and fine particles are separated on the lower layers. This multi-layer screening ensures uniform processing, consistent product quality, and reduced broken grains.
1. Ideal for Low- to Medium-Capacity Grain Cleaning: Efficiently removes impurities from a variety of grains.
2. Reliable Screen Clamping & Sealing: Stable operation with minimal leakage.
3. Two-Layer Screens: Each layer has two screen panels to accommodate different material cleaning needs.
4. Damping Mechanism Under the Screen: Provides combined circular, elliptical, and linear motion for high cleaning efficiency.
5. Wire Rope Suspension: Convenient and easy adjustment.
6. Observation Window: Allows easy monitoring and cleaning of the screen surface.
7. Uniform Feeding Structure: Ensures even material distribution and optimal screening performance.
8. Customizable Screen Holes: Long or round holes can be selected according to process requirements.
9. Advanced Manufacturing & High-Quality Materials: Ensures durability and reliable performance.
10. Electrostatic Spray Surface Treatment: Provides corrosion resistance and a long-lasting finish.
The Planar Rotary Sieve is widely used in rice mills, grain storage warehouses, feed production plants, and other agricultural processing facilities. It plays a vital role in improving grain quality, reducing contamination, and enhancing overall production efficiency.
| Model | Capacity(t/h) | Power(kw) | Dimension(mm) |
| TQLM100 | 25/8 | 0.75 | 2020*1400*1460 |
| TQLM125 | 32/10 | 0.75 | 2020*1650*1460 |
| TQLM150 | 38/12 | 0.75 | 2020*1900*1460 |
| TQLM180 | 44/14 | 1.1 | 2020*2200*1460 |
| TQLM200 | 50/16 | 1.1 | 2020*2410*1460 |
